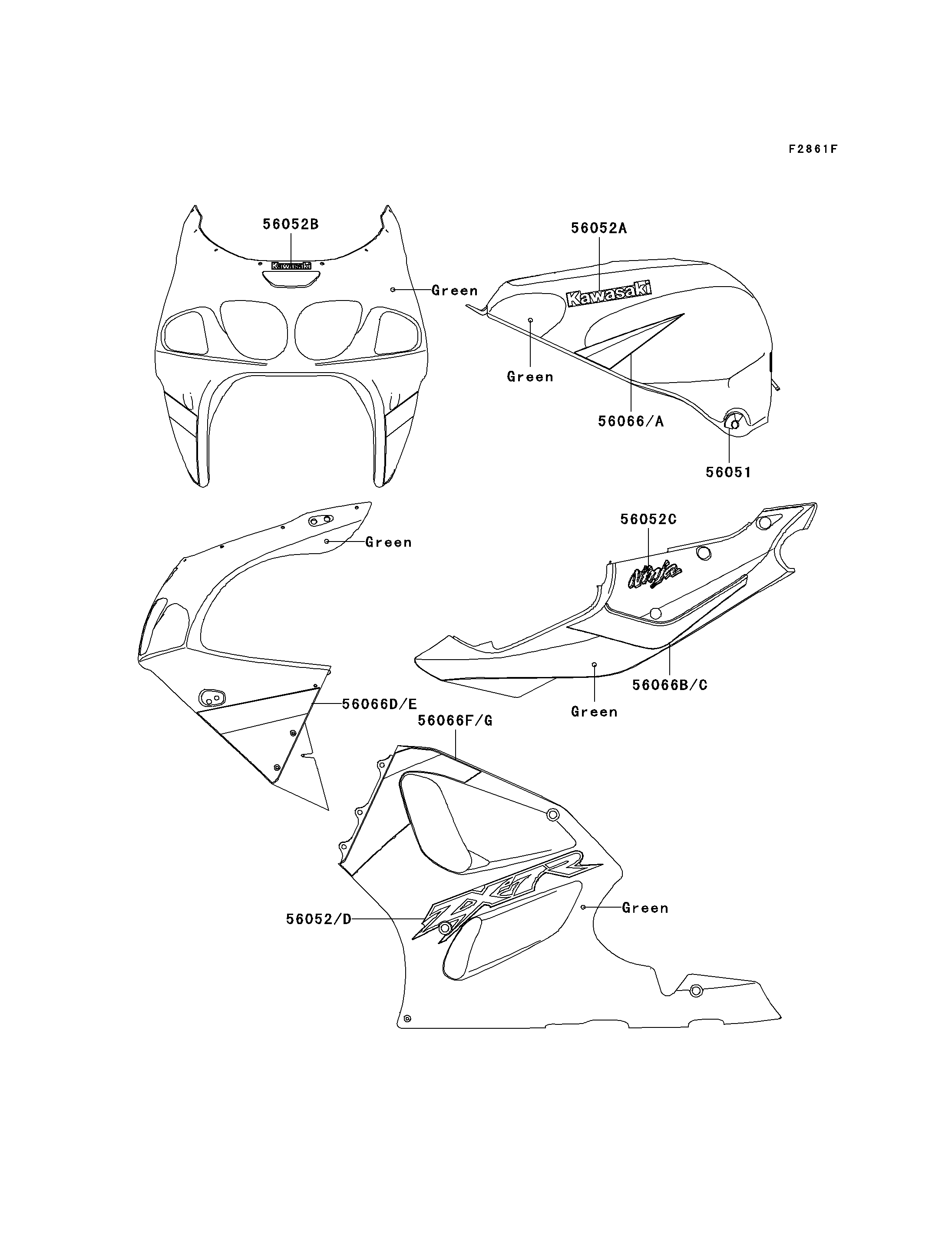

2003 Ninja® ZX™-7R - Decals(Green)(ZX750-P8)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK | 56051 | 56051-1419 | 1 | ||
| MARK,LWR COWLING,RH,ZX-7R | 56052 | 56052-0028 | 1 | ||
| MARK,FUEL TANK,KAWASAKI | 56052A | 56052-0038 | 2 | ||
| MARK,UPP COWLING,KAWASAKI | 56052B | 56052-1606 | 1 | ||
| MARK,SIDE COVER,NINJA | 56052C | 56052-1874 | 2 | ||
| MARK,LWR COWLING,LH,ZX-7R | 56052D | 56052-1875 | 1 | ||
| PATTERN,FUEL TANK,LH | 56066 | 56066-1419 | 1 | ||
| PATTERN,FUEL TANK,RH | 56066A | 56066-1420 | 1 | ||
| PATTERN,SIDE COVER,LH | 56066B | 56066-1421 | 1 | ||
| PATTERN,SIDE COVER,RH | 56066C | 56066-1422 | 1 | ||
| PATTERN,UPP COWLING,LH | 56066D | 56066-1423 | 1 | ||
| PATTERN,UPP COWLING,RH | 56066E | 56066-1424 | 1 | ||
| PATTERN,LWR COWLING,LH | 56066F | 56066-1425 | 1 | ||
| PATTERN,LWR COWLING,RH | 56066G | 56066-1426 | 1 |
| MARK,FUEL TANK | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,RH,ZX-7R | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,KAWASAKI | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,SIDE COVER,NINJA | |
| REF # | 56052C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,LWR COWLING,LH,ZX-7R | |
| REF # | 56052D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56066C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,LH | |
| REF # | 56066D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,RH | |
| REF # | 56066E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,LH | |
| REF # | 56066F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RH | |
| REF # | 56066G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
