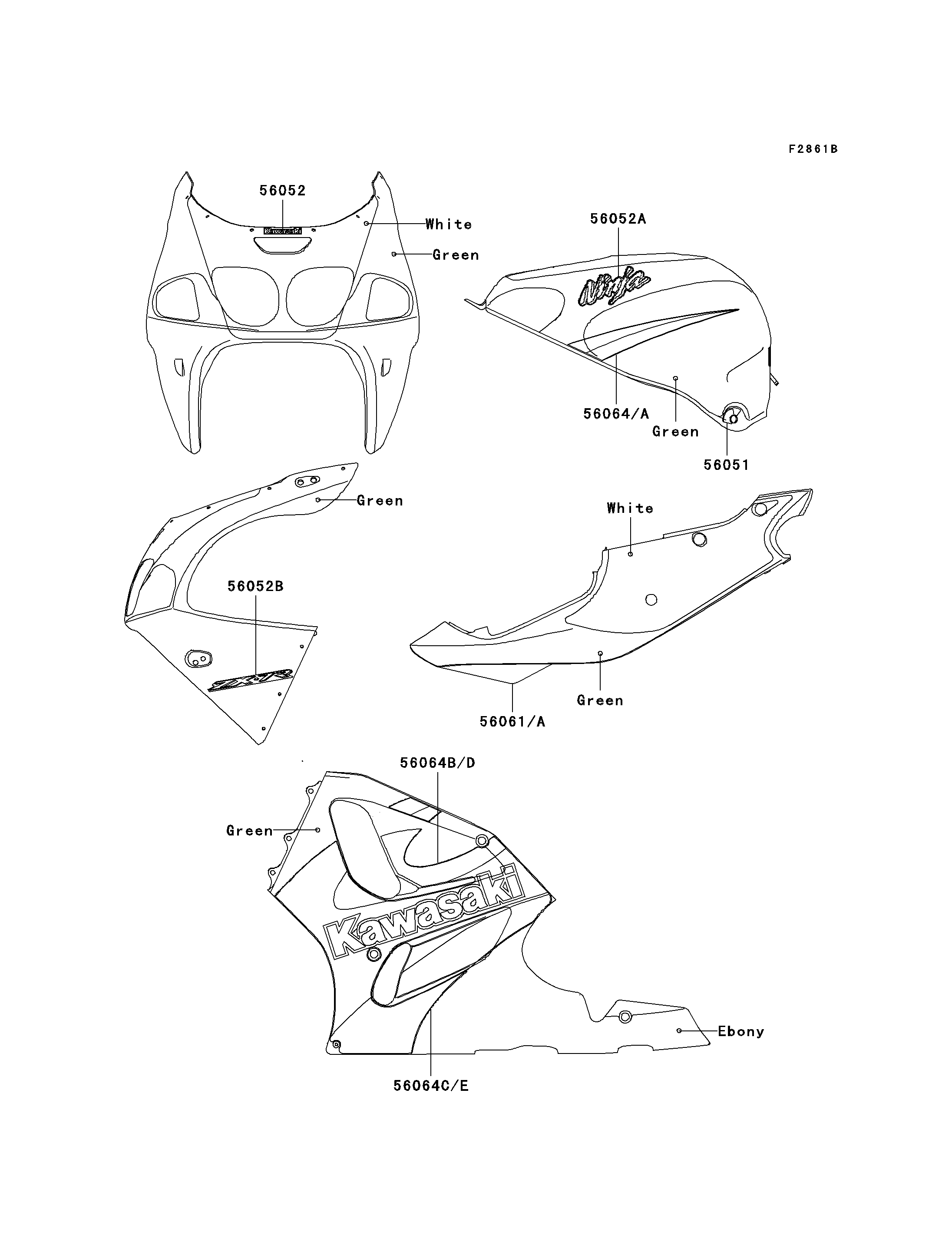

2001 Ninja® ZX™-7R - Decals(Green)(ZX750-P6)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| MARK,FUEL TANK | 56051 | 56051-1419 | 1 | ||
| MARK,UPP COWLING,KAWASAKI | 56052 | 56052-1164 | 1 | ||
| MARK,FUEL TANK,NINJA | 56052A | 56052-1362 | 2 | ||
| MARK,UPP COWLING,ZX-7R | 56052B | 56052-1363 | 2 | ||
| PATTERN,SIDE COVER,LH | 56061 | 56061-1665 | 1 | ||
| PATTERN,SIDE COVER,RH | 56061A | 56061-1666 | 1 | ||
| PATTERN,FUEL TANK,LH | 56064 | 56064-1336 | 1 | ||
| PATTERN,FUEL TANK,RH | 56064A | 56064-1337 | 1 | ||
| PATTERN,LWR COWLING,FR,LH | 56064B | 56064-1338 | 1 | ||
| PATTERN,LWR COWLING,RR,LH | 56064C | 56064-1339 | 1 | ||
| PATTERN,LWR COWLING,FR,RH | 56064D | 56064-1340 | 1 | ||
| PATTERN,LWR COWLING,RR,RH | 56064E | 56064-1341 | 1 |
| MARK,FUEL TANK | |
| REF # | 56051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,KAWASAKI | |
| REF # | 56052 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FUEL TANK,NINJA | |
| REF # | 56052A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,UPP COWLING,ZX-7R | |
| REF # | 56052B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH | |
| REF # | 56061 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH | |
| REF # | 56061A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,LH | |
| REF # | 56064 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,FUEL TANK,RH | |
| REF # | 56064A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,LH | |
| REF # | 56064B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,LH | |
| REF # | 56064C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,FR,RH | |
| REF # | 56064D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,LWR COWLING,RR,RH | |
| REF # | 56064E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
