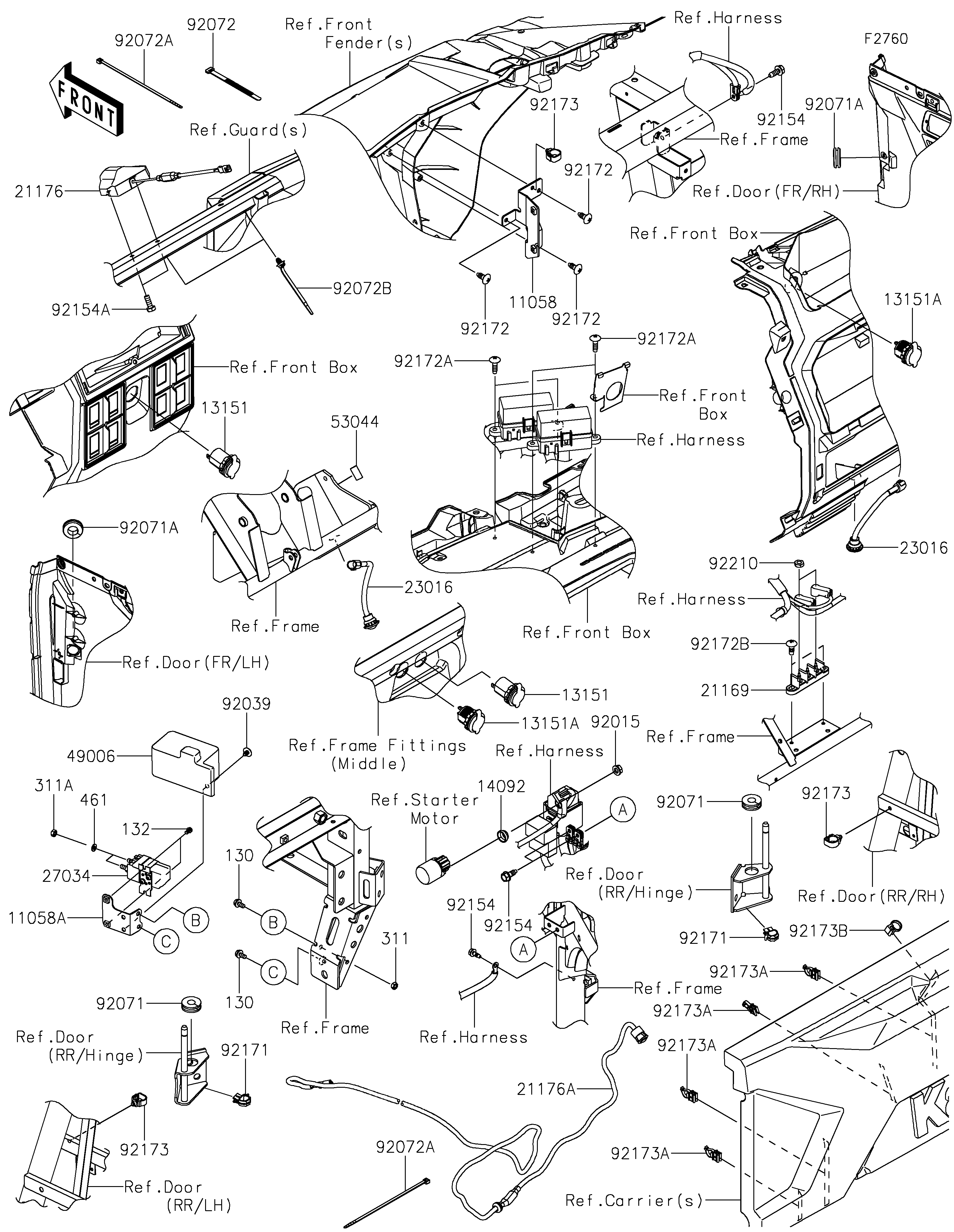

2025 RIDGE® XR CREW LIMITED HVAC - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
13151
13151
13151A
13151A
14092
21169
21176
21176A
23016
23016
27034
49006
53044
92015
92039
92071
92071
92071A
92071A
92072
92072A
92072A
92072B
92154
92154
92154
92154A
92171
92171
92172
92172
92172
92172A
92172A
92172B
92173
92173
92173
92173A
92173A
92173A
92173A
92173B
92210
130
130
132
311
311A
461
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,TERMINAL 11058 11058-1926 1
BRACKET 11058A 11058-4235 1
SWITCH-COMP,OUTLET,12V 13151 13151-0556 2
SWITCH-COMP,USB-SOCKET 13151A 13151-0601 2
COVER,MAGNETIC SW. 14092 14092-0851 1
TERMINAL 21169 21169-0571 1
SENSOR,FR CAMERA 21176 21176-1196 1
SENSOR,RR CAMERA 21176A 21176-1197 1
LAMP-ASSY,FLOOR 23016 23016-0671 2
RELAY 27034 27034-0020 1
BOOT 49006 49006-0679 1
TRIM,L=22 53044 53044-7503 1
NUT,FLANGED,6MM 92015 92015-1367 1
RIVET 92039 92039-0722 1
GROMMET 92071 92071-0029 2
GROMMET 92071A 92071-0847 2
BAND,L=123 92072 92072-030 2
BAND 92072A 92072-0821 11
BAND,OS170-FT7(BLACK) 92072B 92072-1414 2
BOLT,FLANGED,6X16 92154 92154-0551 4
BOLT,FLANGED,6X14 92154A 92154-7323 2
CLAMP,EDGE CLIP 92171 92171-1722 2
SCREW,6X16 92172 92172-0284 3
SCREW,TAPPING,6X20 92172A 92172-0488 4
SCREW,TAPPING,6X16 92172B 92172-0739 2
CLAMP,HOLDER CLIP 92173 92173-0868 3
CLAMP 92173A 92173-2664 4
CLAMP 92173B 92173-2665 1
NUT 92210 92210-1680 2
BOLT-FLANGED,6X12 130 130BA0612 2
BOLT-FLANGED-SMALL,5X8 132 132BA0508 2
NUT-HEX,6MM 311 311AA0600 1
NUT-HEX,6MM 311A 311BA0600 2
WASHER-SPRING,6MM 461 461DA0600 2
