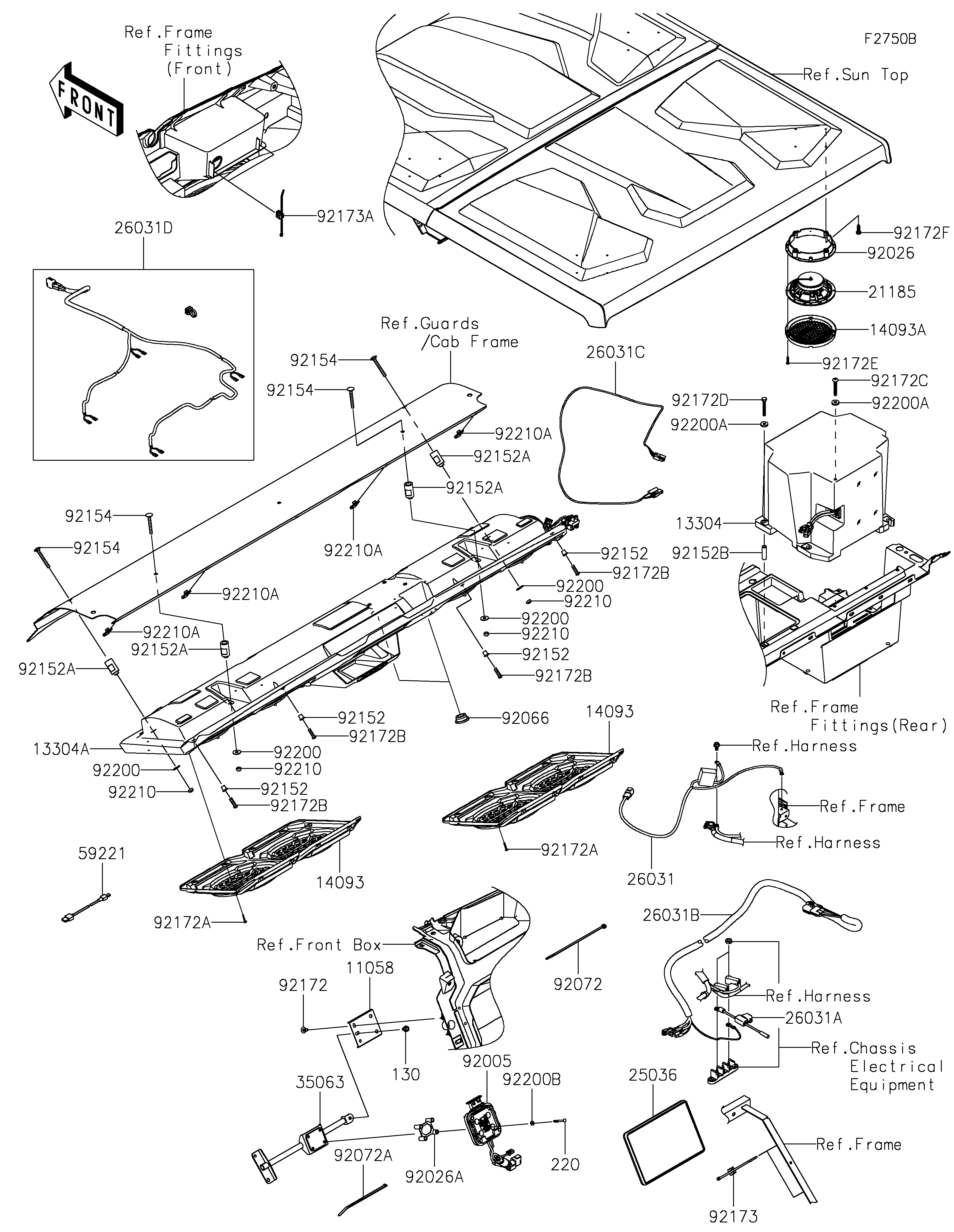

2025 RIDGE® XR CREW LIMITED HVAC - Other(Audio System)(CN)

DOWNLOAD PDF
SELECT A NEW PART
11058
11058
13304
13304
13304A
13304A
14093
14093
14093
14093
14093A
14093A
21185
21185
25036
25036
26031
26031
26031A
26031A
26031B
26031B
26031C
26031C
26031D
26031D
35063
35063
59221
59221
92005
92005
92026
92026
92026A
92026A
92066
92066
92072
92072
92072A
92072A
92152
92152
92152
92152
92152
92152
92152
92152
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152A
92152B
92152B
92154
92154
92154
92154
92154
92154
92154
92154
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172B
92172C
92172C
92172D
92172D
92172E
92172E
92172F
92172F
92173
92173
92173A
92173A
92200
92200
92200
92200
92200
92200
92200
92200
92200A
92200A
92200A
92200A
92200B
92200B
92210
92210
92210
92210
92210
92210
92210
92210
92210A
92210A
92210A
92210A
92210A
92210A
92210A
92210A
130
130
220
220
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,INSTRUMENT PANEL 11058 11058-0876 1 CN
HOUSING-ASSY,SUBWOOFER 13304 13304-0012 1 CN
HOUSING-ASSY 13304A 13304-0013 1 CN
COVER,SPEAKER GRILLE 14093 14093-1502 2 CN
COVER,SPEAKER GRILLE 14093A 14093-1513 4 CN
SPEAKER 21185 21185-0024 4 CN
METER-ASSY-MULTI-FUNCTION 25036 25036-0094 1 CN
HARNESS,AMPLIFIER POWER 26031 26031-4058 1 CN
HARNESS,AUDIO POWER 26031A 26031-4077 1 CN
HARNESS,AUDIO A-PILLAR 26031B 26031-4252 1 CN
HARNESS,SIGNAL 26031C 26031-4395 1 CN
HARNESS,REAR SPEAKER 26031D 26031-4396 1 CN
STAY,DISPLAY 35063 35063-1595 1 CN
CONNECTOR-CORD,USB 59221 59221-0031 1 CN
FITTING,DISPLAY 92005 92005-1460 1 CN
SPACER,SPEAKER 92026 92026-0945 4 CN
SPACER,DISPLAY 92026A 92026-0966 1 CN
PLUG 92066 92066-1587 2 CN
BAND 92072 92072-0821 15 CN 1
BAND,L=292.1 92072A 92072-3509 1 CN
COLLAR 92152 92152-2995 4 CN
COLLAR 92152A 92152-2996 4 CN
COLLAR 92152B 92152-3769 3 CN
BOLT 92154 92154-7149 4 CN
SCREW,6X16 92172 92172-0284 4 CN
SCREW,SPEAKER 92172A 92172-1353 24 CN 2
SCREW 92172B 92172-1481 4 CN
SCREW,6.5X45 92172C 92172-1493 1 CN
SCREW,6X45 92172D 92172-1494 3 CN
SCREW,4.2X25 92172E 92172-1564 16 CN 1
SCREW,6X20 92172F 92172-1657 16 CN 1
CLAMP 92173 92173-2665 2 CN
CLAMP 92173A 92173-2793 2 CN
WASHER 92200 92200-2596 4 CN
WASHER 92200A 92200-2618 4 CN
WASHER,4X9.5X1.2 92200B 92200-2711 4 CN
NUT 92210 92210-1953 4 CN
NUT 92210A 92210-1954 4 CN
BOLT-FLANGED,6X10 130 130BA0610 1 CN
SCREW-PAN-CROS,4X40 220 220AA0440 4 CN
