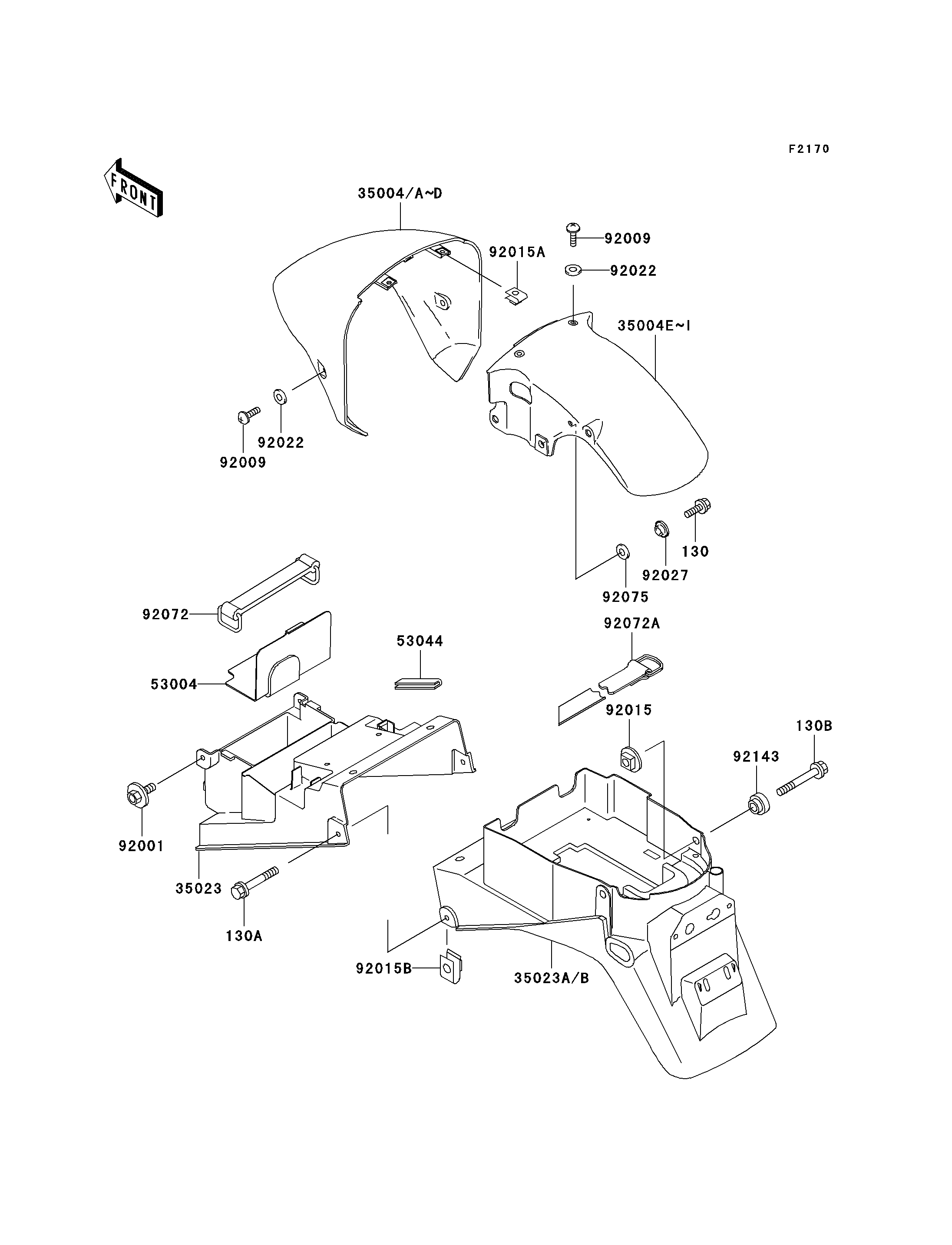

1997 Ninja® ZX™-7R - Fenders

DOWNLOAD PDF
SELECT A NEW PART
130
130A
130B
35004B
35004D
35004G
35004I
35023
53004
53044
92001
92009
92009
92015
92015A
92015B
92022
92022
92027
92072
92075
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X16 130 130H0616 4
BOLT-FLANGED,6X35 130A 130J0635 2
BOLT-FLANGED,6X40,BLACK 130B 130J0640 2
FENDER-FRONT,FR,EBONY 35004B 35004-1333-H8 1
FENDER-FRONT,FR,L.GREEN 35004D 35004-1333-7F 1
FENDER-FRONT,RR,EBONY 35004G 35004-1334-H8 1
FENDER-FRONT,RR,L.GREEN 35004I 35004-1334-7F 1
FENDER-REAR,FR 35023 35023-1427 1
MAT,BATTERY 53004 53004-1109 1
TRIM,L=60 53044 53044-1249 1
BOLT,6X16 92001 92001-1950 2
SCREW,5X16 92009 92009-1654 4
NUT,6MM 92015 92015-1321 2
NUT,5MM 92015A 92015-1573 2
NUT,6MM 92015B 92015-1602 2
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 4
COLLAR,COWLING STAY 92027 92027-1667 4
BAND,L=142.1 92072 92072-006 1
DAMPER 92075 92075-1564 4
COLLAR 92143 92143-1848 2
FENDER-REAR,RR 35023A 35023-1428 1 CNUS
FENDER-REAR,RR 35023B 35023-1430 1 CA
BAND,L=470 92072A 92072-1331 1 CNUS
