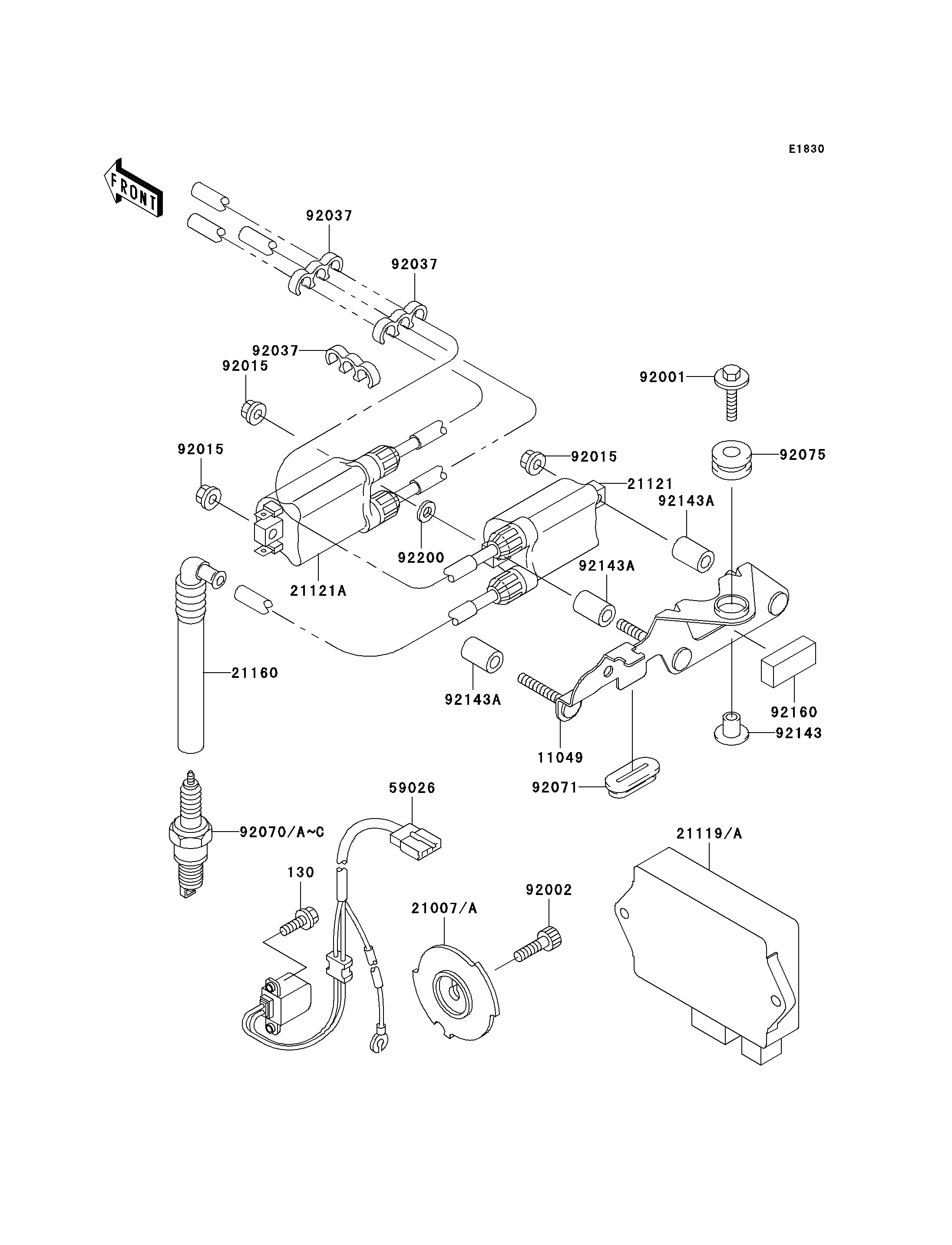

1997 Ninja® ZX™-7R - Ignition System

DOWNLOAD PDF
SELECT A NEW PART
130
11049
21121
21121A
21160
59026
92001
92002
92015
92015
92015
92037
92037
92037
92070
92070A
92070B
92070C
92071
92075
92143
92143A
92143A
92143A
92160
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED 130 130G0512 2
BRACKET,IGNITION 11049 11049-1705 1
COIL-IGNITION,#1&#4 21121 21121-1253 1
COIL-IGNITION,#2&#3 21121A 21121-1255 1
CAP-ASSY-PLUG 21160 21160-1088 4
COIL-PULSING 59026 59026-1104 1
BOLT,6X30 92001 92001-1776 1
BOLT,SOCKET,8X20 92002 92002-1178 1
NUT,FLANGED,6MM 92015 92015-1193 3
CLAMP,TUBE 92037 92037-1941 3
PLUG-SPARK,CR9E(NGK) 92070 92070-1143 4
PLUG-SPARK,U27ESR-N(ND) 92070A 4 (LOCAL PROCUREMENT ITEM)
PLUG-SPARK,CR8E(NGK) 92070B 92070-1169 4 (OPTION)
PLUG-SPARK,U24ESR-N(ND) 92070C 4 (OPTION)
GROMMET 92071 92071-1187 1
DAMPER,MUFFLER FITTING 92075 92075-1857 1
COLLAR 92143 92143-1353 1
COLLAR,6.4X10X20 92143A 92143-1858 3
DAMPER,BRACKET 92160 92160-1736 1
WASHER,6.5X13 92200 92200-1271 1
ROTOR,PULSING 21007 21007-1294 1 CNUS
ROTOR,PULSING 21007A 21007-1295 1 CA
IGNITER 21119 21119-1460 1 CNUS
IGNITER 21119A 21119-1462 1 CA
