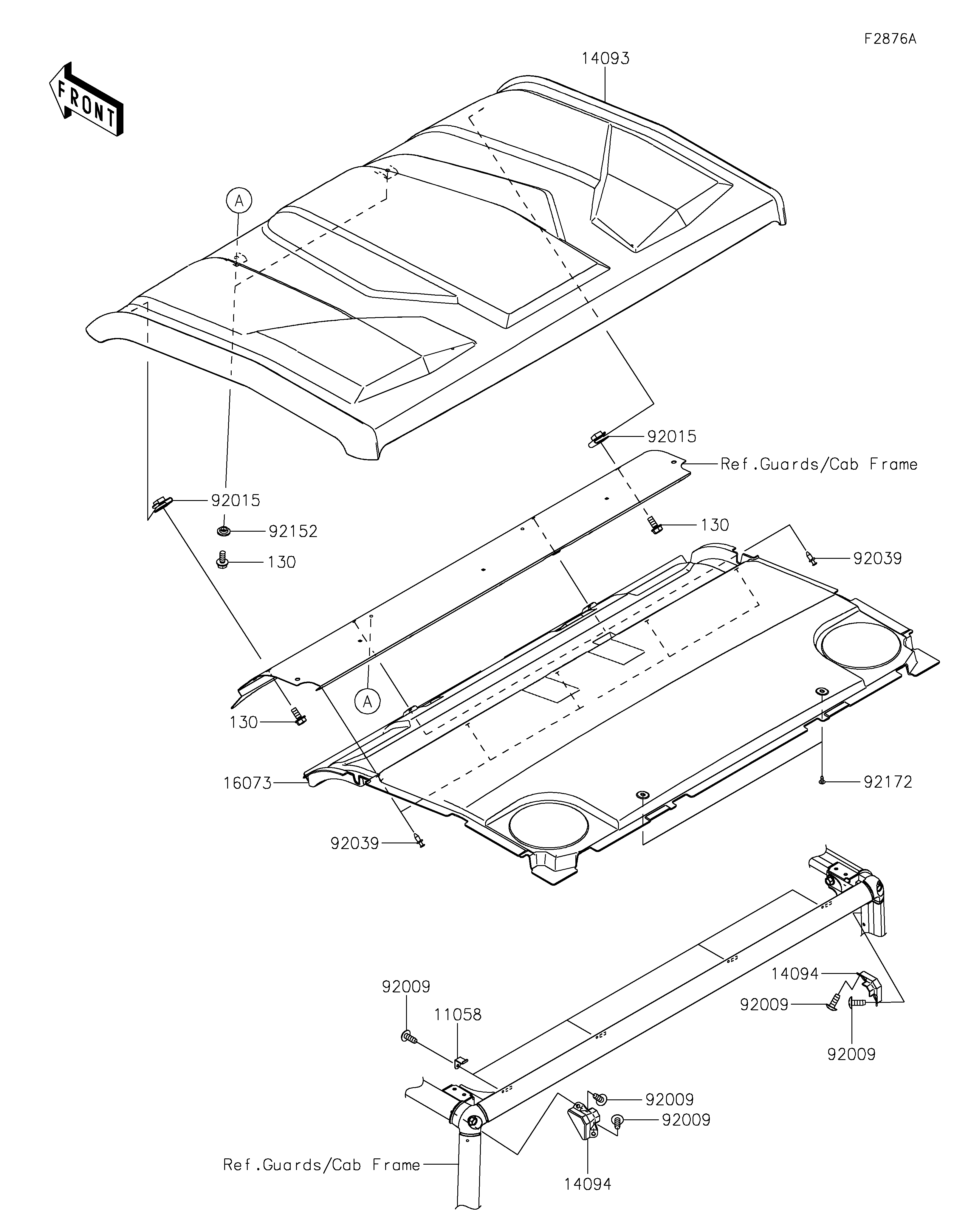

2025 RIDGE® RANCH EDITION - Sun Top(CSFNN/CSFNL)
11058
14093
14094
14094
16073
92009
92009
92009
92009
92009
92015
92015
92039
92039
92152
92172
130
130
130
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,ROOF | 11058 | 11058-0254 | 4 | ||
| COVER,ROOF | 14093 | 14093-1352 | 1 | ||
| COVER,DOOR,CORNER | 14094 | 14094-0146 | 2 | ||
| INSULATOR,ROOF LINING | 16073 | 16073-0988 | 1 | ||
| SCREW,TAPPING,6X16 | 92009 | 92009-1166 | 8 | ||
| NUT,6MM | 92015 | 92015-1602 | 2 | ||
| RIVET | 92039 | 92039-0776 | 7 | ||
| COLLAR,6.3X9.5X4.1 | 92152 | 92152-1571 | 2 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 2 | ||
| BOLT-FLANGED,6X14 | 130 | 130BA0614 | 4 |
