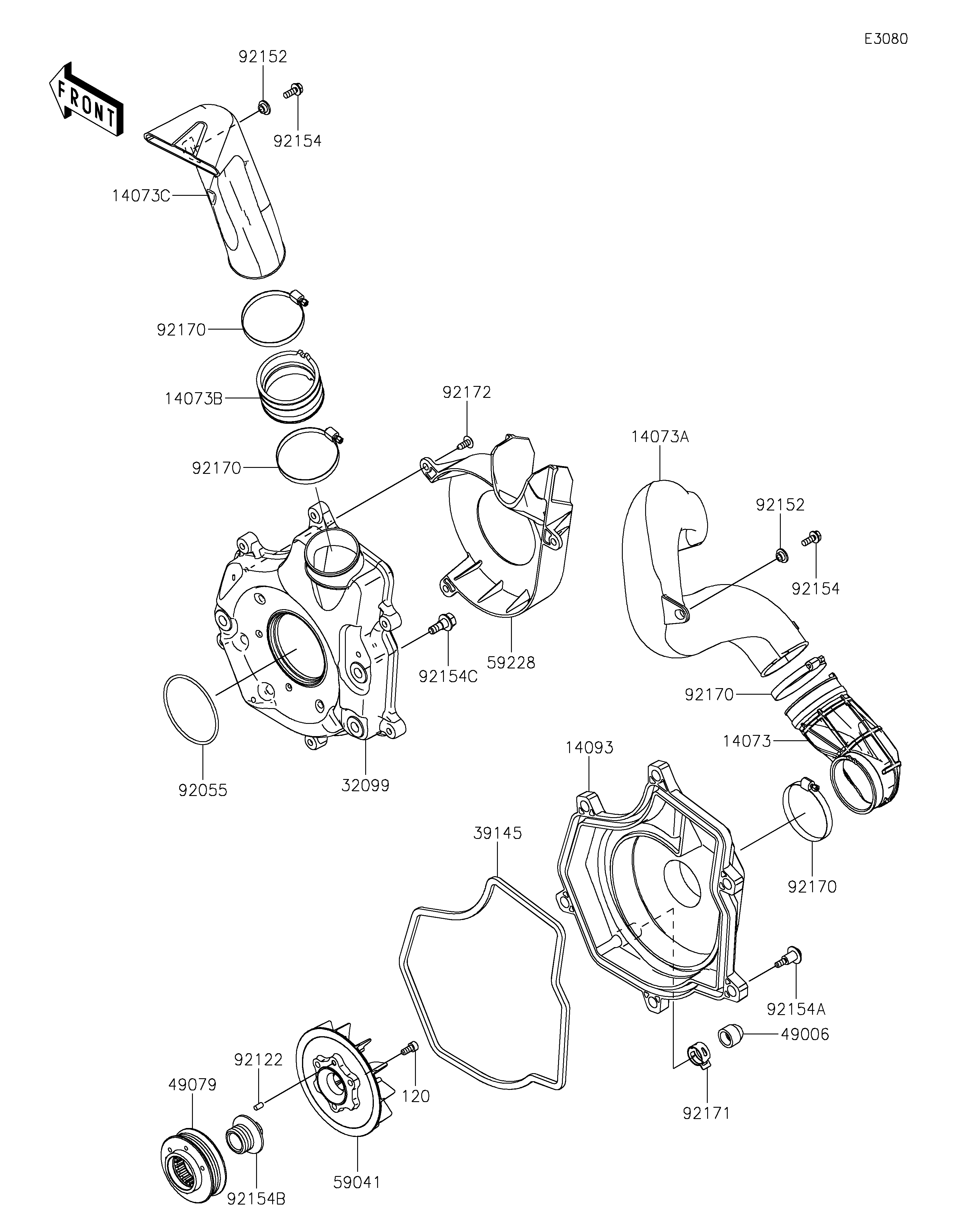

2025 RIDGE® RANCH EDITION - Compressor
14073
14073A
14073B
14073C
14093
32099
39145
49006
49079
59041
59228
92055
92122
92152
92152
92154
92154
92154A
92154B
92154C
92170
92170
92170
92170
92171
92172
120
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DUCT,JOINT INTAKE | 14073 | 14073-1896 | 1 | ||
| DUCT,INTAKE | 14073A | 14073-1897 | 1 | ||
| DUCT,JOINT EXHAUST | 14073B | 14073-1898 | 1 | ||
| DUCT,EXHAUST | 14073C | 14073-1899 | 1 | ||
| COVER,FAN | 14093 | 14093-1389 | 1 | ||
| CASE,FAN | 32099 | 32099-0827 | 1 | ||
| TRIM-SEAL | 39145 | 39145-0754 | 1 | ||
| BOOT,DRAIN | 49006 | 49006-0560 | 1 | ||
| PULLEY-BELT | 49079 | 49079-0030 | 1 | ||
| FAN | 59041 | 59041-0036 | 1 | ||
| LOUVER | 59228 | 59228-0004 | 1 | ||
| RING-O,77.1X3.1 | 92055 | 92055-1740 | 1 | ||
| ROLLER | 92122 | 92122-0569 | 1 | ||
| COLLAR,6.5X10X5.6 | 92152 | 92152-0445 | 2 | ||
| BOLT,FLANGED,6X16 | 92154 | 92154-0887 | 2 | ||
| BOLT,CVT COVER | 92154A | 92154-1522 | 6 | ||
| BOLT,PULLEY | 92154B | 92154-7011 | 1 | ||
| BOLT,FAN CASE | 92154C | 92154-7013 | 3 | ||
| CLAMP | 92170 | 92170-1764 | 4 | ||
| CLAMP | 92171 | 92171-0329 | 1 | ||
| SCREW,6X16 | 92172 | 92172-0284 | 3 | ||
| BOLT-SOCKET,6X14 | 120 | 120CA0614 | 3 |
