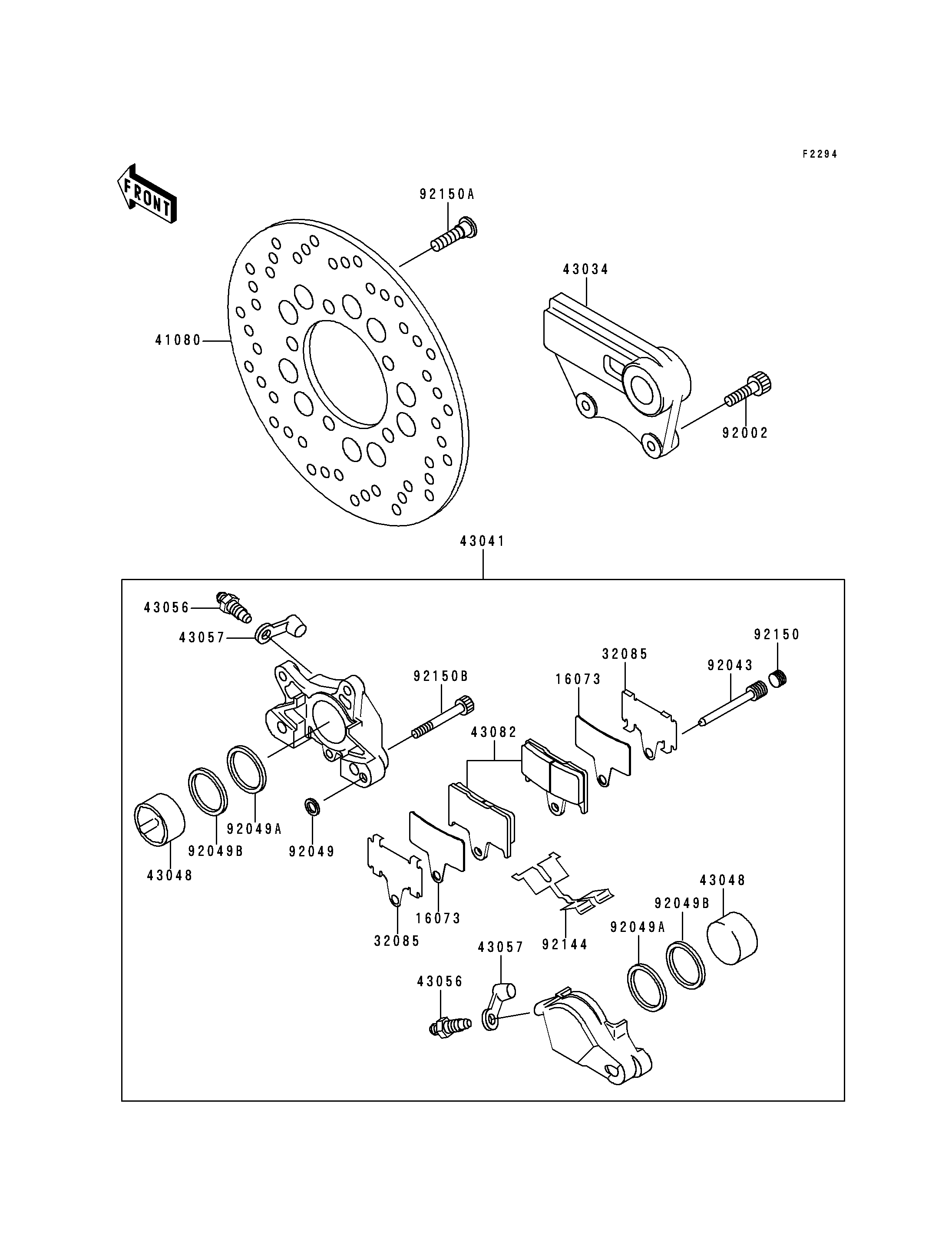

1997 Ninja® ZX™-7RR - Rear Brake

DOWNLOAD PDF
SELECT A NEW PART
16073
16073
32085
32085
41080
43034
43041
43048
43048
43056
43056
43057
43057
43082
92002
92043
92049
92049A
92049A
92049B
92049B
92144
92150
92150A
92150B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
INSULATOR 16073 16073-1105 2
STOPPER 32085 32085-1416 2
DISC,RR,C.GRAY 41080 41080-1242-FB 1
HOLDER-BRAKE,REAR CALIPER 43034 43034-1137 1
CALIPER-ASSY,RR 43041 43041-1586 1
PISTON-CALIPER 43048 43048-1077 2
BREATHER-BRAKE 43056 43056-1055 2
CAP-BREATHER 43057 43057-1001 2
PAD-ASSY-BRAKE 43082 43082-1182 1
BOLT,SOCKET,8X25 92002 92002-1442 2
PIN,HANGER 92043 92043-1520 1
SEAL-OIL 92049 92049-1448 1
SEAL-OIL 92049A 92049-1449 2
SEAL-OIL 92049B 92049-1450 2
SPRING,PAD 92144 92144-1902 1
BOLT,PLUG 92150 92150-1692 1
BOLT,SOCKET,8X30 92150A 92150-1771 5
BOLT 92150B 92150-1972 2
