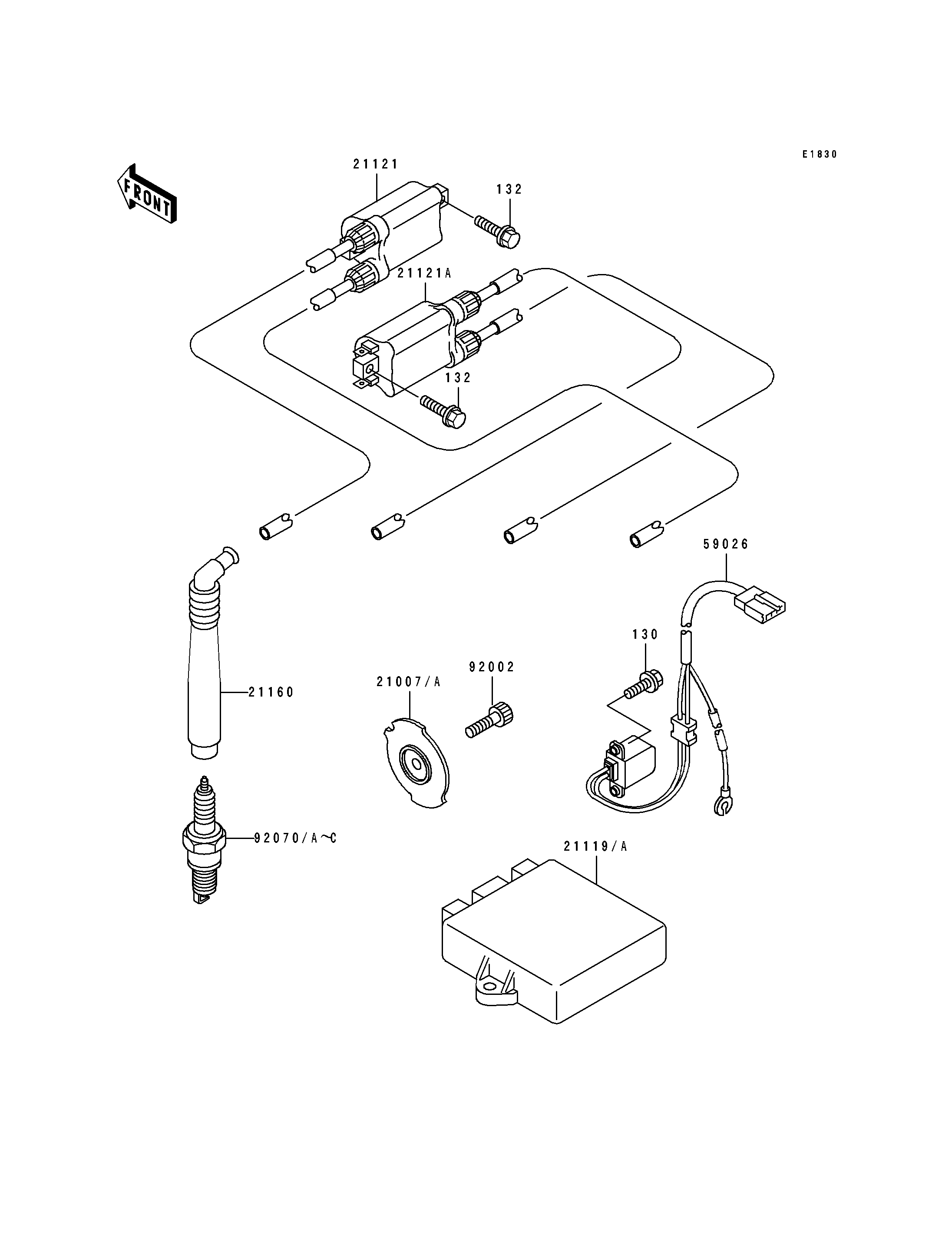

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| ROTOR,PULSING | 21007 | 21007-1222 | 1 | US | |
| ROTOR,PULSING | 21007A | 21007-1227 | 1 | CA | |
| IGNITER | 21119 | 21119-1366 | 1 | US | |
| IGNITER | 21119A | 21119-1367 | 1 | CA | |
| COIL-IGNITION,#1 | 21121 | 21121-1218 | 1 | ||
| COIL-IGNITION,#2 | 21121A | 21121-1219 | 1 | ||
| CAP-ASSY-PLUG | 21160 | 21160-1086 | 4 | ||
| COIL-PULSING | 59026 | 59026-1104 | 1 | ||
| BOLT,SOCKET,8X20 | 92002 | 92002-1178 | 1 | ||
| PLUG-SPARK,CR9E(NGK) | 92070 | 92070-1143 | 4 | ||
| PLUG-SPARK,U27ESR-N(ND) | 92070A | 4 | (LOCAL PROCUREMENT ITEM) | ||
| PLUG-SPARK,CR8E(NGK) | 92070B | 92070-1169 | 4 | (OPTION) | |
| PLUG-SPARK,U24ESR-N(ND) | 92070C | 4 | (OPTION) | ||
| BOLT-FLANGED | 130 | 130G0512 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132G0625 | 4 |
