Parts Diagrams |

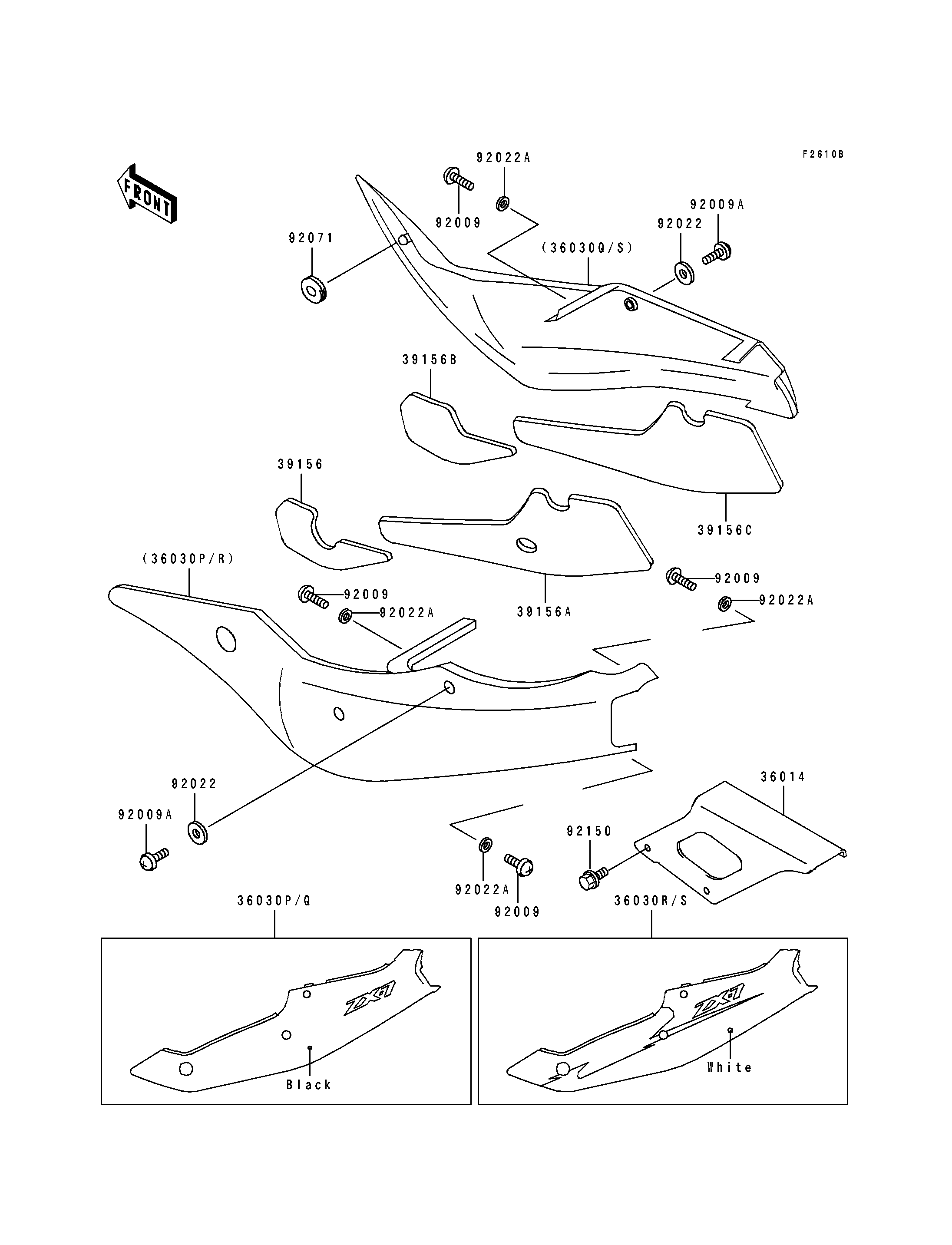

1995 Ninja® ZX™-7 - Side Covers/Chain Cover(ZX750-L3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CASE-CHAIN | 36014 | 36014-1176 | 1 | ||
| COVER-SIDE,LH,P.P.BLACK MICA | 36030P | 36030-5405-20 | 1 | ||
| COVER-SIDE,RH,P.P.BLACK MICA | 36030Q | 36030-5406-20 | 1 | ||
| COVER-SIDE,LH,P.A.WHITE | 36030R | 36030-5407-R1 | 1 | ||
| COVER-SIDE,RH,P.A.WHITE | 36030S | 36030-5408-R1 | 1 | ||
| PAD,SIDE COVER,LH,FR | 39156 | 39156-1316 | 1 | ||
| PAD,SIDE COVER,LH,RR | 39156A | 39156-1317 | 1 | ||
| PAD,SIDE COVER,RH,FR | 39156B | 39156-1318 | 1 | ||
| PAD,SIDE COVER,RH,RR | 39156C | 39156-1319 | 1 | ||
| SCREW,5X16 | 92009 | 92009-1654 | 6 | ||
| SCREW,6X14 | 92009A | 92009-1662 | 2 | ||
| WASHER,6.5X16X1 | 92022 | 92022-1143 | 2 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022A | 92022-1521 | 6 | ||
| GROMMET | 92071 | 92071-1043 | 2 | ||
| BOLT,FLANGED,6X12 | 92150 | 92150-1235 | 2 |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,P.P.BLACK MICA | |
| REF # | 36030P |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,P.P.BLACK MICA | |
| REF # | 36030Q |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,P.A.WHITE | |
| REF # | 36030R |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,P.A.WHITE | |
| REF # | 36030S |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,LH,FR | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,LH,RR | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH,FR | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH,RR | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X12 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
