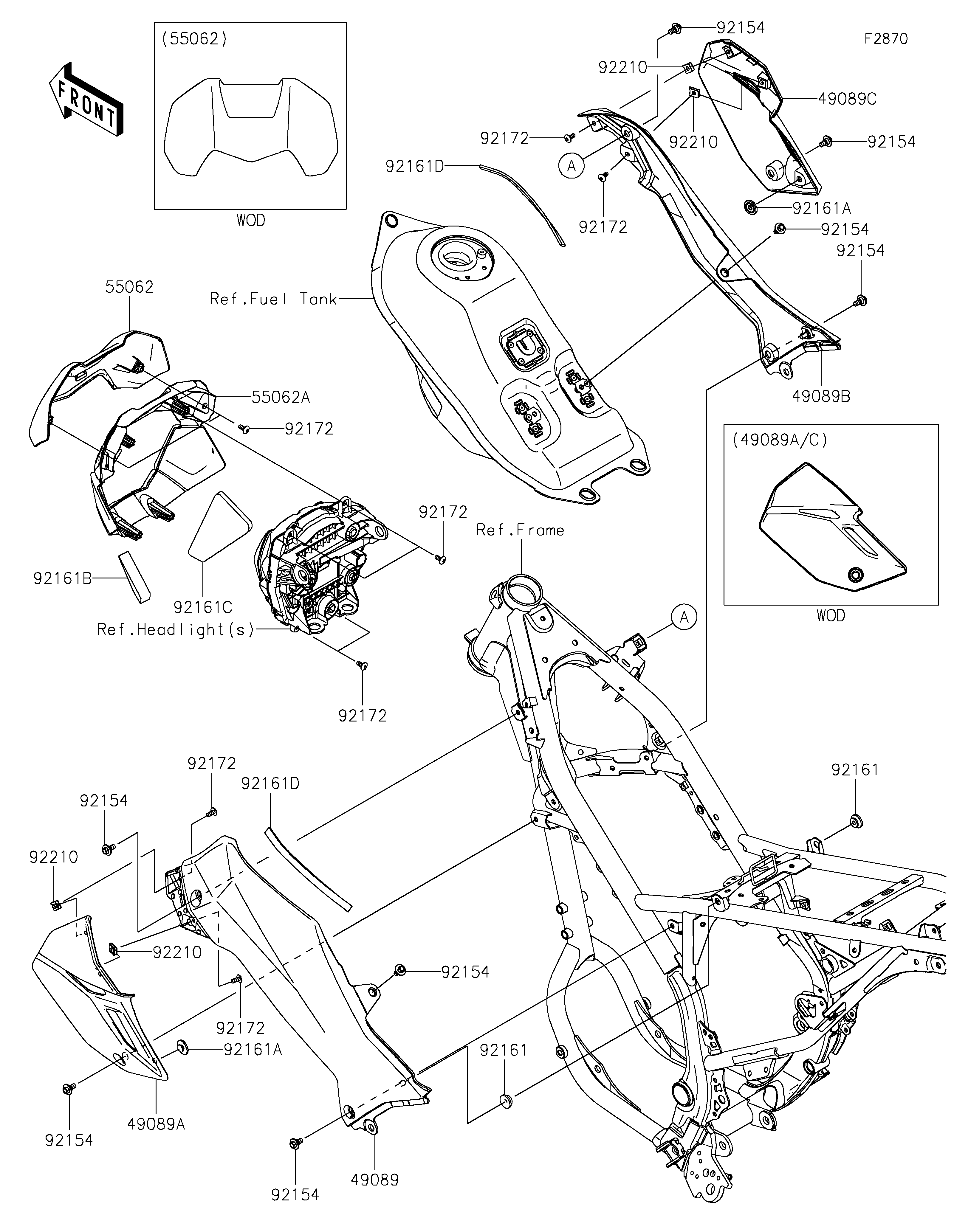

Parts Diagrams
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
OWNER CENTER |
Welcome, Kawasaki owners. Access the information and tools you need to get the most out of your vehicle.
Parts Diagrams |
49089
49089A
49089B
49089C
55062
55062A
92154
92154
92154
92154
92154
92154
92154
92154
92161
92161
92161A
92161A
92161B
92161C
92161D
92161D
92172
92172
92172
92172
92172
92172
92172
92210
92210
92210
92210
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SHROUD-ENGINE,LH,UPP,M.C.GRAY | 49089 | 49089-1200-67K | 1 | ||
| SHROUD-ENGINE,LH,LWR,M.C.GRAY | 49089A | 49089-1201-67K | 1 | ||
| SHROUD-ENGINE,RH,UPP,M.C.GRAY | 49089B | 49089-1202-67K | 1 | ||
| SHROUD-ENGINE,RH,LWR,M.C.GRAY | 49089C | 49089-1203-67K | 1 | ||
| COVER-HEAD LAMP,UPP,M.C.GRAY | 55062 | 55062-0003-67K | 1 | ||
| COVER-HEAD LAMP,LWR,M.C.GRAY | 55062A | 55062-0004-67K | 1 | ||
| BOLT,FLANGED,6X9 | 92154 | 92154-7185 | 8 | ||
| DAMPER | 92161 | 92161-1531 | 2 | ||
| DAMPER | 92161A | 92161-2547 | 2 | ||
| DAMPER,HEAD LAMP COVER,LH | 92161B | 92161-2735 | 1 | ||
| DAMPER,HEAD LAMP COVER,RH | 92161C | 92161-2736 | 1 | ||
| DAMPER,10X180X3 | 92161D | 92161-2737 | 2 | ||
| SCREW,5X12 | 92172 | 92172-1095 | 10 | ||
| NUT,CLIP,5MM | 92210 | 92210-1666 | 4 |
| SHROUD-ENGINE,LH,UPP,M.C.GRAY | |
| REF # | 49089 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,LH,LWR,M.C.GRAY | |
| REF # | 49089A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,UPP,M.C.GRAY | |
| REF # | 49089B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHROUD-ENGINE,RH,LWR,M.C.GRAY | |
| REF # | 49089C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-HEAD LAMP,UPP,M.C.GRAY | |
| REF # | 55062 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-HEAD LAMP,LWR,M.C.GRAY | |
| REF # | 55062A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X9 | |
| REF # | 92154 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92161A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,HEAD LAMP COVER,LH | |
| REF # | 92161B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,HEAD LAMP COVER,RH | |
| REF # | 92161C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,10X180X3 | |
| REF # | 92161D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X12 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| NUT,CLIP,5MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
