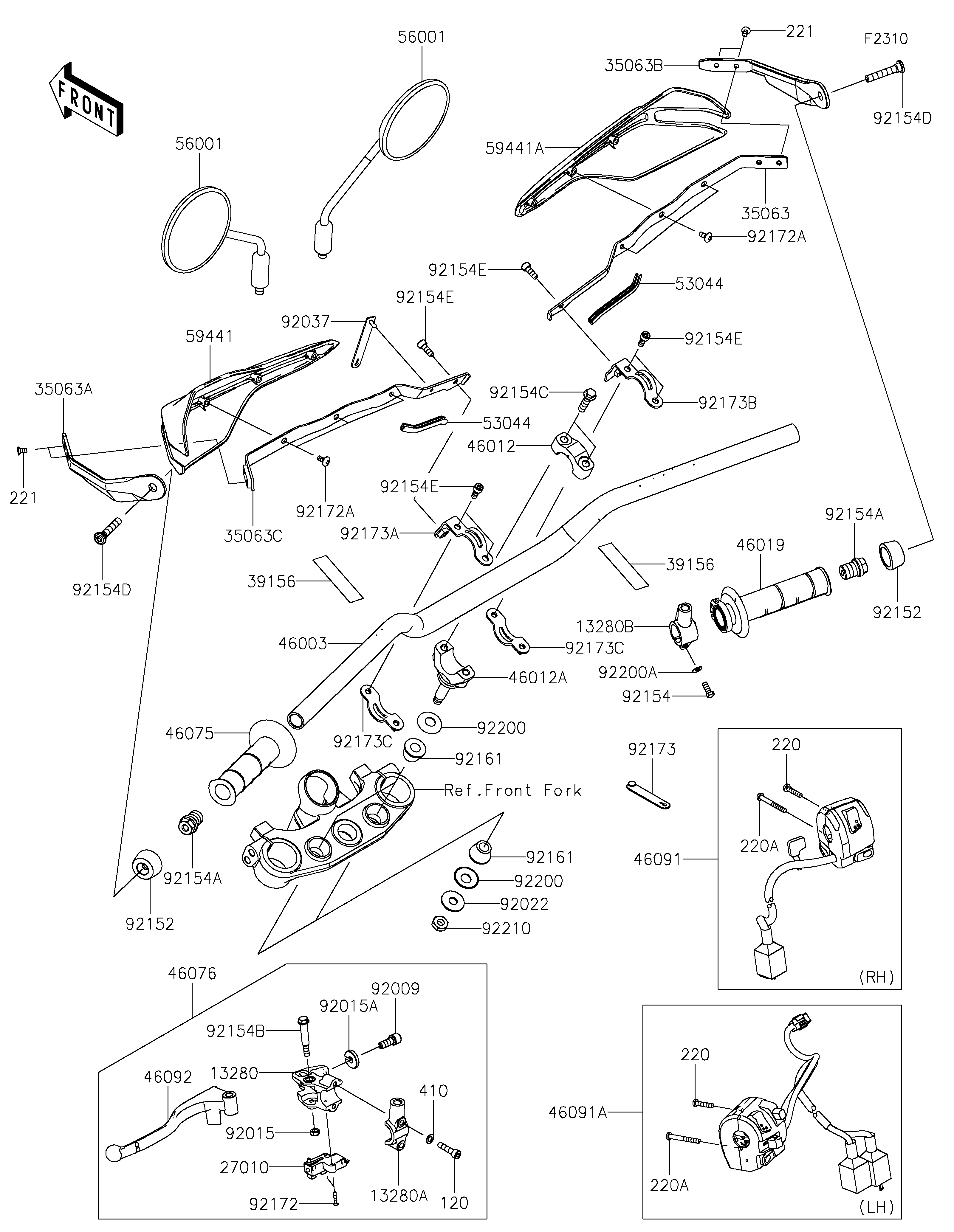

2026 KLX®230 DF ABS - Handlebar

DOWNLOAD PDF
SELECT A NEW PART
13280
13280
13280A
13280A
13280B
13280B
27010
27010
35063
35063
35063A
35063A
35063B
35063B
35063C
35063C
39156
39156
39156
39156
46003
46003
46012
46012
46012A
46012A
46019
46019
46075
46075
46076
46076
46091
46091
46091A
46091A
46092
46092
53044
53044
53044
53044
56001
56001
56001
56001
59441
59441
59441A
59441A
92009
92009
92015
92015
92015A
92015A
92022
92022
92037
92037
92152
92152
92152
92152
92154
92154
92154A
92154A
92154A
92154A
92154B
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92154E
92161
92161
92161
92161
92172
92172
92172A
92172A
92172A
92172A
92173
92173
92173A
92173A
92173B
92173B
92173C
92173C
92173C
92173C
92200
92200
92200
92200
92200A
92200A
92210
92210
120
120
220
220
220
220
220A
220A
220A
220A
221
221
221
221
410
410
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,LEVER 13280 13280-0929 1
HOLDER,MIRROR 13280A 13280-0930 1
HOLDER,MIRROR 13280B 13280-1000 1
SWITCH,CLUTCH 27010 27010-0729 1
STAY,HANDLE COVER,RH 35063 35063-1616 1
STAY,HANDLE COVER,SIDE,LH 35063A 35063-1663 1
STAY,HANDLE COVER,SIDE,RH 35063B 35063-1664 1
STAY,HANDLE COVER,LH 35063C 35063-1665 1
PAD,89X18 39156 39156-2968 2
HANDLE,FAT TYPE BAR 46003 46003-0860 1
HOLDER-HANDLE,UPP,F.S.BLACK 46012 46012-0449-18R 2
HOLDER-HANDLE,LWR,F.S.BLACK 46012A 46012-0450-18R 2
GRIP-ASSY,THROTTLE 46019 46019-0129 1
GRIP,LH 46075 46075-0692 1
LEVER-ASSY-GRIP,CLUTCH 46076 46076-0206 1
HOUSING-ASSY-CONTROL,RH 46091 46091-0687 1
HOUSING-ASSY-CONTROL,LH 46091A 46091-0717 1
LEVER-GRIP,CLUTCH 46092 46092-0591 1
TRIM,L=85 53044 53044-0556 2
MIRROR-ASSY 56001 56001-0419 2
COVER-HANDLE,LH,M.C.GRAY 59441 59441-0313-67K 1
COVER-HANDLE,RH,M.C.GRAY 59441A 59441-0314-67K 1
SCREW,CABLE ADJUST,8MM,BLACK 92009 92009-1134 1
NUT,LOCK,6MM,BLACK 92015 92015-1191 1
NUT,CABLE ADJUST LOCK,8MM,BLK 92015A 92015-1197 1
WASHER,10.2X28X2 92022 92022-1088 2
CLAMP,SPEED,L=80.5 92037 92037-1903 1
COLLAR 92152 92152-3982 2
BOLT,UPSET,6X22 92154 92154-1422 1
BOLT,17X18 92154A 92154-1902 2
BOLT,FLANGED,6X44 92154B 92154-2331 1
BOLT,FLANGED,8X30 92154C 92154-2655 4
BOLT,BAR END 92154D 92154-7319 2
BOLT,SOCKET,6X16 92154E 92154-7346 6
DAMPER,12X26X19 92161 92161-2116 4
SCREW,3X16 92172 92172-0183 2
SCREW,5X12 92172A 92172-0857 6
CLAMP 92173 92173-2199 1
CLAMP,HANDLE,UPP,LH 92173A 92173-2845 1
CLAMP,HANDLE,UPP,RH 92173B 92173-2846 1
CLAMP,HANDLE,LWR 92173C 92173-2847 2
WASHER,12.5X27.6X1.2 92200 92200-0872 4
WASHER,6.5X11.5X0.8 92200A 92200-0947 1
NUT,LOCK,10MM 92210 92210-1672 2
BOLT-SOCKET,6X25 120 120CB0625 2
SCREW-PAN-CROS,5X22 220 220AB0522 2
SCREW-PAN-CROS,5X40 220A 220AB0540 2
SCREW-CSK-CROS,5X10 221 221AB0510 4
WASHER-PLAIN-SMALL,6MM 410 410AB0600 2
