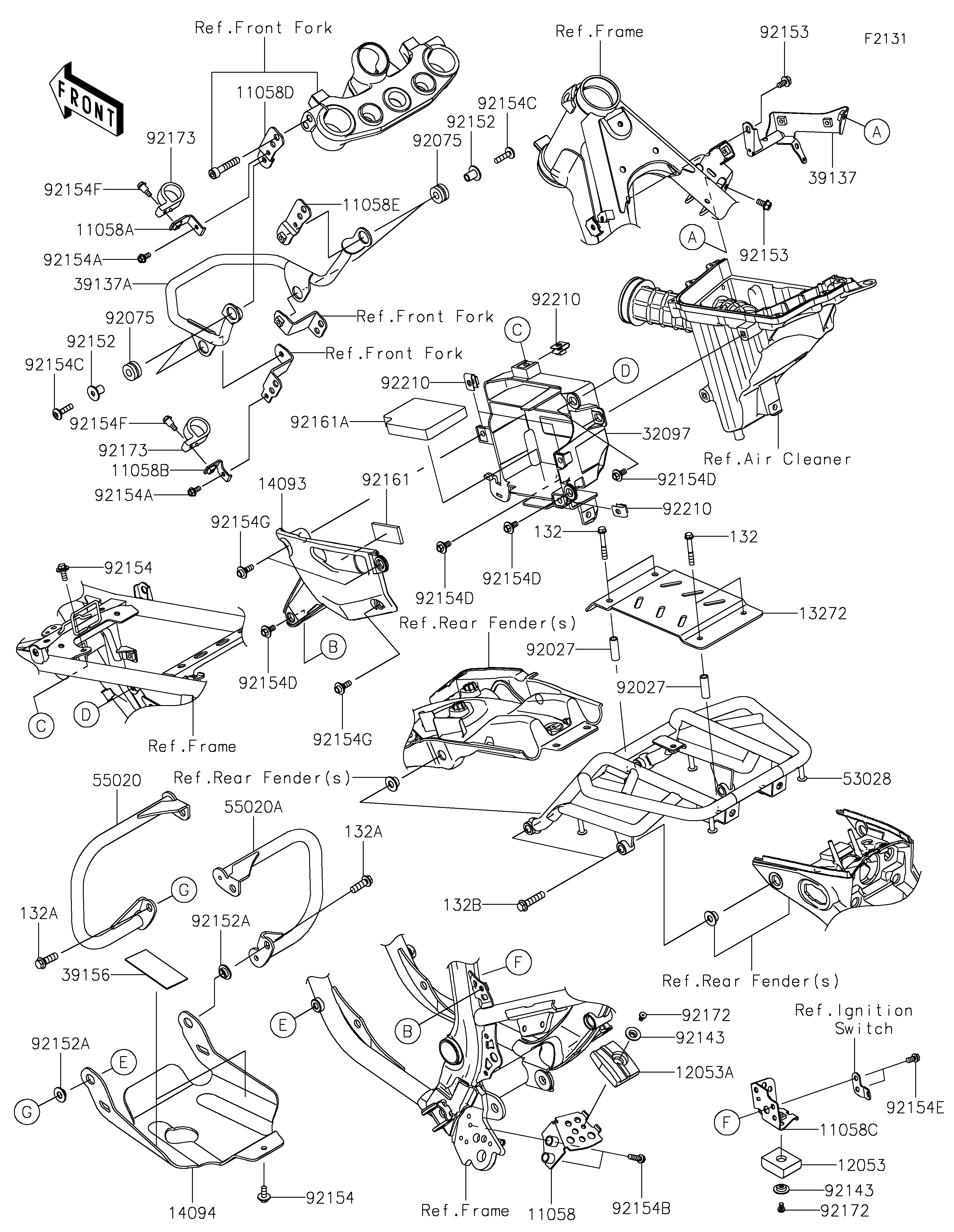

2026 KLX®230 DF ABS - Frame Fittings

DOWNLOAD PDF
SELECT A NEW PART
11058
11058A
11058B
11058C
11058D
11058E
12053
12053A
13272
14093
14094
32097
39137
39137A
39156
53028
55020
55020A
92027
92027
92075
92075
92143
92143
92152
92152
92152A
92152A
92153
92153
92154
92154
92154A
92154A
92154B
92154C
92154C
92154D
92154D
92154D
92154D
92154E
92154F
92154F
92154G
92154G
92161
92161A
92172
92172
92173
92173
92210
92210
92210
132
132
132A
132A
132B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR 11058 11058-0854 1
BRACKET,UPP 11058A 11058-2292 1
BRACKET,LWR 11058B 11058-2293 1
BRACKET,UPP 11058C 11058-4020 1
BRACKET,UPP,LH 11058D 11058-4096 1
BRACKET,UPP,RH 11058E 11058-4097 1
GUIDE-CHAIN,UPP 12053 12053-0270 1
GUIDE-CHAIN,LWR 12053A 12053-0271 1
PLATE 13272 13272-2731 1
COVER,BATTERY CASE 14093 14093-1562 1
COVER,SKID PLATE 14094 14094-0295 1
CASE-BATTERY 32097 32097-0571 1
STAY-COMP,REGULATOR,F.S.BLACK 39137 39137-0753-18R 1
STAY-COMP,HEAD LAMP,F.S.BLACK 39137A 39137-0781-18R 1
PAD,85X35X1 39156 39156-2976 2
CARRIER-ASSY 53028 53028-0008 1
GUARD,LH,F.S.BLACK 55020 55020-2562-18R 1
GUARD,RH,F.S.BLACK 55020A 55020-2563-18R 1
COLLAR,6.8X10X30 92027 92027-209 4
DAMPER 92075 92075-209 4
COLLAR 92143 92143-1676 2
COLLAR 92152 92152-0604 4
COLLAR 92152A 92152-3859 2
BOLT,FLANGED,6X12 92153 92153-1283 2
BOLT,FLANGED-SMALL,6X16 92154 92154-1183 2
BOLT,FLANGED,5X12 92154A 92154-1215 2
BOLT,FLANGED,6X20 92154B 92154-2757 2
BOLT,SOCKET,6X25 92154C 92154-4306 4
BOLT,FLANGED,6X9 92154D 92154-7185 5
BOLT,FLANGED,6X12 92154E 92154-7279 2
BOLT 92154F 92154-7503 2
BOLT,FLANGED,6X14 92154G 92154-7731 3
DAMPER,49X23X4 92161 92161-2536 1
DAMPER,BATTERY CASE 92161A 92161-2581 1
SCREW,5X8 92172 92172-1540 2
CLAMP 92173 92173-2876 2
NUT,6MM 92210 92210-0218 4
BOLT-FLANGED-SMALL,6X40 132 132BA0640 4
BOLT-FLANGED-SMALL,8X25 132A 132BB0825 2
BOLT-FLANGED-SMALL,8X35 132B 132BB0835 4
