Parts Diagrams |

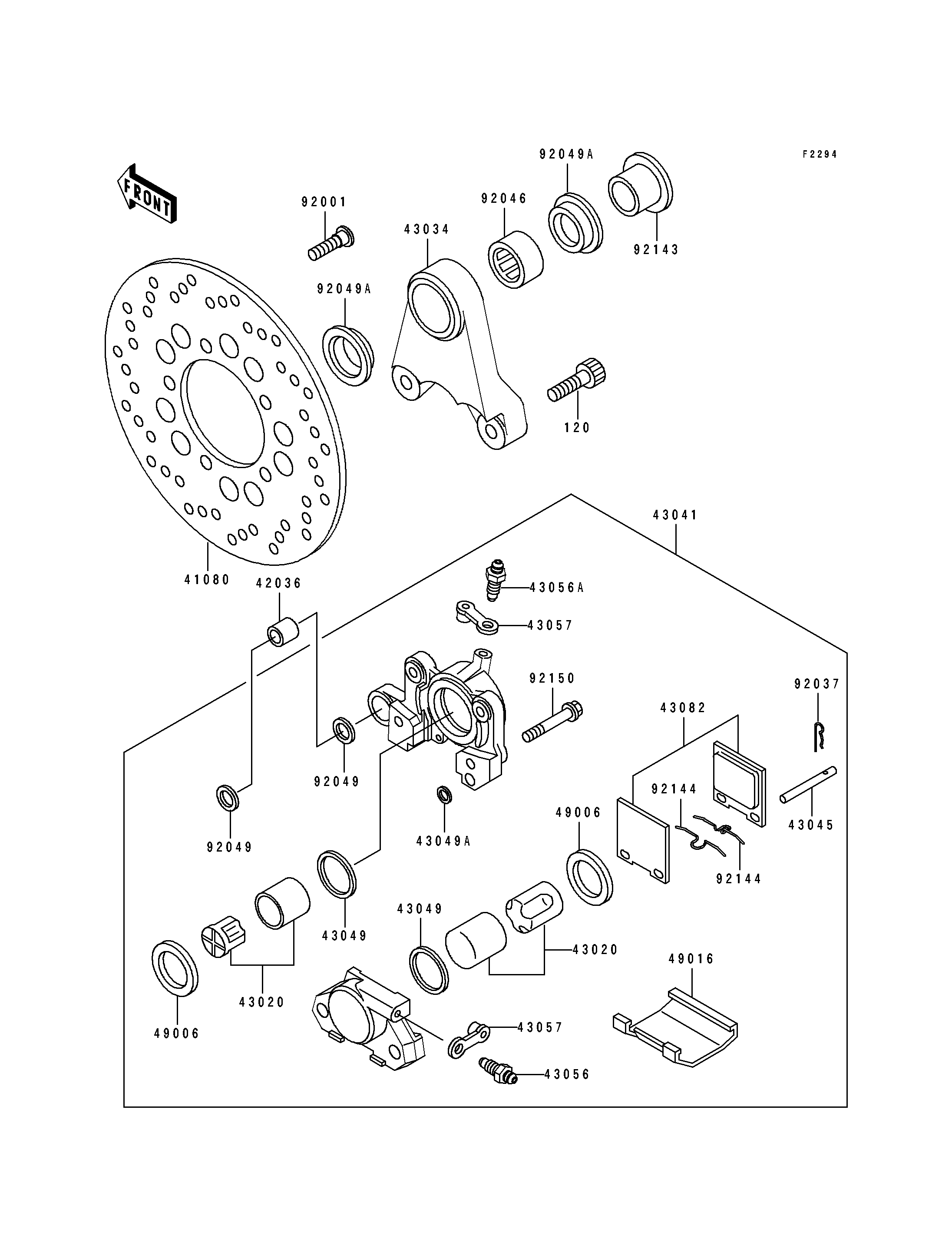

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,RR,C.GRAY | 41080 | 41080-1242-FB | 1 | ||
| SLEEVE,8.1X14X17.6 | 42036 | 42036-1260 | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1087 | 2 | ||
| HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1115 | 1 | ||
| CALIPER-ASSY,RR,M.F.GRAY | 43041 | 43041-1291-FE | 1 | ||
| SHAFT-CALIPER | 43045 | 43045-007 | 2 | ||
| PACKING,PISTON SEAL | 43049 | 43049-001 | 2 | ||
| PACKING,SEAL,6.5X11.5X2.2 | 43049A | 43049-1004 | 1 | ||
| BREATHER | 43056 | 43056-003 | 1 | ||
| BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 2 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1098 | 1 | ||
| BOOT,PISTON | 49006 | 49006-1254 | 2 | ||
| COVER-SEAL | 49016 | 49016-1145 | 1 | ||
| BOLT,DISC PLATE,8X30 | 92001 | 92001-1951 | 5 | ||
| CLAMP,PAD | 92037 | 43084-003 | 2 | ||
| BEARING-NEEDLE,BM3516 | 92046 | 92046-1206 | 1 | ||
| SEAL-OIL | 92049 | 92049-1339 | 2 | ||
| SEAL-OIL,MHA 35 42 5.7F | 92049A | 92049-1380 | 2 | ||
| COLLAR,L=32 | 92143 | 92143-1483 | 1 | ||
| SPRING,PAD | 92144 | 92144-1401 | 2 | ||
| BOLT,FLANGED,10X45 | 92150 | 92150-1273 | 2 | ||
| BOLT-SOCKET,8X25,BLACK | 120 | 120S0825 | 2 |
| DISC,RR,C.GRAY | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SLEEVE,8.1X14X17.6 | |
| REF # | 42036 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BRAKE,REAR CALIPER | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,RR,M.F.GRAY | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-CALIPER | |
| REF # | 43045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING,SEAL,6.5X11.5X2.2 | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,PISTON | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COVER-SEAL | |
| REF # | 49016 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,DISC PLATE,8X30 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| CLAMP,PAD | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM3516 | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL,MHA 35 42 5.7F | |
| REF # | 92049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=32 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,10X45 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SOCKET,8X25,BLACK | |
| REF # | 120 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
