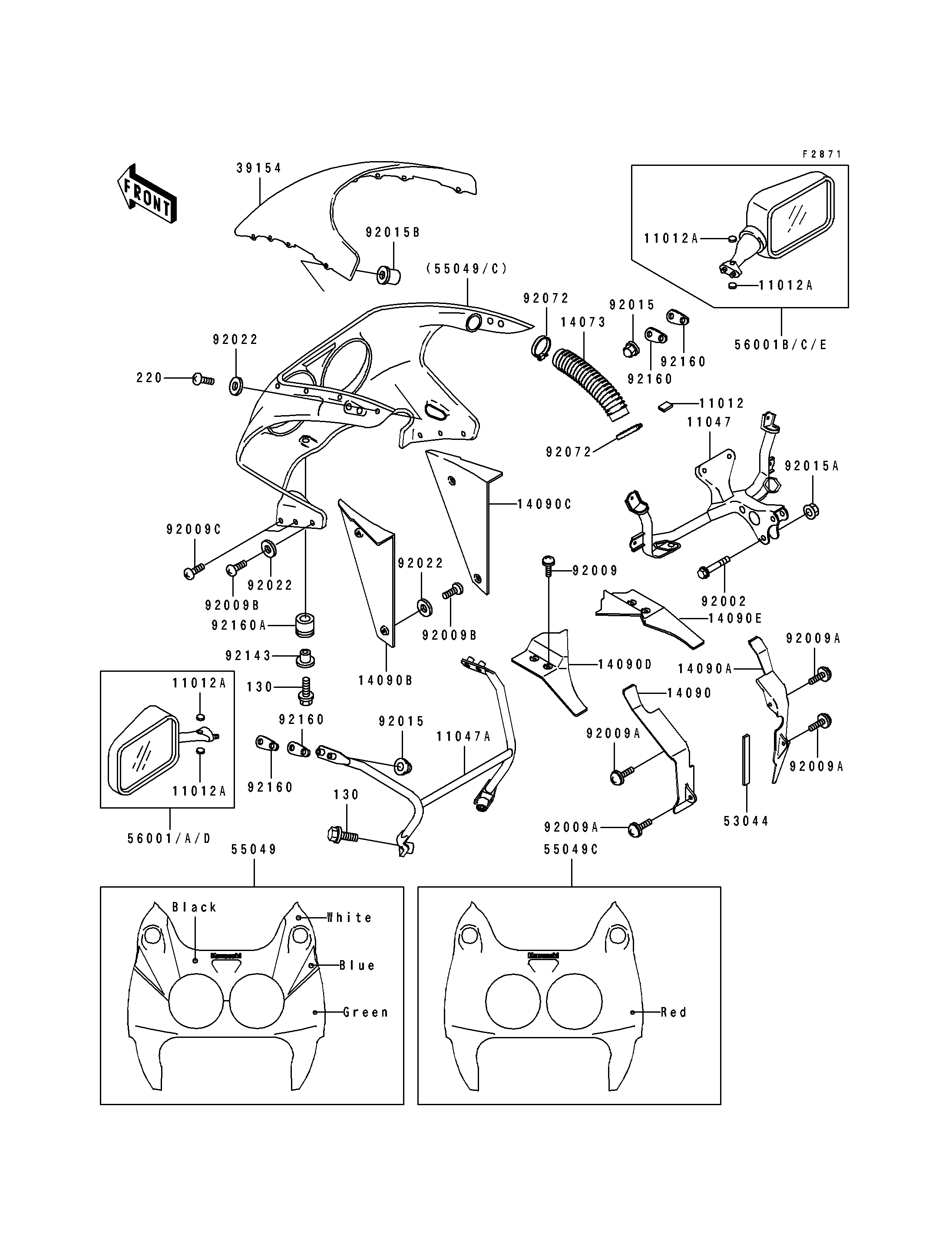

1992 Ninja® ZX™-7 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP 11012 11012-1725 4
CAP,MIRROR 11012A 11012-1818 4
BRACKET,UPP COWLING 11047 11047-1270 1
BRACKET,MIRROR,BLACK 11047A 11047-1271-10 1
DUCT,AIR INTAKE 14073 14073-1463 2
COVER,INNER COWLING,LH 14090 14090-1060 1
COVER,INNER COWLING,RH 14090A 14090-1061 1
COVER,RADIATOR,LH 14090B 14090-1090 1
COVER,RADIATOR,RH 14090C 14090-1091 1
COVER,INNER COWLING,LH 14090D 14090-1094 1
COVER,INNER COWLING,RH 14090E 14090-1095 1
WINDSHIELD 39154 39154-1116 1
TRIM,L=150 53044 53044-1248 1
COWLING.,UPP,GREEN/WHITE 55049 55049-5018-CK 1
COWLING.,UPP,C.W.RED 55049C 55049-5058-H3 1 CN
MIRROR-ASSY,LH,EBONY 56001 56001-1376-6C 1 CN
MIRROR-ASSY,LH,P.WHITE 56001A 56001-1376-6F 1
MIRROR-ASSY,RH,EBONY 56001B 56001-1377-6C 1 CN
MIRROR-ASSY,RH,P.WHITE 56001C 56001-1377-6F 1
BOLT,8X35 92002 92002-1198 2
SCREW,6X10 92009 92009-1402 4
SCREW,6X14 92009A 92009-1555 4
SCREW,5X16 92009B 92009-1654 6
SCREW,5X20 92009C 92009-1656 4
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,CAP,8MM,BLACK 92015A 92015-1174 2
NUT,WELL,5MM 92015B 92015-1757 10
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 16
BAND,RESERVOIR TANK 92072 92072-1091 4
COLLAR 92143 92143-1026 2
DAMPER,MIRROR 92160 92160-1089 4
DAMPER 92160A 92160-1141 2
BOLT-FLANGED,6X16,BLACK 130 130J0616 4
SCREW-PAN-CROS 220 220C0516 10
