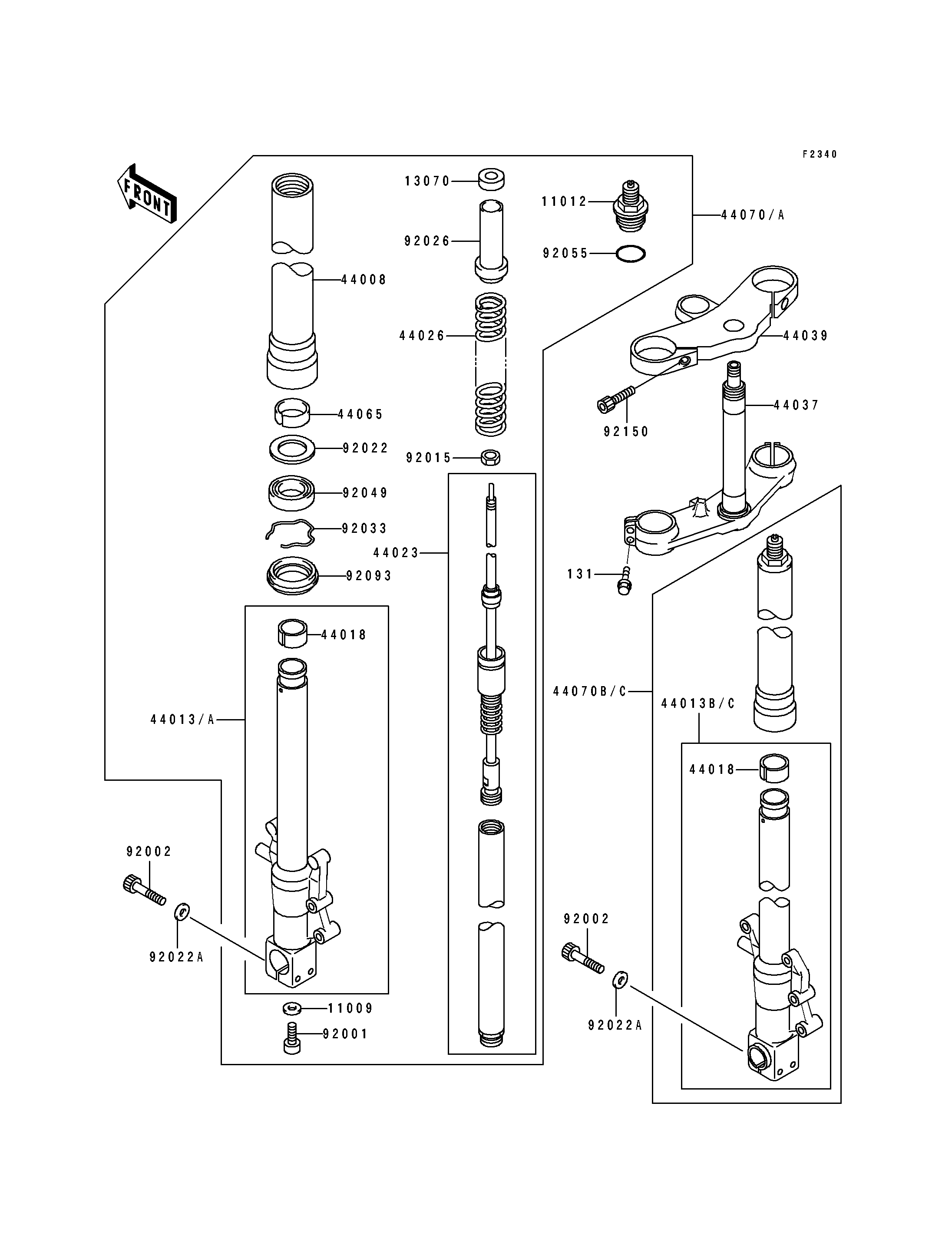

1992 Ninja® ZX™-7 - Front Fork

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER BOLT 11009 11009-1127 2
CAP,FORK TOP 11012 11012-1792 2
GUIDE,FORK 13070 13070-1236 2
PIPE-FORK OUTER,BROWN 44008 44008-1018-JS 2
PIPE-FORK INNER,LH,SILVER 44013 44013-1358-KF 1
PIPE-FORK INNER,LH,BLACK 44013A 44013-1358-10 1 CN
PIPE-FORK INNER,RH,SILVER 44013B 44013-1359-KF 1
PIPE-FORK INNER,RH,BLACK 44013C 44013-1359-10 1 CN
PISTON-FORK,INNER PIPE 44018 44018-1053 2
CYLINDER-COMP-FORK 44023 44023-1080 2
SPRING-FRONT FORK 44026 44026-1501 2
HOLDER-FORK UNDER 44037 44037-1295 1
HOLDER-FORK UPPER 44039 44039-1222 1
BUSHING-FRONT FORK,FORK OUTER 44065 44065-1105 2
DAMPER-ASSY,FORK,LH,SILVER 44070 44070-1132-KF 1
DAMPER-ASSY,FORK,LH,BLACK 44070A 44070-1132-10 1 CN
DAMPER-ASSY,FORK,RH,SILVER 44070B 44070-1133-KF 1
DAMPER-ASSY,FORK,RH,BLACK 44070C 44070-1133-10 1 CN
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,SOCKET,8X45 92002 92002-1847 4
NUT 92015 92015-1795 2
WASHER 92022 92022-1299 2
WASHER 92022A 92022-1598 4
SPACER,FORK 92026 92026-1410 2
RING-SNAP 92033 92033-1077 2
SEAL-OIL,FORK OUTER TUBE 92049 92049-1392 2
RING-O,FORK,AIR TUBE 92055 92055-1333 2
SEAL,FORK OUTER TUBE 92093 92093-1330 2
BOLT,SOCKET,8X25 92150 92150-1172 2
BOLT-FLANGED,8X40 131 131G0840 4
