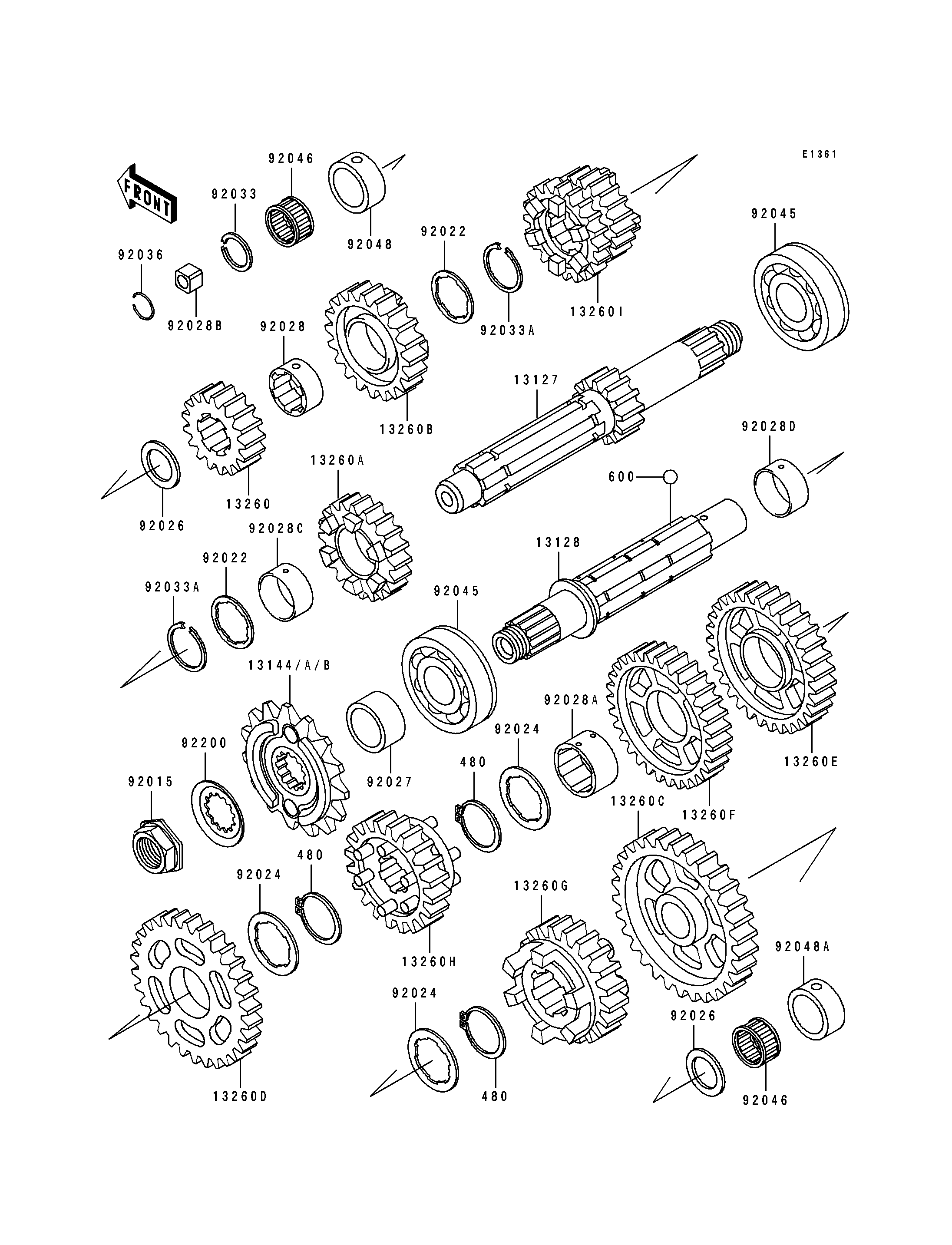

1991 Ninja® ZX™-7 - Transmission

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,14T 13127 13127-1205 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1181 1
SPROCKET-OUTPUT,17T(#530) 13144 13144-1009 1 (RACING USE ONLY)
SPROCKET-OUTPUT,15T(#530) 13144A 13144-1117 1 (RACING USE ONLY)
SPROCKET-OUTPUT,16T 13144B 13144-1129 1
GEAR,INPUT 2ND,18T 13260 13260-1161 1
GEAR,INPUT 5TH,27T 13260A 13260-1163 1
GEAR,INPUT TOP,29T 13260B 13260-1164 1
GEAR,OUTPUT LOW,40T 13260C 13260-1165 1
GEAR,OUTPUT 2ND,37T 13260D 13260-1166 1
GEAR,OUTPUT 3RD,33T 13260E 13260-1167 1
GEAR,OUTPUT 4TH,32T 13260F 13260-1168 1
GEAR,OUTPUT 5TH,33T 13260G 13260-1169 1
GEAR,OUTPUT TOP,32T 13260H 13260-1170 1
GEAR,INPUT 3RD&4TH,20T&23T 13260I 13260-1249 1
NUT,20MM 92015 92015-1254 1
WASHER,TOOTHED,26X35.5X1.5 92022 92022-1077 2
WASHER,TOOTHED,30.3X40X1.5 92024 92024-043 3
SPACER,22X35.5X2.1 92026 92026-1224 2
COLLAR,ENGINE SPROCKET 92027 92027-1302 1
BUSHING,INPUT TOP GEAR 92028 92028-1255 1
BUSHING,OUTPUT 3RD&4TH 92028A 92028-1363 1
BUSHING 92028B 92028-1448 1
BUSHING,INPUT 5TH GEAR 92028C 92028-1449 1
BUSHING,OUTPUT 2ND 92028D 92028-1450 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,25.9MM 92033A 92033-1037 2
RING-SNAP 92036 92036-005 1
BEARING-BALL,6305N2SH2 92045 92045-1224 2
BEARING-NEEDLE,FWF-223014 92046 92046-031 2
RACE,INPUT SHAFT 92048 92048-1066 1
RACE,0RZ30X38X17PX1 92048A 92048-1067 1
WASHER 92200 92200-1065 1
CIRCLIP 480 480J2900 3
BALL-STEEL,5/32" 600 600A0500 3
