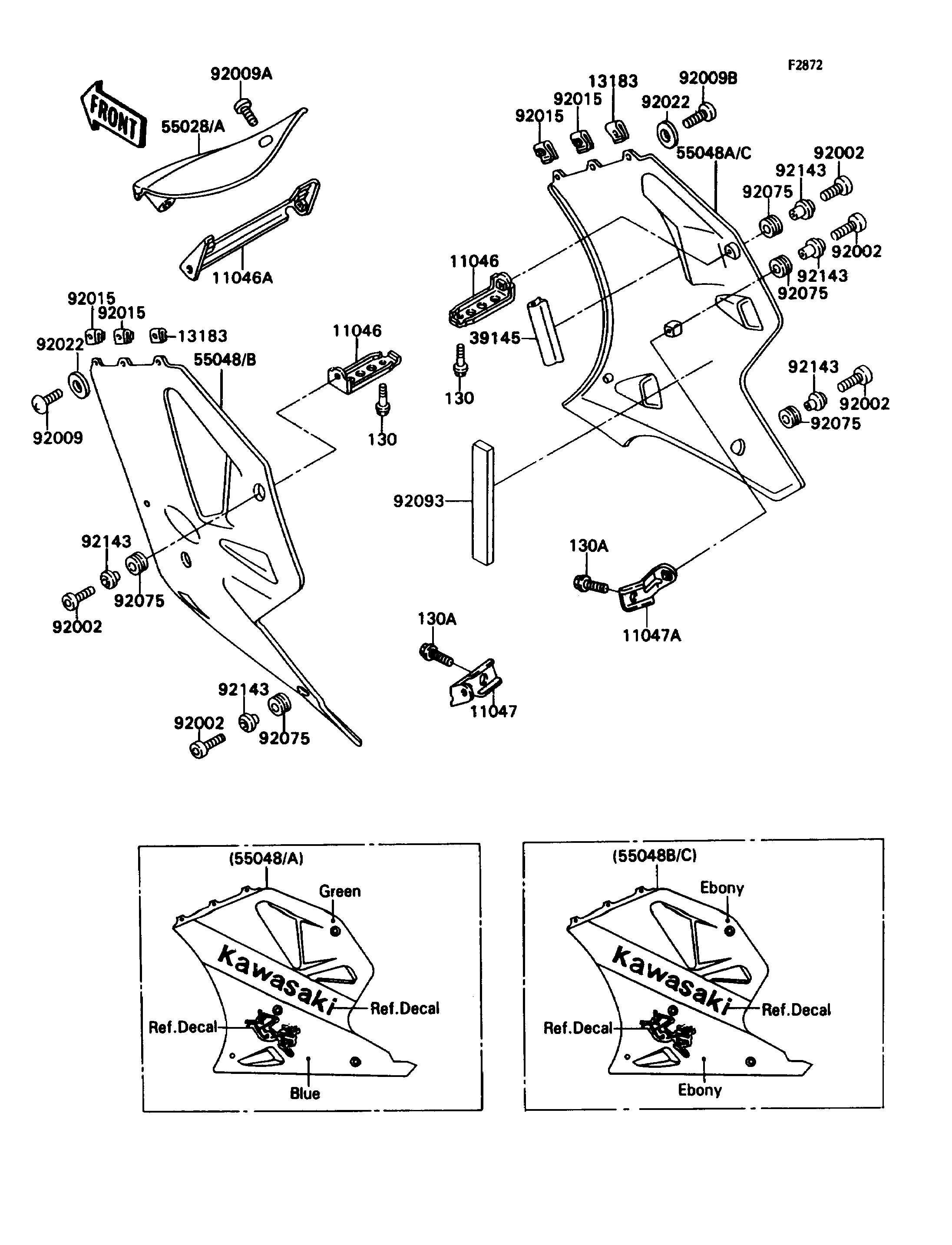

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET | 11046 | 11046-1512 | 2 | ||
| BRACKET,LWR COWLING | 11046A | 11046-1516 | 1 | ||
| BRACKET,SIDE COWLING,FR,LH | 11047 | 11047-1006 | 1 | ||
| BRACKET,SIDE COWLING,FR,RH | 11047A | 11047-1007 | 1 | ||
| PLATE | 13183 | 13183-1474 | 2 | ||
| TRIM-SEAL,SIDE COWLING | 39145 | 39145-1055 | 2 | ||
| COWLING,LWR,FR,BLUE 24 | 55028 | 55028-1236-DB | 1 | ||
| COWLING,LWR,FR,EBONY | 55028A | 55028-1236-H8 | 1 | ||
| COWLING.,SIDE,LH,GREEN/BLUE | 55048 | 55048-5356-DY | 1 | ||
| COWLING.,SIDE,RH,GREEN/BLUE | 55048A | 55048-5357-DY | 1 | ||
| COWLING.,SIDE,LH,EBONY | 55048B | 55048-5393-H8 | 1 | ||
| COWLING.,SIDE,RH,EBONY | 55048C | 55048-5394-H8 | 1 | ||
| BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 6 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1301 | 4 | ||
| SCREW,5X14,BLACK | 92009A | 92009-1383 | 4 | ||
| SCREW,5X20,BLACK | 92009B | 92009-1453 | 2 | ||
| NUT,5MM | 92015 | 92015-1710 | 4 | ||
| WASHER,NYLON,5.3X11.5X1.5 | 92022 | 92022-1521 | 6 | ||
| DAMPER | 92075 | 92075-1634 | 6 | ||
| SEAL | 92093 | 92093-1277 | 2 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 6 | ||
| BOLT-FLANGED,6X8 | 130 | 130J0608 | 2 | ||
| BOLT-FLANGED | 130A | 130J0610 | 2 |
| BRACKET | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,LWR COWLING | |
| REF # | 11046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SIDE COWLING,FR,LH | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,SIDE COWLING,FR,RH | |
| REF # | 11047A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TRIM-SEAL,SIDE COWLING | |
| REF # | 39145 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,FR,BLUE 24 | |
| REF # | 55028 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,FR,EBONY | |
| REF # | 55028A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,LH,GREEN/BLUE | |
| REF # | 55048 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,RH,GREEN/BLUE | |
| REF # | 55048A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,LH,EBONY | |
| REF # | 55048B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING.,SIDE,RH,EBONY | |
| REF # | 55048C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X16,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X14,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X20,BLACK | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,NYLON,5.3X11.5X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BLACK | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X8 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED | |
| REF # | 130A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
