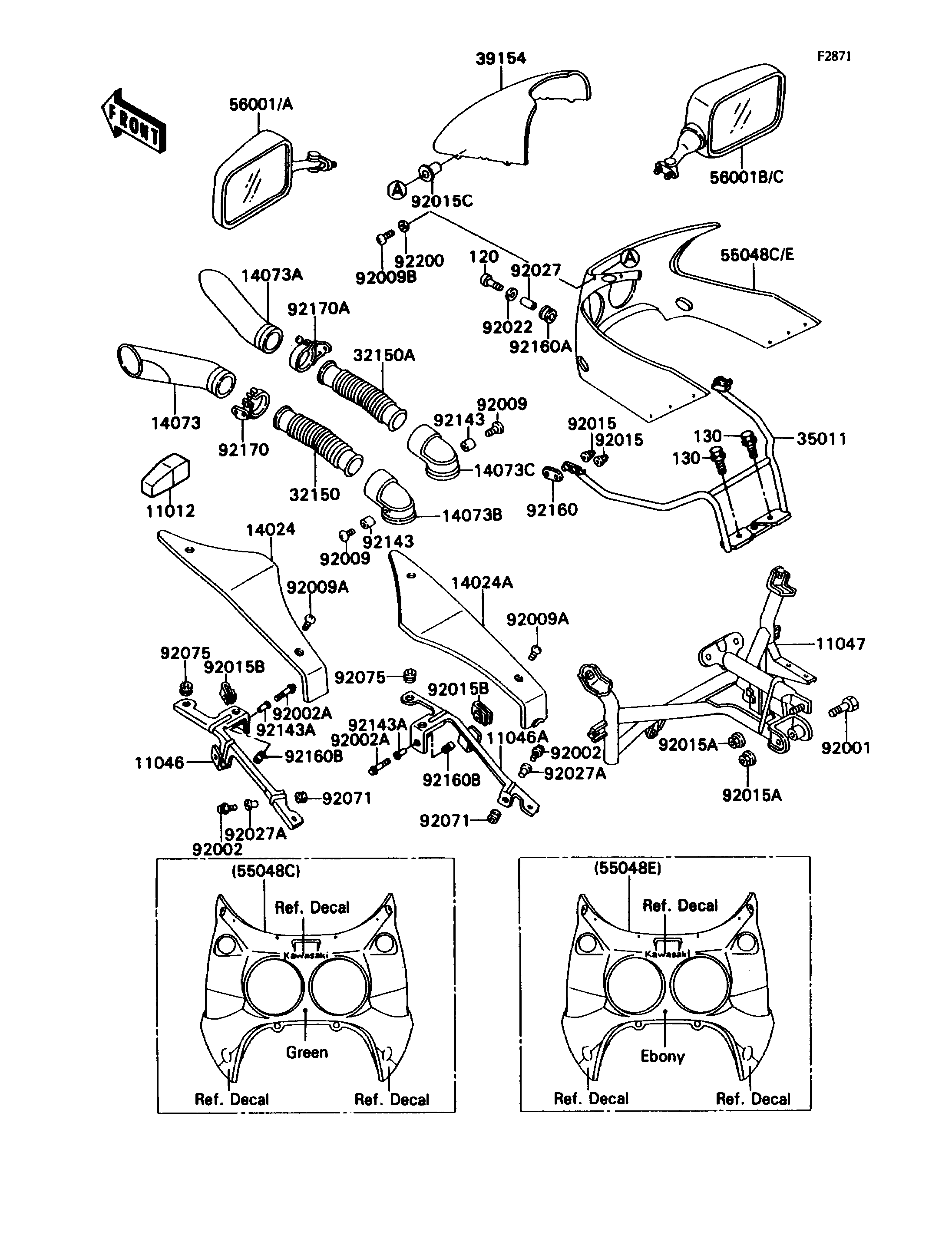

1990 Ninja® ZX™-7 - Cowling

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,CLAMP 11012 11012-1718 2
BRACKET,INNER COWLING,LH 11046 11046-1745 1
BRACKET,INNER COWLING,RH 11046A 11046-1746 1
BRACKET,UPPER COWLING 11047 11047-1116 1
COVER,INNER COWLING,LH 14024 14024-1823 1
COVER,INNER COWLING,RH 14024A 14024-1824 1
DUCT,AIR INTAKE,FR,LH 14073 14073-1395 1
DUCT,AIR INTAKE,FR,RH 14073A 14073-1396 1
DUCT,AIR INTAKE,RR,LH 14073B 14073-1397 1
DUCT,AIR INTAKE,RR,RH 14073C 14073-1398 1
PIPE,AIR INTAKE,LH 32150 32150-1387 1
PIPE,AIR INTAKE,RH 32150A 32150-1388 1
STAY,MIRROR 35011 35011-1476 1
WINDSHIELD 39154 39154-1103 1
COWLING.,UPP,L.GREEN 55048C 55048-5353-7F 1
COWLING.,UPP,EBONY 55048E 55048-5392-H8 1
MIRROR-ASSY,LH,EBONY 56001 56001-1379-6C 1
MIRROR-ASSY,LH,L.GREEN 56001A 56001-1379-6W 1
MIRROR-ASSY,RH,EBONY 56001B 56001-1380-6C 1
MIRROR-ASSY,RH,L.GREEN 56001C 56001-1380-6W 1
BOLT,FLANGED,8X50 92001 92001-1614 1
BOLT,FLANGED,8X22 92002 92002-1676 2
BOLT,FLANGED,8X40 92002A 92002-1838 2
SCREW,5X12,BLACK 92009 92009-1182 2
SCREW,5X14,BLACK 92009A 92009-1383 2
SCREW,5X15 92009B 92009-1572 6
NUT,CAP,6MM,BLACK 92015 92015-1170 4
NUT,FLANGED,8MM,BLACK 92015A 92015-1183 2
NUT,COVER,SIDE 92015B 92015-1261 2
NUT,WELL,5MM 92015C 92015-1757 6
WASHER,7X16X1.2 92022 92022-1344 2
COLLAR,6.8X10X11.5 92027 92027-1210 2
COLLAR,L=12 92027A 92027-1842 2
GROMMET 92071 92071-1010 2
DAMPER,FILTER COVER 92075 92075-1126 2
COLLAR,5.6X8X7 92143 92143-1336 2
COLLAR 92143A 92143-1412 2
DAMPER,MIRROR 92160 92160-1089 2
DAMPER 92160A 92160-1123 2
DAMPER 92160B 92160-1208 2
CLAMP,AIR INTAKE DUCT,LH 92170 92170-1102 1
CLAMP,AIR INTAKE DUCT,RH 92170A 92170-1103 1
WASHER,NYLON,5.2X12X1 92200 92200-1011 6
BOLT-SOCKET,6X20 120 120S0620 2
BOLT-FLANGED 130 130J0620 2
