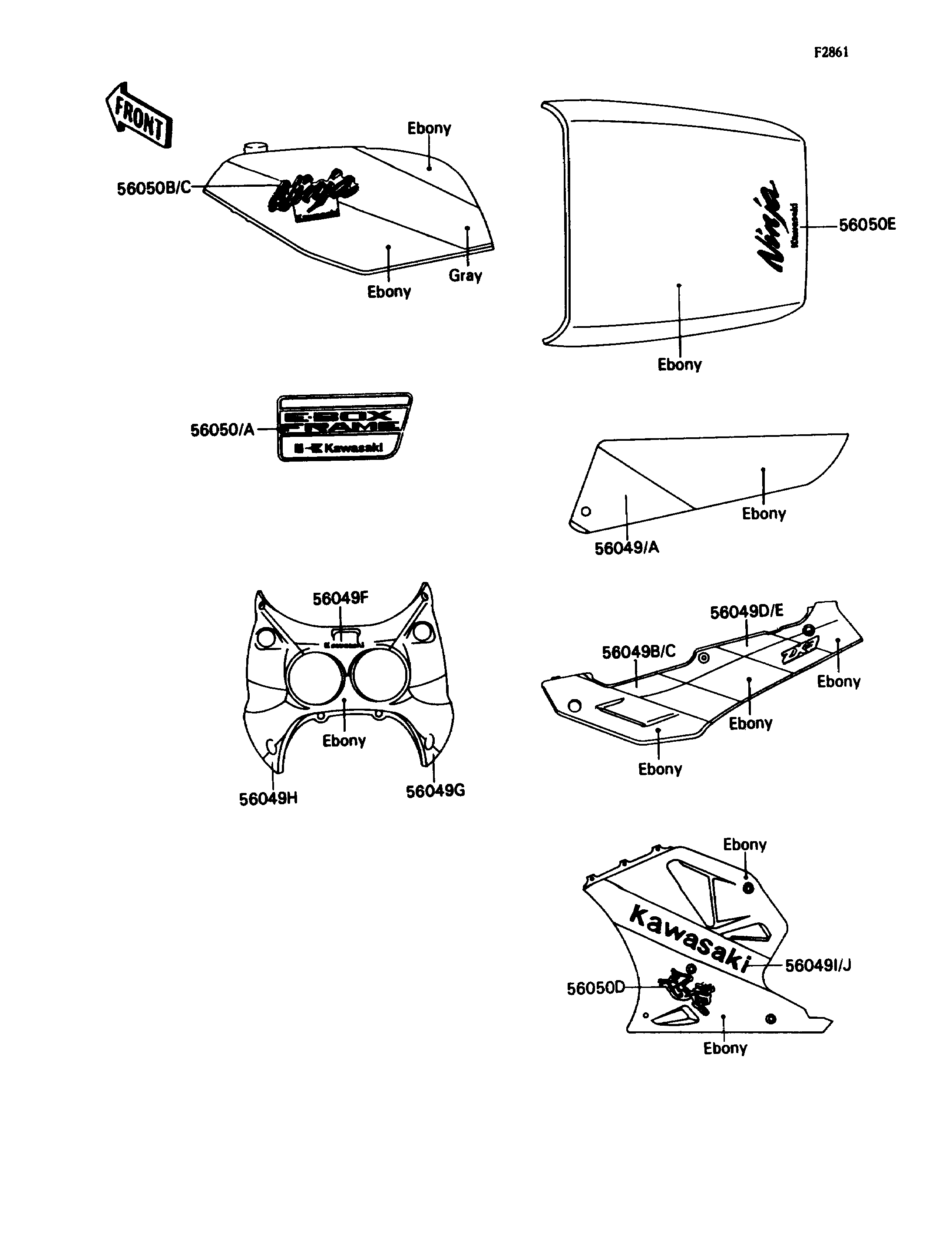

1990 Ninja® ZX™-7 - Decals(Ebony/Gray)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PATTERN,SINGLE SEAT COVER,LH | 56049 | 56049-1003 | 1 | ||
| PATTERN,SINGLE SEAT COVER,RH | 56049A | 56049-1004 | 1 | ||
| PATTERN,SIDE COVER,LH,FR | 56049B | 56049-1029 | 1 | ||
| PATTERN,SIDE COVER,RH,FR | 56049C | 56049-1030 | 1 | ||
| PATTERN,SIDE COVER,LH,RR | 56049D | 56049-1031 | 1 | ||
| PATTERN,SIDE COVER,RH,RR | 56049E | 56049-1032 | 1 | ||
| PATTERN,UPP COWLING,UPP | 56049F | 56049-1417 | 1 | ||
| PATTERN,UPP COWLING,SIDE,LH | 56049G | 56049-1418 | 1 | ||
| PATTERN,UPP COWLING,SIDE,RH | 56049H | 56049-1419 | 1 | ||
| PATTERN,SIDE COWLING,LH | 56049I | 56049-1420 | 1 | ||
| PATTERN,SIDE COWLING,RH | 56049J | 56049-1421 | 1 | ||
| MARK,FRAME,LH | 56050 | 56050-1322 | 1 | ||
| MARK,FRAME,RH | 56050A | 56050-1323 | 1 | ||
| MARK,NINJA/KAWASAKI,LH | 56050B | 56050-1348 | 1 | ||
| MARK,NINJA/KAWASAKI,RH | 56050C | 56050-1349 | 1 | ||
| MARK,NINJA | 56050D | 56050-1350 | 2 | ||
| MARK,SINGLE SEAT COVER,NINJA | 56050E | 56050-1459 | 1 |
| PATTERN,SINGLE SEAT COVER,LH | |
| REF # | 56049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SINGLE SEAT COVER,RH | |
| REF # | 56049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH,FR | |
| REF # | 56049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH,FR | |
| REF # | 56049C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,LH,RR | |
| REF # | 56049D |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COVER,RH,RR | |
| REF # | 56049E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,UPP | |
| REF # | 56049F |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,SIDE,LH | |
| REF # | 56049G |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,UPP COWLING,SIDE,RH | |
| REF # | 56049H |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,LH | |
| REF # | 56049I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PATTERN,SIDE COWLING,RH | |
| REF # | 56049J |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FRAME,LH | |
| REF # | 56050 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,FRAME,RH | |
| REF # | 56050A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA/KAWASAKI,LH | |
| REF # | 56050B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA/KAWASAKI,RH | |
| REF # | 56050C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| MARK,NINJA | |
| REF # | 56050D |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| MARK,SINGLE SEAT COVER,NINJA | |
| REF # | 56050E |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
