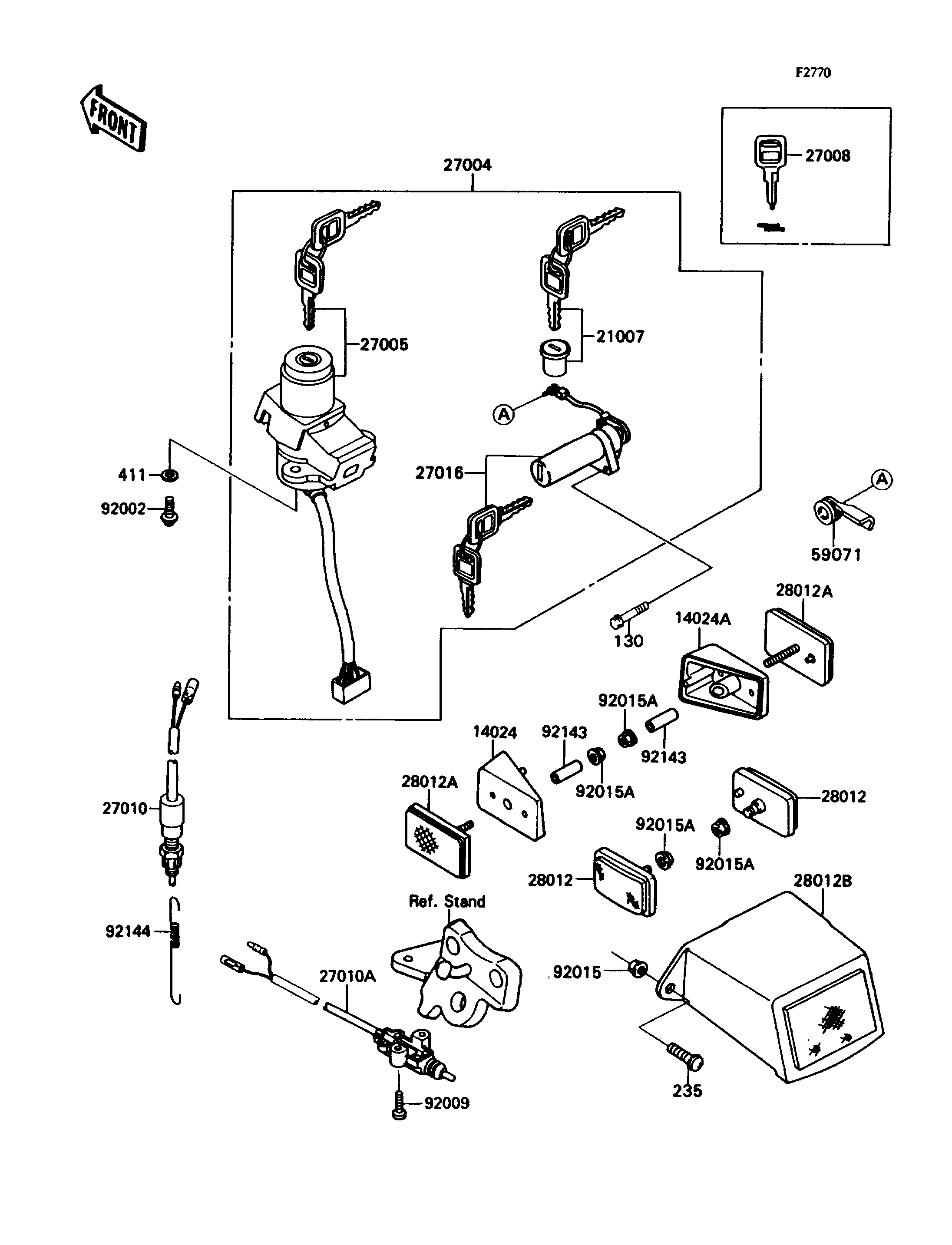

1990 Ninja® ZX™-7 - Ignition Switch/Locks/Reflectors
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,REFLECTOR,LH | 14024 | 14024-1812 | 1 | ||
| COVER,REFLECTOR,RH | 14024A | 14024-1813 | 1 | ||
| ROTOR,LOCK,TANK CAP | 21007 | 21007-5027 | 1 | ||
| SWITCH-ASSY | 27004 | 27004-5357 | 1 | ||
| SWITCH-ASSY-IGNITION | 27005 | 27005-5081 | 1 | ||
| KEY-LOCK,BLANK | 27008 | 27008-1103 | 1 | (OPTION) | |
| SWITCH,BRAKE LAMP | 27010 | 27010-1093 | 1 | ||
| SWITCH,SIDE STAND | 27010A | 27010-1223 | 1 | ||
| LOCK-ASSY,SEAT | 27016 | 27016-5151 | 1 | ||
| REFLECTOR-REFLEX,RR | 28012 | 28012-1054 | 2 | ||
| REFLECTOR-REFLEX | 28012A | 28012-1064 | 2 | ||
| REFLECTOR-REFLEX,RR | 28012B | 28012-1066 | 1 | ||
| JOINT | 59071 | 59071-1125 | 1 | ||
| BOLT,TORX,6X16 | 92002 | 92002-1333 | 2 | ||
| SCREW,5X20 | 92009 | 92009-1459 | 2 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1193 | 2 | ||
| NUT,FLANGED,5MM | 92015A | 92015-1259 | 4 | ||
| COLLAR,5.6X8X25 | 92143 | 92143-1231 | 2 | ||
| SPRING,REAR BRAKE SWITCH | 92144 | 92144-1283 | 1 | ||
| BOLT-FLANGED,5X30 | 130 | 130H0530 | 2 | ||
| SCREW-PAN-WP-CROS | 235 | 235C0620 | 2 | ||
| WASHER-PLAIN,6MM | 411 | 411E0600 | 2 |
