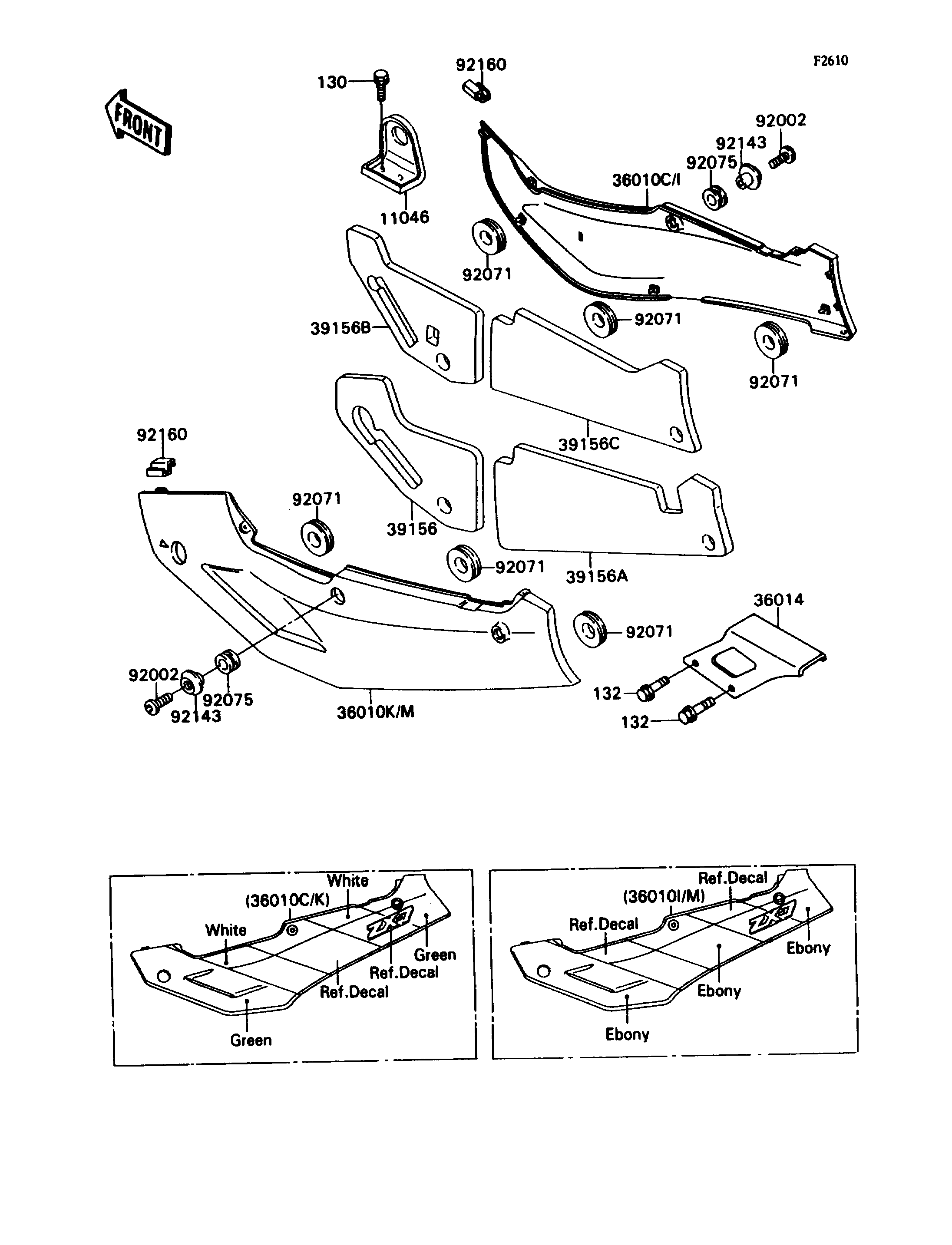

1990 Ninja® ZX™-7 - Side Covers/Chain Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SIDE COVER,RH | 11046 | 11046-1798 | 1 | ||
| COVER-SIDE,RH,GREEN/WHITE | 36010C | 36010-5207-CK | 1 | ||
| COVER-SIDE,RH,EBONY | 36010I | 36010-5233-H8 | 1 | ||
| COVER-SIDE,LH,GREEN/WHITE | 36010K | 36010-5302-CK | 1 | ||
| COVER-SIDE,LH,EBONY | 36010M | 36010-5325-H8 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1166 | 1 | ||
| PAD,SIDE COVER,LH,FR | 39156 | 39156-1127 | 1 | ||
| PAD,SIDE COVER,LH,RR | 39156A | 39156-1128 | 1 | ||
| PAD,SIDE COVER,RH,FR | 39156B | 39156-1129 | 1 | ||
| PAD,SIDE COVER,RH,RR | 39156C | 39156-1141 | 1 | ||
| BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 2 | ||
| GROMMET | 92071 | 92071-056 | 6 | ||
| DAMPER | 92075 | 92075-1634 | 2 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 2 | ||
| DAMPER | 92160 | 92160-1085 | 2 | ||
| BOLT-FLANGED,6X10 | 130 | 130H0610 | 2 | ||
| BOLT-FLANGED-SMALL | 132 | 132E0612 | 2 |
| BRACKET,SIDE COVER,RH | |
| REF # | 11046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,GREEN/WHITE | |
| REF # | 36010C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,RH,EBONY | |
| REF # | 36010I |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,GREEN/WHITE | |
| REF # | 36010K |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-SIDE,LH,EBONY | |
| REF # | 36010M |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE-CHAIN | |
| REF # | 36014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,LH,FR | |
| REF # | 39156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,LH,RR | |
| REF # | 39156A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH,FR | |
| REF # | 39156B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PAD,SIDE COVER,RH,RR | |
| REF # | 39156C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BLACK | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X10 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED-SMALL | |
| REF # | 132 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
