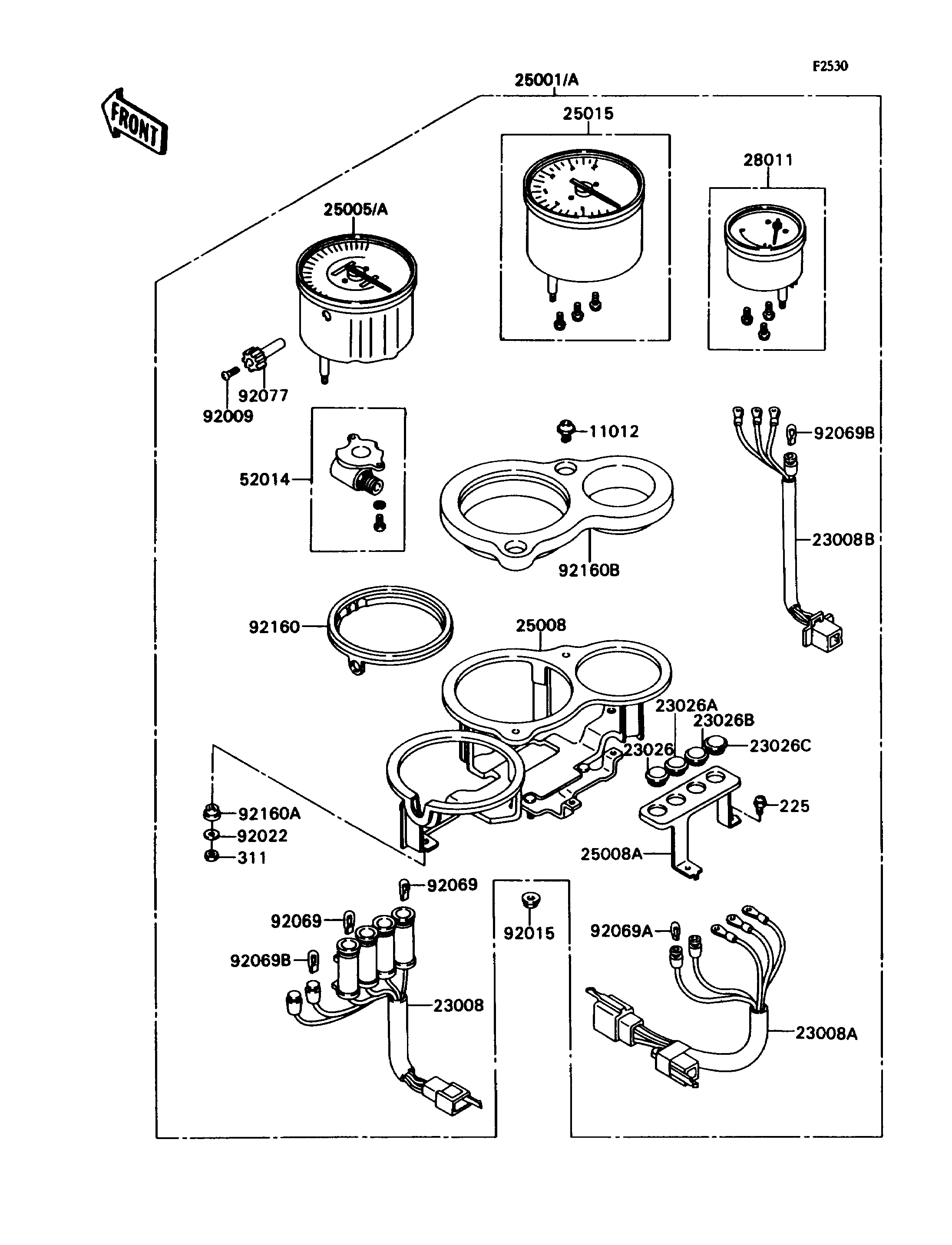

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP | 11012 | 11012-1701 | 2 | ||
| SOCKET-ASSY,SPEEDOMETER | 23008 | 23008-1385 | 1 | ||
| SOCKET-ASSY,TACHOMETER | 23008A | 23008-1386 | 1 | ||
| SOCKET-ASSY,TEMP METER | 23008B | 23008-1388 | 1 | ||
| LENS,PILOT,RED | 23026 | 23026-1105 | 1 | ||
| LENS,PILOT,ORANGE | 23026A | 23026-1106 | 1 | ||
| LENS,PILOT,GREEN | 23026B | 23026-1107 | 1 | ||
| LENS,PILOT,BLUE | 23026C | 23026-1108 | 1 | ||
| METER-ASSY,MPH | 25001 | 25001-1742 | 1 | CAUS | |
| METER-ASSY,KPH | 25001A | 25001-1743 | 1 | CN | |
| SPEEDOMETER,MPH | 25005 | 25005-1396 | 1 | CAUS | |
| SPEEDOMETER,KPH | 25005A | 25005-1397 | 1 | CN | |
| BRACKET-METER | 25008 | 25008-1154 | 1 | ||
| BRACKET-METER | 25008A | 25008-1155 | 1 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1279 | 1 | ||
| METER,TEMP | 28011 | 28011-1110 | 1 | ||
| ELBOW,SPEEDOMETER GEAR | 52014 | 52014-1006 | 1 | ||
| SCREW,2X6,BLACK | 92009 | 92009-1172 | 1 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1233 | 2 | ||
| WASHER,4.3X12.5X1 | 92022 | 92022-1949 | 6 | ||
| BULB,12V 3.4W | 92069 | 92069-1007 | 4 | ||
| BULB,12V3W T-7 | 92069A | 92069-1020 | 2 | ||
| BULB,14V 3W | 92069B | 92069-1068 | 3 | ||
| KNOB,METER | 92077 | 92077-1073 | 1 | ||
| DAMPER,SPEEDOMETER | 92160 | 92160-1064 | 1 | ||
| DAMPER | 92160A | 92160-1068 | 6 | ||
| DAMPER,TACHOMETER | 92160B | 92160-1122 | 1 | ||
| SCREW-PAN-WSP-CROS | 225 | 225C0410 | 2 | ||
| NUT-HEX | 311 | 311C0400 | 6 |
