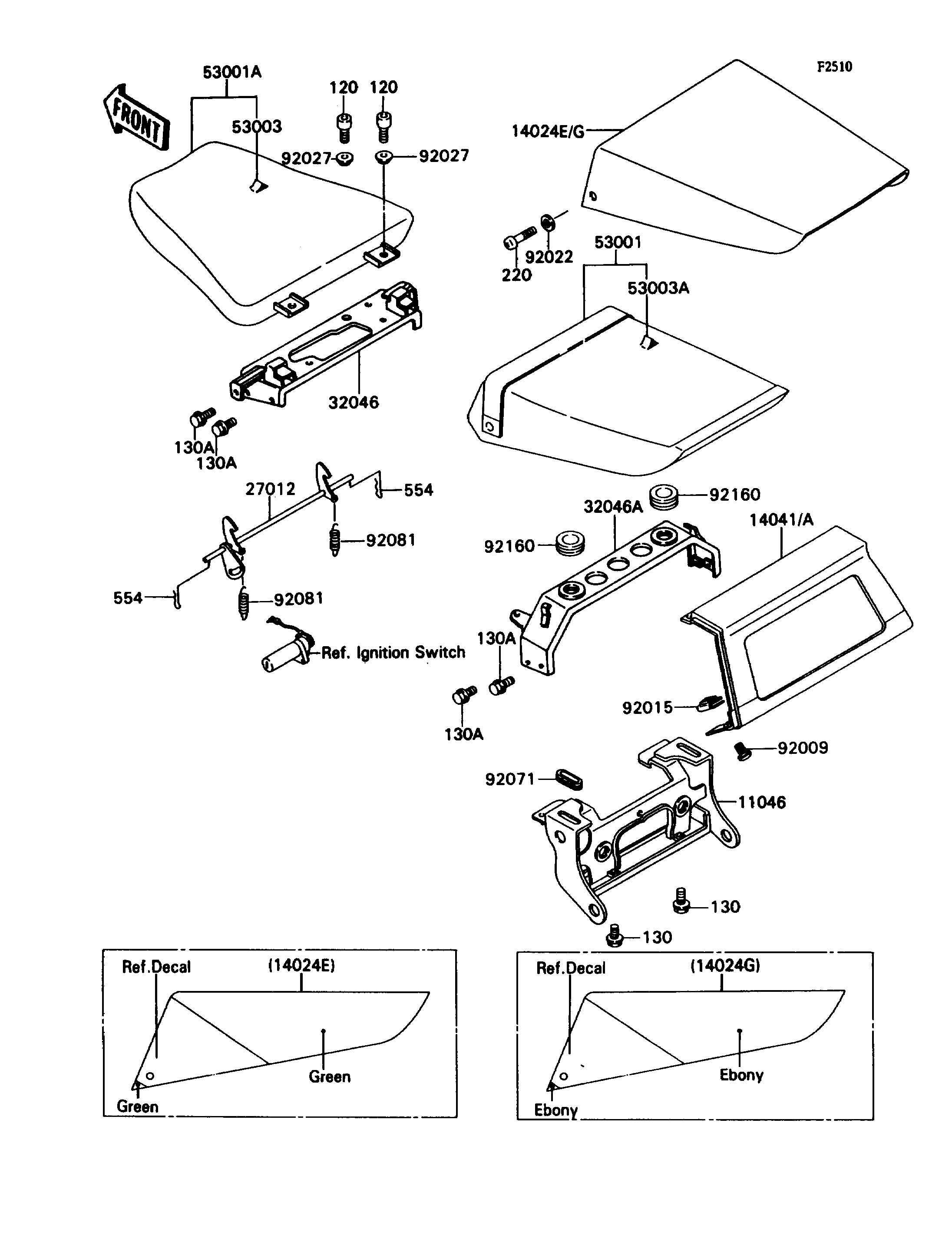

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEAT COVER | 11046 | 11046-1539 | 1 | ||
| COVER,SINGLE SEAT,L.GREEN | 14024E | 14024-5175-7F | 1 | ||
| COVER,SINGLE SEAT,EBONY | 14024G | 14024-5186-H8 | 1 | ||
| COVER-COMP,SEAT,EBONY | 14041 | 14041-1094-H8 | 1 | ||
| COVER-COMP,SEAT,L.GREEN | 14041A | 14041-1094-7F | 1 | ||
| HOOK,SEAT | 27012 | 27012-1400 | 1 | ||
| BRACKET-SEAT,CNT | 32046 | 32046-1345 | 1 | ||
| BRACKET-SEAT,RR | 32046A | 32046-1346 | 1 | ||
| SEAT-ASSY,RR,W/BAND,BLACK | 53001 | 53001-1574-MA | 1 | ||
| SEAT-ASSY,FR,BLACK | 53001A | 53001-1618-MA | 1 | ||
| LEATHER,FRONT SEAT,BLACK | 53003 | 53003-1218-MA | 1 | ||
| LEATHER,REAR SEAT,BLACK | 53003A | 53003-1219-MA | 1 | ||
| SCREW,5X16,BLACK | 92009 | 92009-1301 | 4 | ||
| NUT,5MM | 92015 | 92015-1573 | 2 | ||
| WASHER,6.2X11X1.5 | 92022 | 92022-183 | 2 | ||
| COLLAR,L=6.5 | 92027 | 92027-252 | 2 | ||
| GROMMET | 92071 | 92071-1187 | 2 | ||
| SPRING,HOOK RETURN | 92081 | 92081-1580 | 2 | ||
| DAMPER | 92160 | 92160-1012 | 2 | ||
| BOLT-SOCKET,6X16,BLACK | 120 | 120S0616 | 2 | ||
| BOLT-FLANGED,6X12 | 130 | 130H0612 | 2 | ||
| BOLT-FLANGED,6X14 | 130A | 130H0614 | 8 | ||
| SCREW-PAN-CROS,6X10,BLACK | 220 | 220C0610 | 2 | ||
| PIN-SNAP | 554 | 554A0600 | 2 |
