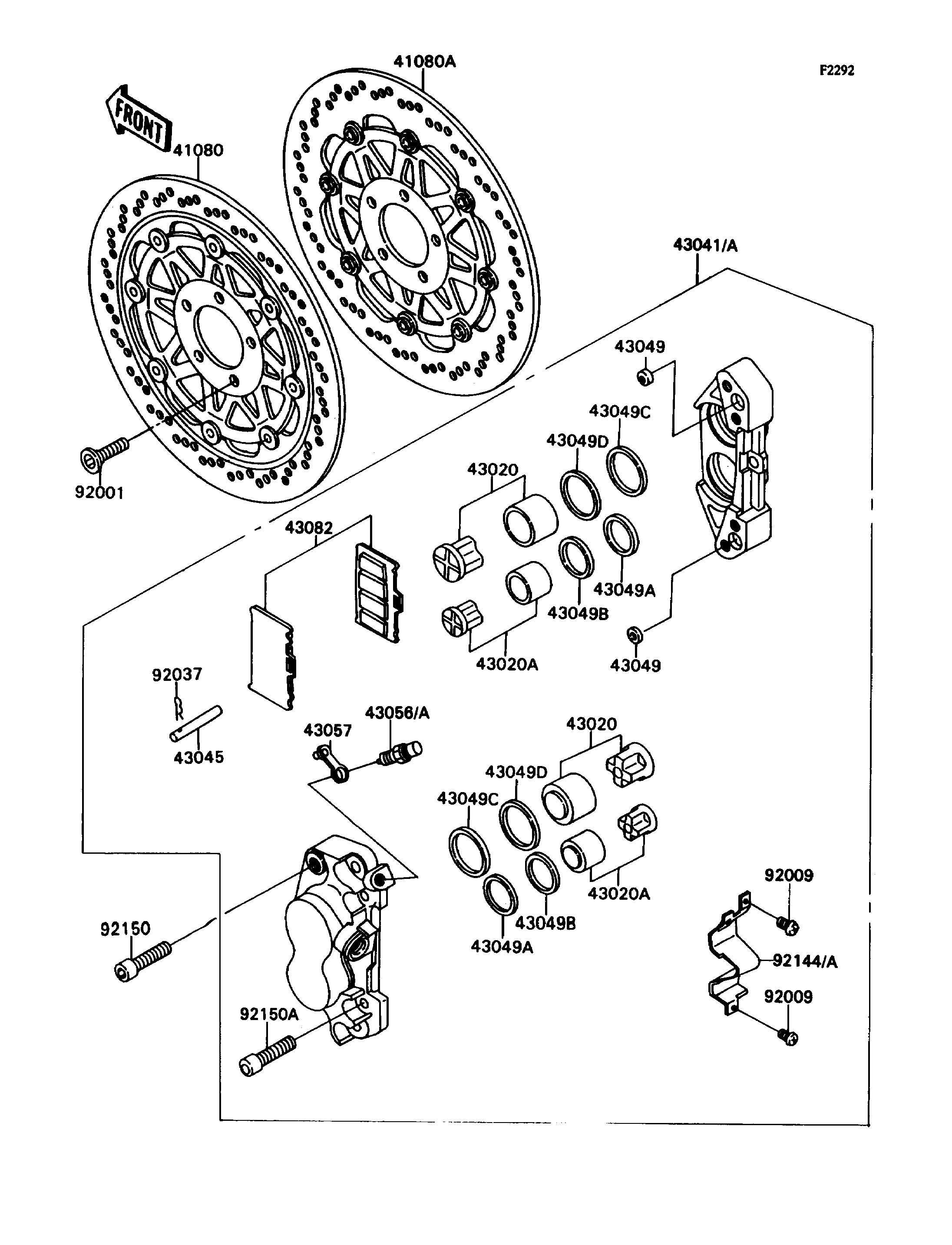

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,FR,LH,GOLD NO.1 | 41080 | 41080-1284-CN | 1 | ||
| DISC,FR,RH,GOLD NO.1 | 41080A | 41080-1285-CN | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1085 | 4 | ||
| PISTON-COMP-BRAKE | 43020A | 43020-1086 | 4 | ||
| CALIPER-ASSY,FR,LH,GOLD | 43041 | 43041-1310-DK | 1 | ||
| CALIPER-ASSY,FR,RH,GOLD | 43041A | 43041-1311-DK | 1 | ||
| SHAFT-CALIPER | 43045 | 43045-007 | 2 | ||
| PACKING,SEAL,6.5X11.5X2.2 | 43049 | 43049-1004 | 4 | ||
| PACKING,PISTON SEAL | 43049A | 43049-1054 | 4 | ||
| PACKING,PISTON | 43049B | 43049-1055 | 4 | ||
| PACKING,PISTON SEAL | 43049C | 43049-1056 | 4 | ||
| PACKING,PISTON | 43049D | 43049-1057 | 4 | ||
| BREATHER | 43056 | 43056-003 | 1 | ||
| BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 2 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1097 | 2 | ||
| BOLT,DISC PLATE,8X30 | 92001 | 92001-1951 | 10 | ||
| SCREW,4X6 | 92009 | 92009-1569 | 4 | ||
| CLAMP,PAD | 92037 | 43084-003 | 2 | ||
| SPRING | 92144 | 92144-1399 | 1 | ||
| SPRING,FR CALIPER,RH | 92144A | 92144-1400 | 1 | ||
| BOLT,SOCKET,10X37 | 92150 | 92150-1261 | 4 | ||
| BOLT,SOCKET,8X40 | 92150A | 92150-1272 | 8 |
| DISC,FR,LH,GOLD NO.1 | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DISC,FR,RH,GOLD NO.1 | |
| REF # | 41080A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,FR,LH,GOLD | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,FR,RH,GOLD | |
| REF # | 43041A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT-CALIPER | |
| REF # | 43045 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PACKING,SEAL,6.5X11.5X2.2 | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049C |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049D |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,DISC PLATE,8X30 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X6 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP,PAD | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,FR CALIPER,RH | |
| REF # | 92144A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X37 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X40 | |
| REF # | 92150A |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
