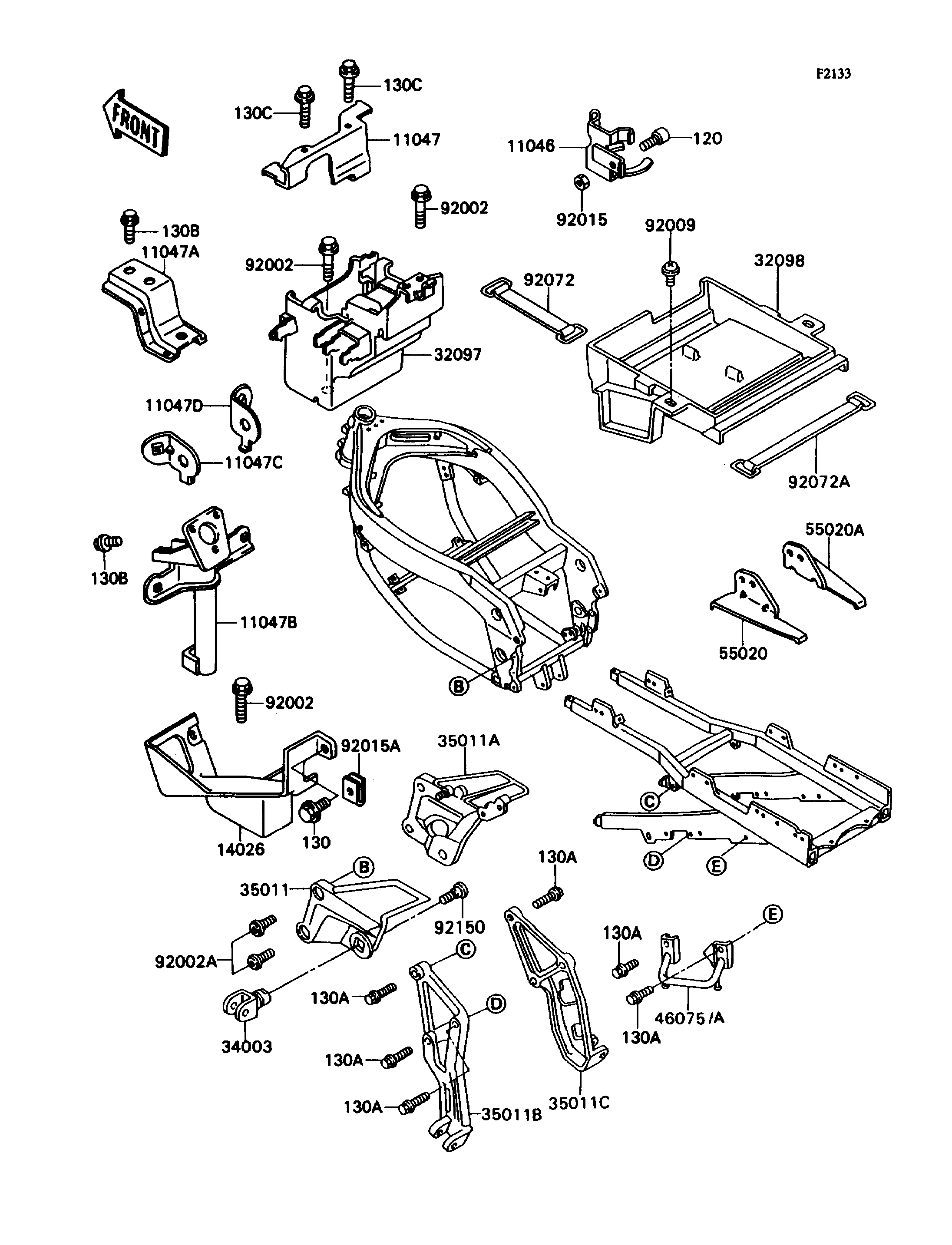

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,SEPARATOR | 11046 | 11046-1530 | 1 | CA | |
| BRACKET,FUEL PUMP | 11047 | 11046-1987 | 1 | ||
| BRACKET,BATTERY CASE | 11047A | 11046-1988 | 1 | ||
| BRACKET,RADIATOR,LWR | 11047B | 11046-1989 | 1 | ||
| BRACKET,RADIATOR,UPP,LH | 11047C | 11047-1003 | 1 | ||
| BRACKET,RADIATOR,UPP,RH | 11047D | 11047-1004 | 1 | ||
| COVER-CHAIN | 14026 | 14026-1162 | 1 | ||
| CASE-BATTERY | 32097 | 32097-1138 | 1 | ||
| CASE-TOOL | 32098 | 32098-1084 | 1 | ||
| HOLDER-STEP | 34003 | 34003-1327 | 2 | ||
| STAY,FR,LH,SILVER NO.25 | 35011 | 35011-1477-CE | 1 | ||
| STAY,FR,RH,SILVER NO.25 | 35011A | 35011-1478-CE | 1 | ||
| STAY,RR,LH | 35011B | 35011-1479 | 1 | ||
| STAY,RR,RH | 35011C | 35011-1480 | 1 | ||
| GRIP,LH | 46075 | 46075-1081 | 1 | ||
| GRIP,RH | 46075A | 46075-1082 | 1 | ||
| GUARD,SEAT LOCK,LH | 55020 | 55020-1359 | 1 | ||
| GUARD,SEAT LOCK,RH | 55020A | 55020-1360 | 1 | ||
| BOLT,6X16 | 92002 | 92001-1950 | 5 | ||
| BOLT,SOCKET,8X20 | 92002A | 92002-1493 | 4 | ||
| SCREW,6X14,BLACK | 92009 | 92009-1308 | 4 | ||
| NUT,FLANGED,6MM | 92015 | 92015-1367 | 1 | CA | |
| NUT,6MM | 92015A | 92015-1602 | 2 | ||
| BAND,BATTERY,L=105 | 92072 | 92072-1173 | 1 | ||
| BAND,TOOL CASE | 92072A | 92072-1242 | 1 | ||
| BOLT,SOCKET,10X25 | 92150 | 92150-1268 | 2 | ||
| BOLT-SOCKET,6X14,BLACK | 120 | 120S0614 | 1 | CA | |
| BOLT-FLANGED,6X14 | 130 | 130H0614 | 1 | ||
| BOLT-FLANGED,8X20 | 130A | 130H0820 | 10 | ||
| BOLT-FLANGED | 130B | 130J0610 | 5 | ||
| BOLT-FLANGED,6X16,BLACK | 130C | 130J0616 | 2 |
