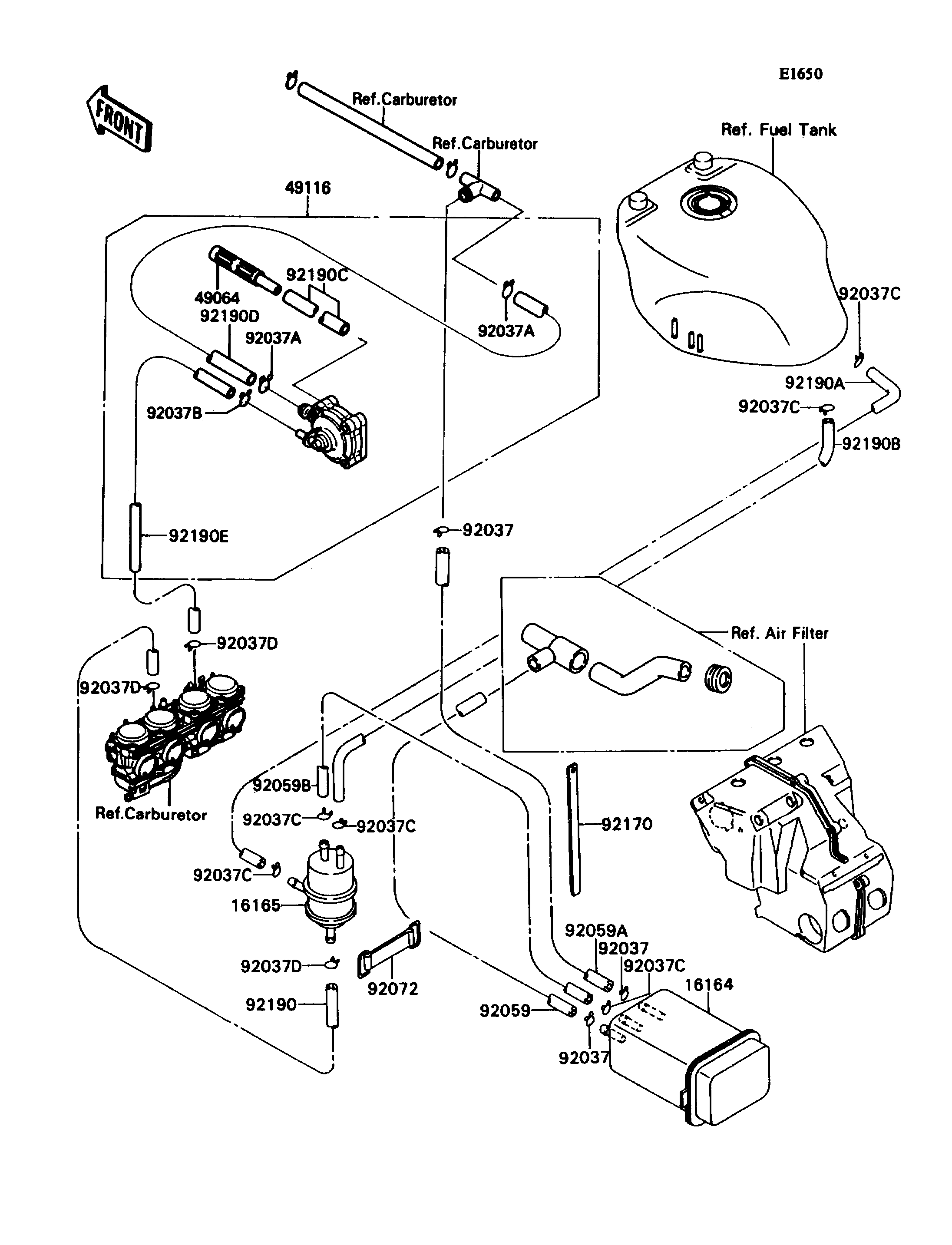

1990 Ninja® ZX™-7 - Fuel Evaporative System
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CANISTER | 16164 | 16164-1052 | 1 | CA | |
| SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
| FILTER-AIR,VALVE | 49064 | 49064-1051 | 1 | CA | |
| VALVE-ASSY | 49116 | 49116-1078 | 1 | CA | |
| CLAMP,HOSE | 92037 | 92037-1104 | 3 | CA | |
| CLAMP,TUBE | 92037A | 92037-1194 | 2 | CA | |
| CLAMP,TUBE | 92037B | 92037-1396 | 1 | CA | |
| CLAMP,TUBE | 92037C | 92037-147 | 6 | CA | |
| CLAMP | 92037D | 92037-1712 | 3 | CA | |
| TUBE,7X12X1060,GREEN | 92059 | 92059-1421 | 1 | CA | |
| TUBE,7X12X1000,YELLOW | 92059A | 92059-1605 | 1 | CA | |
| TUBE,5X10X400,BLUE | 92059B | 92059-1829 | 1 | CA | |
| BAND,L=50 | 92072 | 92072-066 | 1 | CA | |
| CLAMP | 92170 | 92170-1114 | 1 | CA | |
| TUBE,5X10X1200,WHITE | 92190 | 92059-1998 | 1 | CA | |
| TUBE,5X10X900,RED | 92190A | 92190-1006 | 1 | CA | |
| TUBE,5X10X1000,BLUE | 92190B | 92190-1007 | 1 | CA | |
| TUBE,7X11X340 | 92190C | 92190-1057 | 1 | CA | |
| TUBE,7X11X170 | 92190D | 92190-1058 | 1 | CA | |
| TUBE,3.5X7.5X210 | 92190E | 92190-1059 | 1 | CA |
