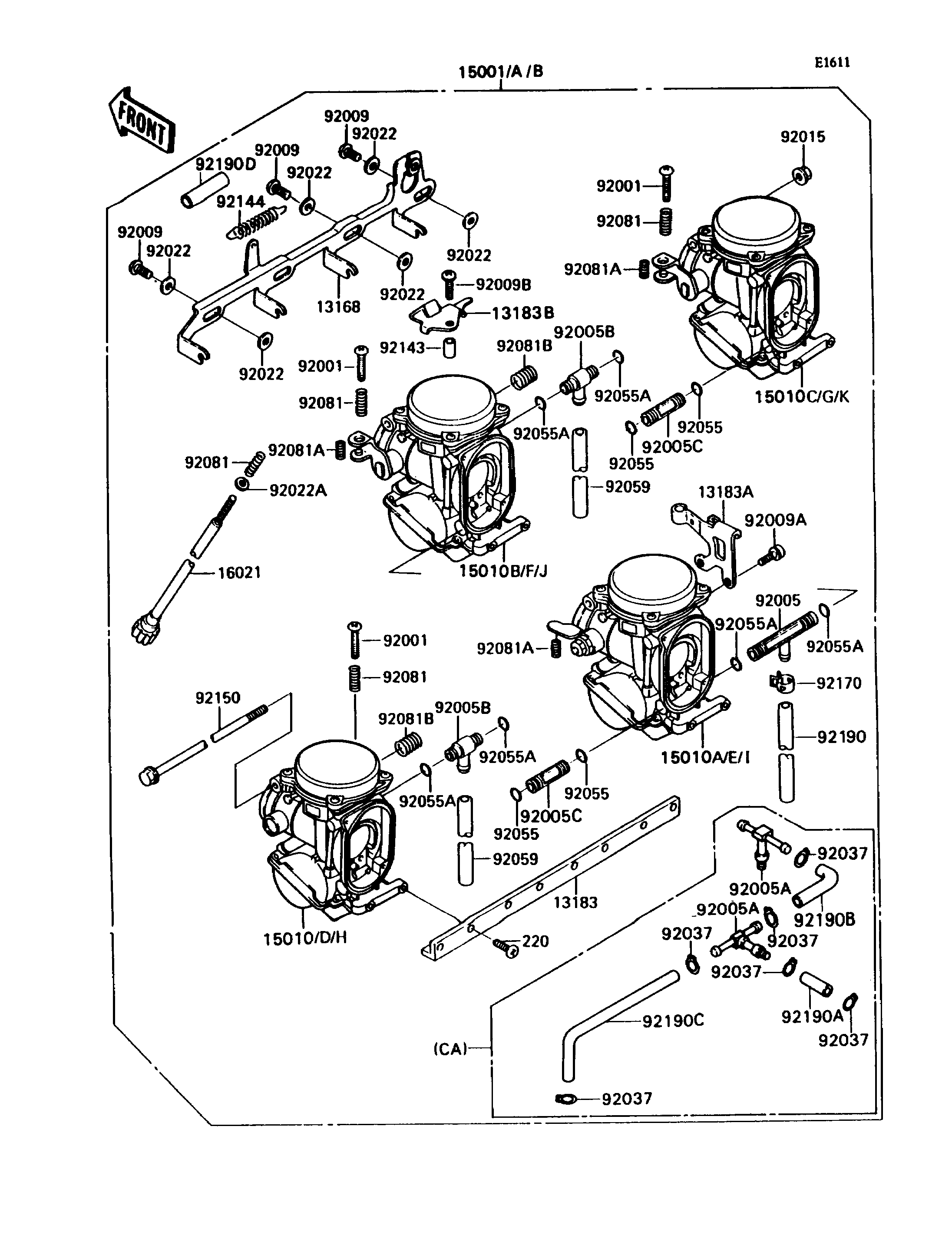

ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
LEVER,STARTER | 13168 | 13168-1405 | 1 | ||
PLATE,CARBURETOR,STAY | 13183 | 13183-1321 | 1 | ||
PLATE,THROTTLE | 13183A | 13183-1322 | 1 | ||
PLATE,STARTER CABLE | 13183B | 13183-1592 | 1 | ||
CARBURETOR-ASSY | 15001 | 15001-1588 | 1 | US | |
CARBURETOR-ASSY | 15001A | 15001-1609 | 1 | CN | |
CARBURETOR-ASSY | 15001B | 15001-1611 | 1 | CA | |
CARBURETOR,LH,OUTSIDE | 15010 | 15002-1978 | 1 | US | |
CARBURETOR,LH,INSIDE | 15010A | 15002-1979 | 1 | US | |
CARBURETOR,RH,INSIDE | 15010B | 15002-1980 | 1 | US | |
CARBURETOR,RH,OUTSIDE | 15010C | 15002-1981 | 1 | US | |
CARBURETOR,LH,OUTSIDE | 15010D | 15002-1982 | 1 | CN | |
CARBURETOR,LH,INSIDE | 15010E | 15002-1983 | 1 | CN | |
CARBURETOR,RH,INSIDE | 15010F | 15002-1984 | 1 | CN | |
CARBURETOR,RH,OUTSIDE | 15010G | 15002-1985 | 1 | CN | |
CARBURETOR,LH,OUTSIDE | 15010H | 15002-1990 | 1 | CA | |
CARBURETOR,LH,INSIDE | 15010I | 15002-1991 | 1 | CA | |
CARBURETOR,RH,INSIDE | 15010J | 15002-1992 | 1 | CA | |
CARBURETOR,RH,OUTSIDE | 15010K | 15002-1993 | 1 | CA | |
SCREW-THROTTLE STOP | 16021 | 16021-1131 | 1 | ||
BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
FITTING,FUEL,T-TYPE | 92005 | 92005-1108 | 1 | ||
FITTING,T-TYPE | 92005A | 92005-1119 | 2 | CA | |
FITTING,T-TYPE | 92005B | 92005-1125 | 2 | ||
FITTING | 92005C | 92005-1157 | 2 | ||
SCREW | 92009 | 92009-1262 | 3 | ||
SCREW,5X10 | 92009A | 92009-1365 | 1 | ||
SCREW,4X18 | 92009B | 92009-1446 | 1 | ||
NUT,FLANGED,5MM | 92015 | 92015-1259 | 1 | ||
WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
WASHER,PLAIN,STOP SPRING | 92022A | 92022-1480 | 1 | ||
CLAMP,TUBE | 92037 | 92037-1194 | 6 | CA | |
RING-O | 92055 | 92055-1004 | 4 | ||
RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | ||
TUBE,6.5X9.5X100 | 92059 | 92059-1975 | 2 | ||
SPRING,THROTTLE ADJUST UPP | 92081 | 92081-1620 | 4 | ||
SPRING,THROTTLE ADJUST LWR | 92081A | 92081-1621 | 3 | ||
SPRING,THROTTLE ADJUST CNT | 92081B | 92081-1622 | 2 | ||
COLLAR,4X5.2X9.6 | 92143 | 92143-1265 | 1 | ||
SPRING,STARTER LEVER | 92144 | 92144-1518 | 1 | ||
BOLT,5X305 | 92150 | 92150-1211 | 1 | ||
CLAMP,TUBE | 92170 | 92170-1051 | 1 | ||
TUBE,7.3X12.5X320 | 92190 | 92190-1049 | 1 | ||
TUBE,7X11X30 | 92190A | 92190-1050 | 1 | CA | |
TUBE,7X11X140 | 92190B | 92190-1051 | 1 | CA | |
TUBE,7X11X190 | 92190C | 92190-1052 | 1 | CA | |
TUBE,STARTER SPRING | 92190D | 92190-1157 | 1 | ||
SCREW-PAN-CROS,5X14 | 220 | 220D0514 | 8 |
