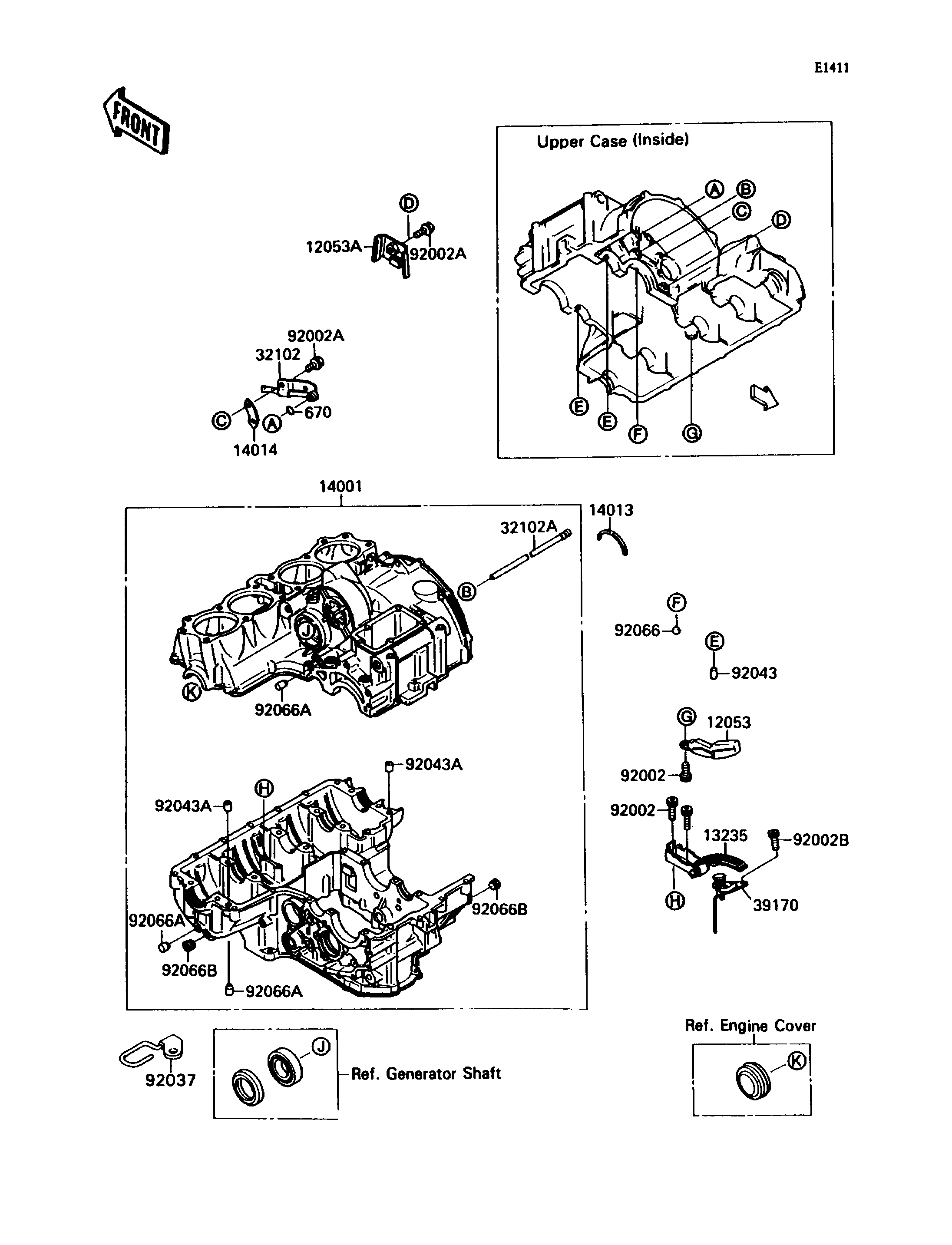

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE-CHAIN | 12053 | 12053-1197 | 1 | ||
| GUIDE-CHAIN | 12053A | 12053-1199 | 1 | ||
| GUIDE-COMP,TENSIONER | 13235 | 13235-1059 | 1 | ||
| SET-CRANKCASE | 14001 | 14001-5268 | 1 | ||
| RING-POSITION,T=1.98 | 14013 | 14013-1004 | 2 | ||
| PLATE-POSITION | 14014 | 14014-1056 | 1 | ||
| PIPE,OIL | 32102 | 32102-1237 | 1 | ||
| PIPE,MISSION OIL | 32102A | 32102-1238 | 1 | ||
| TENSIONER-COMP | 39170 | 39170-1056 | 1 | ||
| BOLT,SOCKET,6X14 | 92002 | 92002-1592 | 3 | ||
| BOLT,6X14 | 92002A | 92002-1656 | 4 | ||
| BOLT,SOCKET,6X12 | 92002B | 92002-1796 | 2 | ||
| CLAMP | 92037 | 92037-1802 | 1 | ||
| PIN,DOWEL,6X16 | 92043 | 92042-016 | 2 | ||
| PIN,DOWEL,10X14 | 92043A | 92043-1037 | 2 | ||
| PLUG,RUBBER BALL,6.7 | 92066 | 92066-057 | 1 | ||
| PLUG,OIL LINE,7.2X8 | 92066A | 92066-1012 | 5 | ||
| PLUG | 92066B | 92066-1262 | 3 | ||
| O RING | 670 | 670D1505 | 1 |
