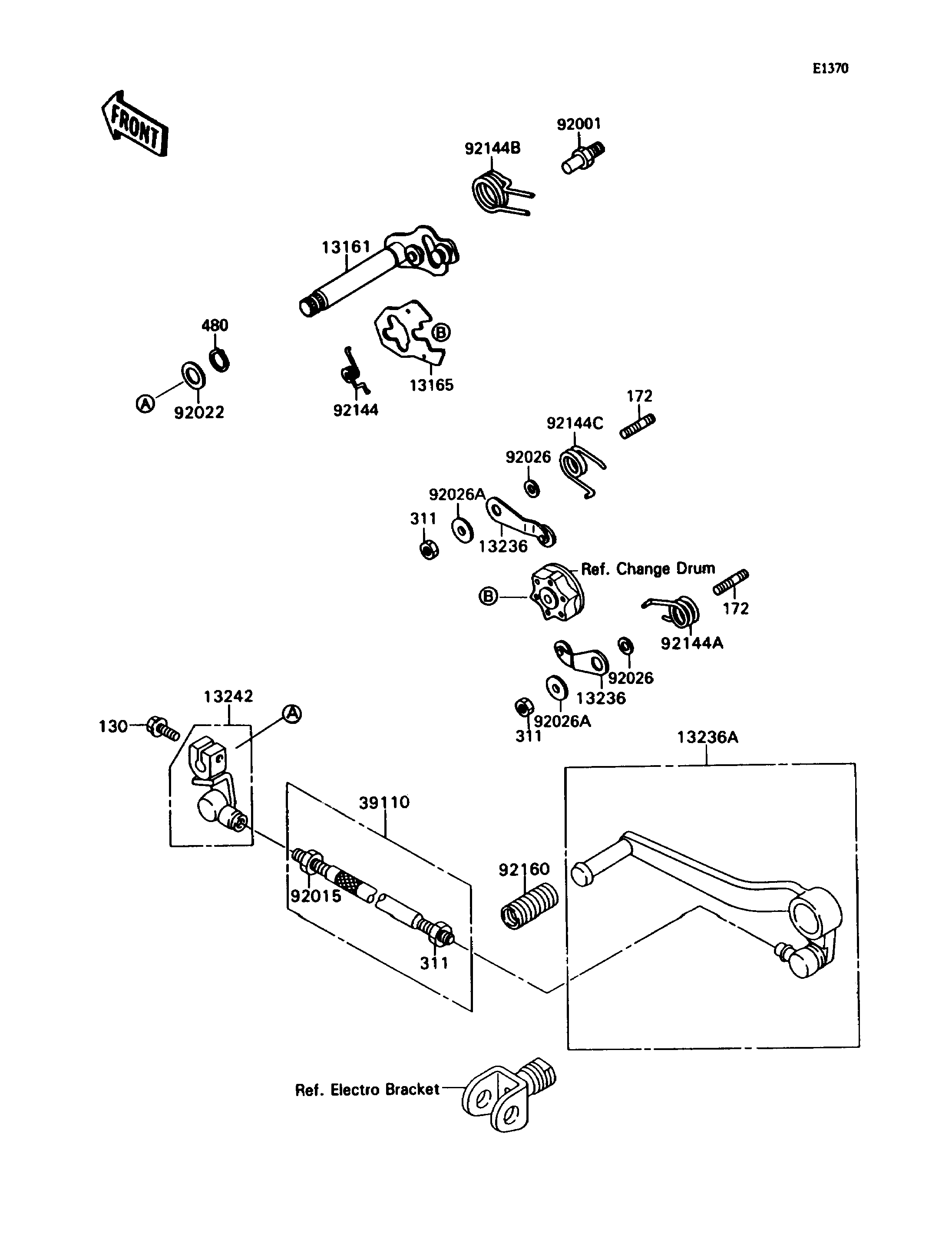

1990 Ninja® ZX™-7 - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LEVER-COMP-CHANGE SHAFT | 13161 | 13161-1168 | 1 | ||
| PAWL | 13165 | 13165-1120 | 1 | ||
| LEVER-COMP,POSITION | 13236 | 13236-1149 | 2 | ||
| LEVER-COMP,CHANGE PEDAL | 13236A | 13236-1204 | 1 | ||
| LEVER-ASSY-CHANGE,LINK | 13242 | 13242-1278 | 1 | ||
| ROD-ASSY-TIE | 39110 | 39110-1089 | 1 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| NUT | 92015 | 92015-1125 | 1 | ||
| WASHER,13.3X20X1 | 92022 | 92022-1496 | 1 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 2 | ||
| SPACER | 92026A | 92026-1217 | 2 | ||
| SPRING | 92144 | 92144-1029 | 1 | ||
| SPRING,NEUTRAL POSITION | 92144A | 92144-1030 | 1 | ||
| SPRING,CHANGE PEDAL RETURN | 92144B | 92144-1074 | 1 | ||
| SPRING,GEAR POSITION | 92144C | 92144-1429 | 1 | ||
| DAMPER,CHANGE PEDAL | 92160 | 92160-1036 | 1 | ||
| BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 | ||
| BOLT-STUD,6X12 | 172 | 172G0612 | 2 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 3 | ||
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 |
