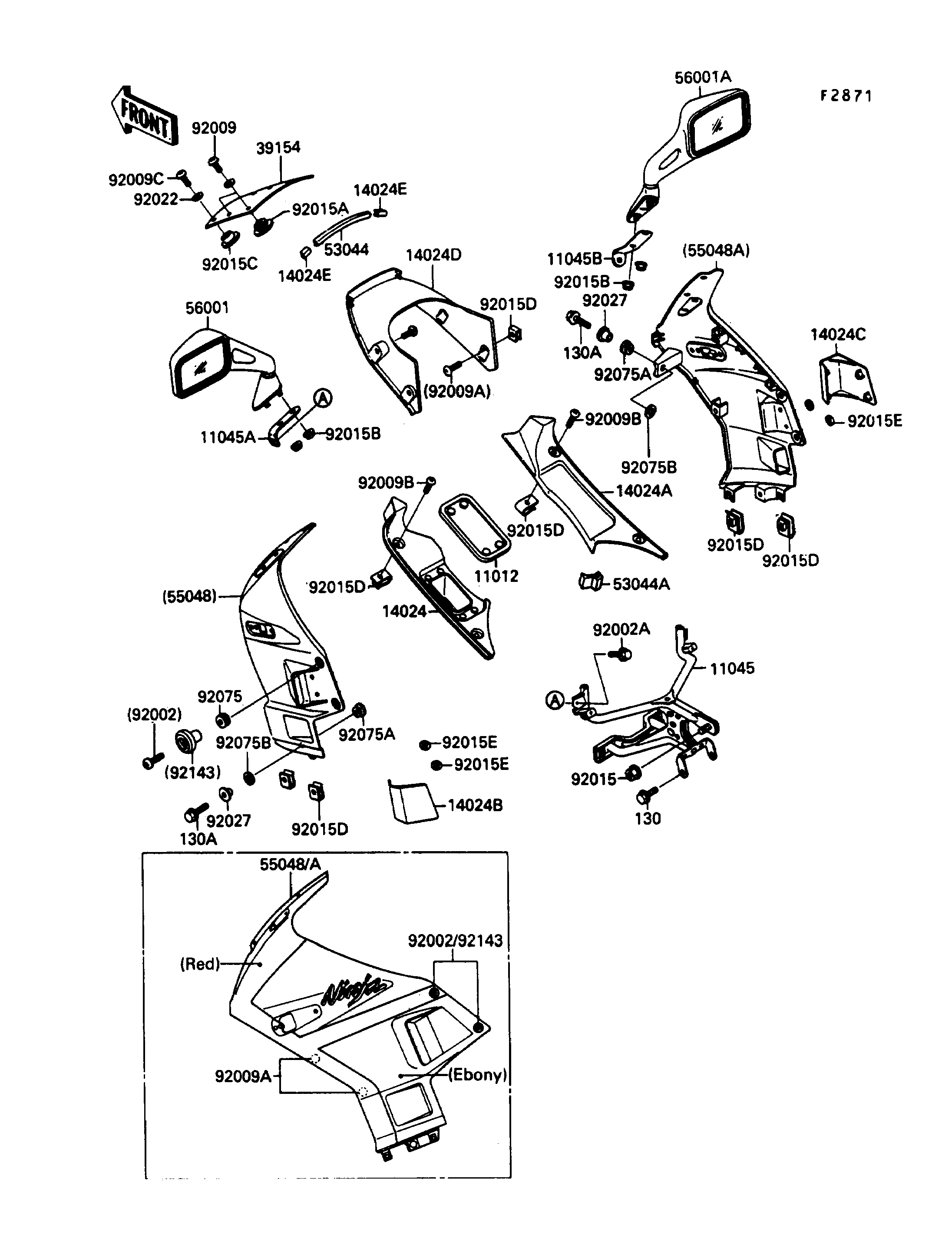

1990 Ninja® 750R - Cowling

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,INNER COWLING COVER 11012 11012-1570 1
BRACKET,COWLING STAY 11045 11045-1270 1
BRACKET,MIRROR,LH 11045A 11045-1412 1
BRACKET,MIRROR,RH 11045B 11045-1413 1
COVER,INNER COWLING,LH 14024 14024-1380 1
COVER,INNER COWLING,RH 14024A 14024-1381 1
COVER,HEAT GUARD,LH 14024B 14024-1417 1
COVER,HEAT GUARD,RH 14024C 14024-1418 1
COVER,HEAD LAMP,F.RED 14024D 14024-1677-B1 1
COVER,TRIM END 14024E 14025-1756 2
WINDSHIELD 39154 39154-1093 1
TRIM,WINDSHIELD,L=345 53044 53044-1177 1
TRIM,INNER COWLING COVER 53044A 53044-1195 2
COWLING.,UPP,LH,EBONY/RED 55048 55048-5042-J3 1
COWLING.,UPP,RH,EBONY/RED 55048A 55048-5043-J3 1
MIRROR-ASSY,LH,EBONY 56001 56001-1325-6C 1
MIRROR-ASSY,RH,EBONY 56001A 56001-1326-6C 1
BOLT,SOCKET,6X18,BLACK 92002 92002-1514 4
BOLT,6X12 92002A 92002-1884 2
SCREW,5X10 92009 92009-1335 4
SCREW,5X14,WHITE 92009A 92009-1366 4
SCREW,5X14,BLACK 92009B 92009-1383 8
SCREW,5X20,BLACK 92009C 92009-1453 2
NUT,FLANGED,8MM,BLACK 92015 92015-1183 1
NUT,5MM,COWLING 92015A 92015-1343 4
NUT,FLANGED,6MM 92015B 92015-1367 4
NUT,WELL,5MM 92015C 92015-1640 2
NUT,5MM 92015D 92015-1710 6
NUT,LOCK,5MM 92015E 92018-004 4
WASHER,NYLON,5.3X11.5X1.5 92022 92022-1521 6
COLLAR,L=13.1,BLACK 92027 92027-1450 4
DAMPER 92075 92075-1634 4
DAMPER,MALE 92075A 92075-174 4
DAMPER,FEMALE 92075B 92075-175 4
COLLAR,BLACK 92143 92143-1226 4
BOLT-FLANGED 130 130J0610 2
BOLT-FLANGED,6X25 130A 130J0625 4
