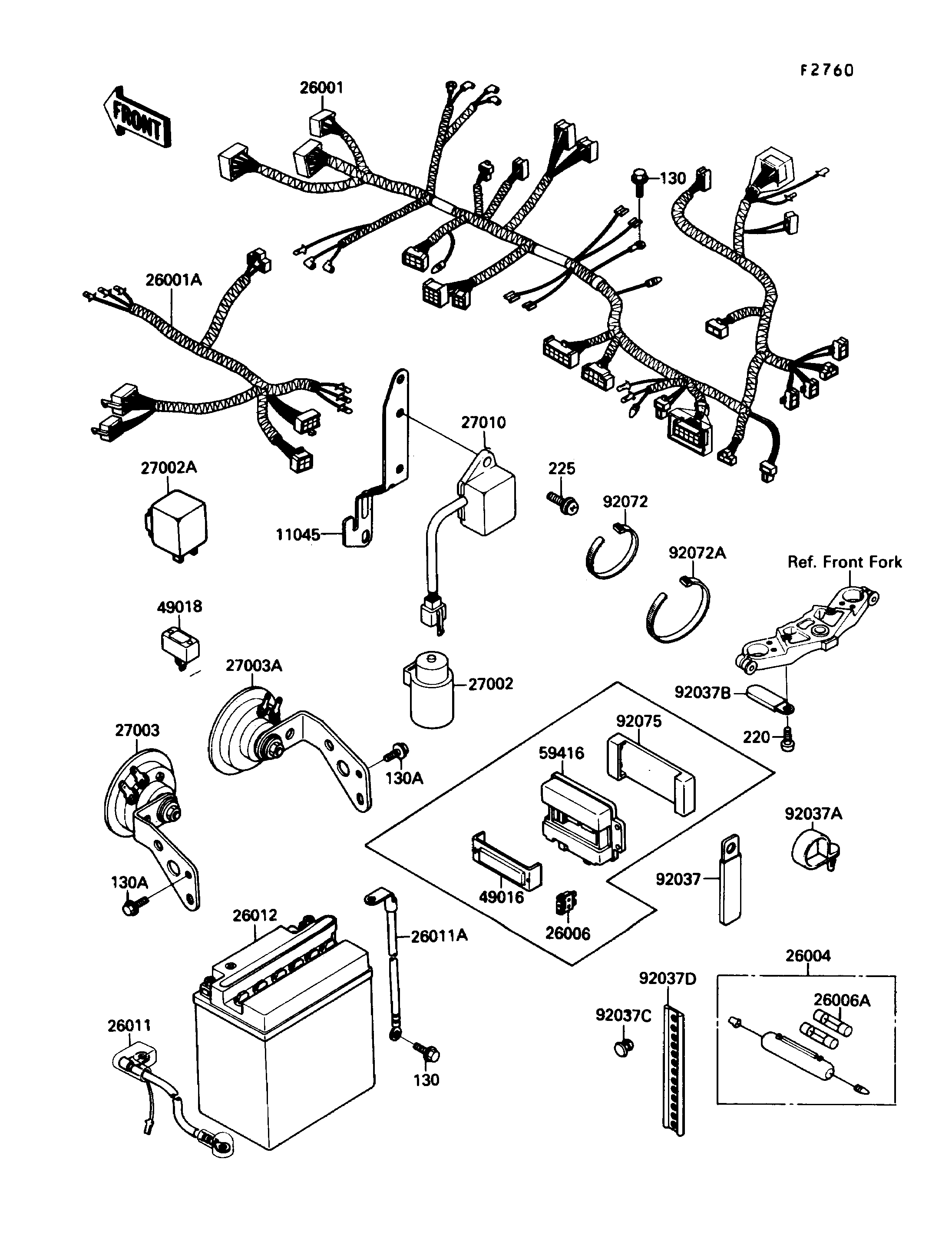

1990 Ninja® 750R - Chassis Electrical Equipment
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,RELAY | 11045 | 11045-1369 | 1 | ||
| HARNESS,MAIN | 26001 | 26001-1819 | 1 | ||
| HARNESS,FR | 26001A | 26001-1841 | 1 | ||
| FUSE-ASSY | 26004 | 26004-1075 | 1 | ||
| FUSE,10A-R | 26006 | 26006-1007 | 6 | ||
| FUSE,30A,L=30 | 26006A | 26006-1059 | 2 | ||
| WIRE-LEAD,BATTERY(+) | 26011 | 26011-1377 | 1 | ||
| WIRE-LEAD,BATTERY(-) | 26011A | 26011-1395 | 1 | ||
| BATTERY,12V 14AH,YB14L-A2 | 26012 | 26012-1233 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
| RELAY-ASSY,TURN SIGNAL | 27002A | 27002-1061 | 1 | ||
| HORN,LH,LOW TONE | 27003 | 27003-1271 | 1 | ||
| HORN,RH,HIGH TONE | 27003A | 27003-1272 | 1 | ||
| SWITCH,RESERV LIGHTING | 27010 | 27010-1066 | 1 | ||
| COVER-SEAL,JUNCTION BOX | 49016 | 49016-1128 | 1 | ||
| DIODE | 49018 | 49018-1055 | 1 | ||
| CASE-ELECTRIC,JUNCTION BOX | 59416 | 59416-1064 | 1 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1069 | 4 | ||
| CLAMP,HOSE | 92037A | 92037-1163 | 5 | ||
| CLAMP,WIRING HARNESS | 92037B | 92037-1539 | 5 | ||
| CLAMP | 92037C | 92037-1579 | 2 | ||
| CLAMP,BAND,L=72 | 92037D | 92037-1883 | 1 | ||
| BAND,L=149 | 92072 | 92072-031 | 1 | ||
| BAND,L=185 | 92072A | 92072-1195 | 5 | ||
| DAMPER,JUNCTION BOX | 92075 | 92075-1688 | 1 | ||
| BOLT-FLANGED,6X10 | 130 | 130B0610 | 2 | ||
| BOLT-FLANGED | 130A | 130J0610 | 2 | ||
| SCREW-PAN-CROS | 220 | 220C0510 | 1 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0620 | 2 |
