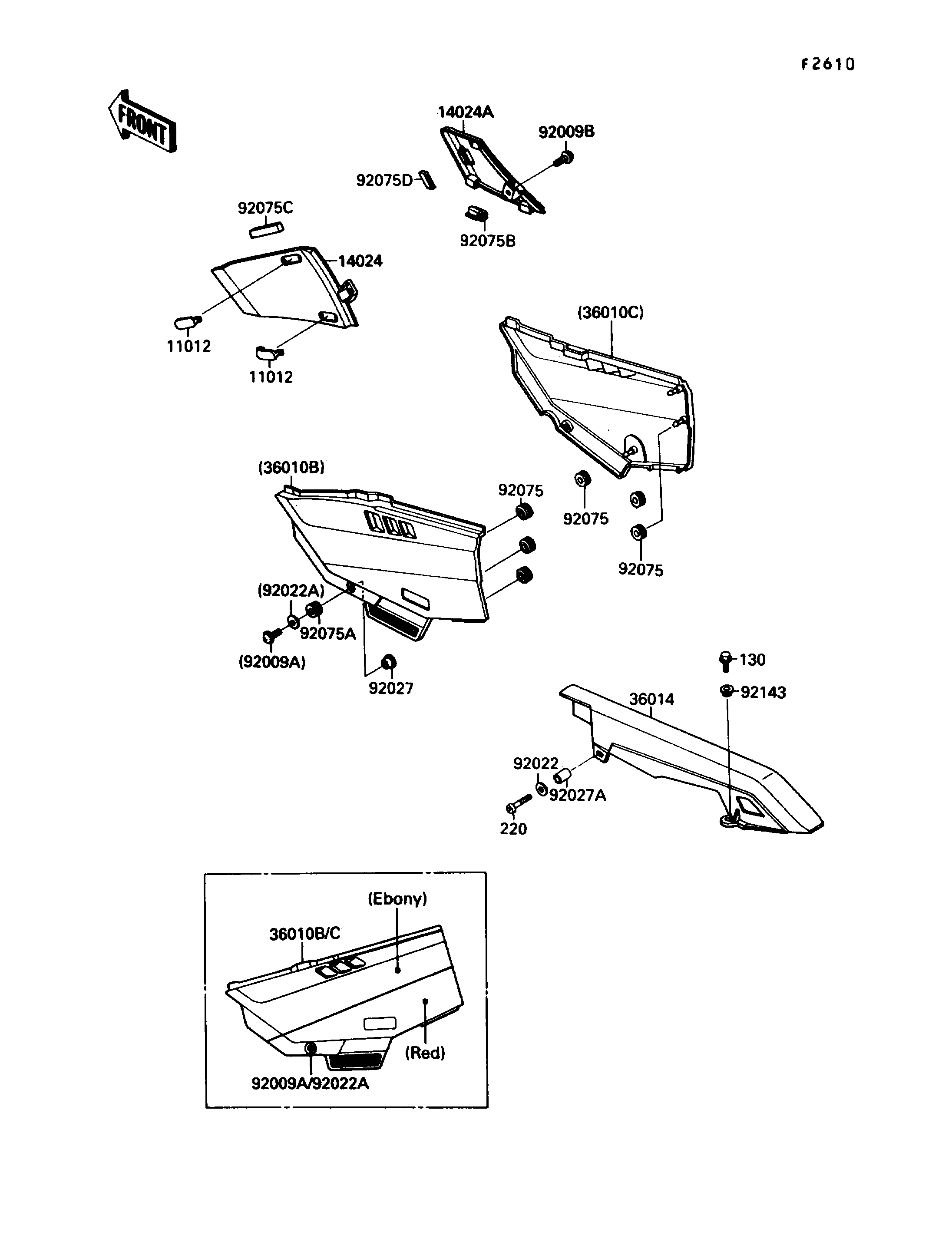

1990 Ninja® 750R - Side Covers/Chain Cover
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,KNEEGRIP COVER,EBONY | 11012 | 11012-1551-6C | 4 | ||
| COVER,KNEEGRIP,LH,EBONY | 14024 | 14024-1344-H8 | 1 | ||
| COVER,KNEEGRIP,RH,EBONY | 14024A | 14024-1345-H8 | 1 | ||
| COVER-SIDE,LH,EBONY/RED(BLACK) | 36010B | 36010-5128-J3 | 1 | ||
| COVER-SIDE,RH,EBONY/RED(BLACK) | 36010C | 36010-5129-J3 | 1 | ||
| CASE-CHAIN | 36014 | 36014-1142 | 1 | ||
| SCREW,6X18,BLACK | 92009A | 92009-1181 | 2 | ||
| SCREW,6X14 | 92009B | 92009-1288 | 2 | ||
| WASHER,6.5X20X1.6,BLACK | 92022 | 92022-1346 | 1 | ||
| WASHER,6.5X20X1.6,BLACK | 92022A | 92022-1619 | 2 | ||
| COLLAR,L=9.1,WHITE | 92027 | 92027-1795 | 2 | ||
| COLLAR,6.8X10X20 | 92027A | 92027-1856 | 1 | ||
| DAMPER | 92075 | 92075-1067 | 6 | ||
| DAMPER | 92075A | 92075-1634 | 2 | ||
| DAMPER,KNEEGRIP COVER,LWR | 92075B | 92075-1874 | 2 | ||
| DAMPER | 92075C | 92075-1914 | 2 | ||
| DAMPER,KNEEGRIP COVER,FR | 92075D | 92075-1923 | 2 | ||
| COLLAR,L=6.6 | 92143 | 92143-1088 | 1 | ||
| BOLT-FLANGED,6X14,BLACK | 130 | 130J0614 | 1 | ||
| SCREW-PAN-CROS,6X35,BLACK | 220 | 220C0635 | 1 |
