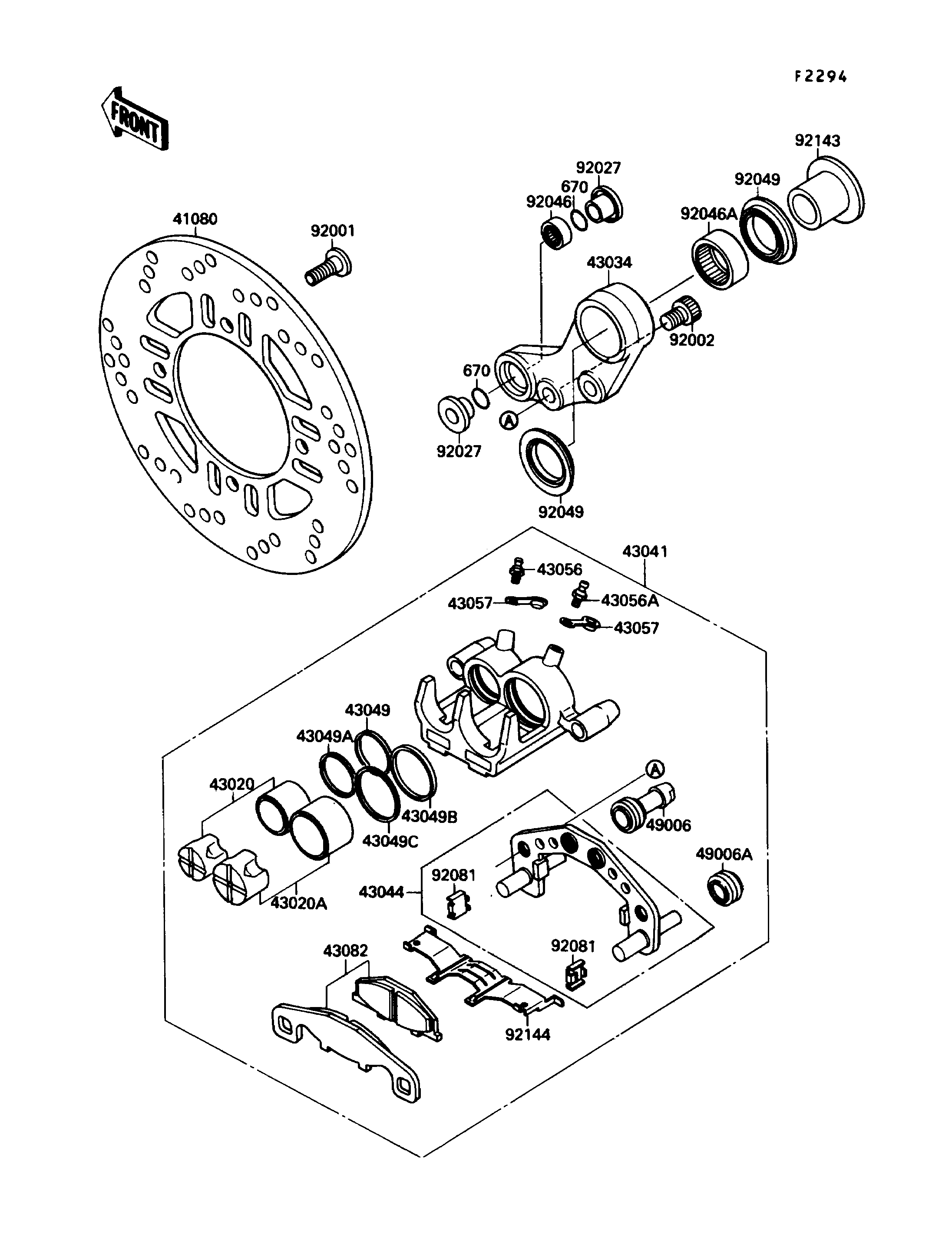

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DISC,RR,SILVER NO.1 | 41080 | 41080-1177-CM | 1 | ||
| PISTON-COMP-BRAKE | 43020 | 43020-1068 | 1 | ||
| PISTON-COMP-BRAKE | 43020A | 43020-1069 | 1 | ||
| HOLDER-BRAKE,REAR CALIPER | 43034 | 43034-1077 | 1 | ||
| CALIPER-ASSY,RR,BLACK | 43041 | 43041-1321-DJ | 1 | ||
| HOLDER-COMP-CALIPER | 43044 | 43044-1067 | 1 | ||
| PACKING,PISTON SEAL | 43049 | 43049-1054 | 1 | ||
| PACKING,PISTON | 43049A | 43049-1055 | 1 | ||
| PACKING,PISTON SEAL | 43049B | 43049-1056 | 1 | ||
| PACKING,PISTON | 43049C | 43049-1057 | 1 | ||
| BREATHER | 43056 | 43056-003 | 1 | ||
| BREATHER-BRAKE | 43056A | 43056-1054 | 1 | ||
| CAP-BREATHER | 43057 | 43057-003 | 2 | ||
| PAD-ASSY-BRAKE | 43082 | 43082-1069 | 1 | ||
| BOOT,CALIPER | 49006 | 49006-1094 | 1 | ||
| BOOT,CALIPER | 49006A | 49006-1095 | 1 | ||
| BOLT,DISC PLATE,8X30 | 92001 | 92001-1951 | 4 | ||
| BOLT,SOCKET,10X17 | 92002 | 92002-1713 | 2 | ||
| COLLAR,L=11.5 | 92027 | 92027-1040 | 2 | ||
| BEARING-NEEDLE,HK1216LL | 92046 | 92046-1009 | 1 | ||
| BEARING-NEEDLE,BM283417 | 92046A | 92046-1111 | 1 | ||
| SEAL-OIL | 92049 | 92049-1181 | 2 | ||
| SPRING,PAD STOPPER | 92081 | 92081-1661 | 2 | ||
| COLLAR,L=35 | 92143 | 92143-1043 | 1 | ||
| SPRING,PAD | 92144 | 92144-1070 | 1 | ||
| O RING,11MM | 670 | 670B2011 | 2 |
| DISC,RR,SILVER NO.1 | |
| REF # | 41080 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON-COMP-BRAKE | |
| REF # | 43020A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-BRAKE,REAR CALIPER | |
| REF # | 43034 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CALIPER-ASSY,RR,BLACK | |
| REF # | 43041 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-COMP-CALIPER | |
| REF # | 43044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON SEAL | |
| REF # | 43049B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PACKING,PISTON | |
| REF # | 43049C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER | |
| REF # | 43056 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BREATHER-BRAKE | |
| REF # | 43056A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP-BREATHER | |
| REF # | 43057 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PAD-ASSY-BRAKE | |
| REF # | 43082 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOOT,CALIPER | |
| REF # | 49006A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,DISC PLATE,8X30 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,10X17 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=11.5 | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,HK1216LL | |
| REF # | 92046 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BEARING-NEEDLE,BM283417 | |
| REF # | 92046A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL-OIL | |
| REF # | 92049 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD STOPPER | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=35 | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,PAD | |
| REF # | 92144 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| O RING,11MM | |
| REF # | 670 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
