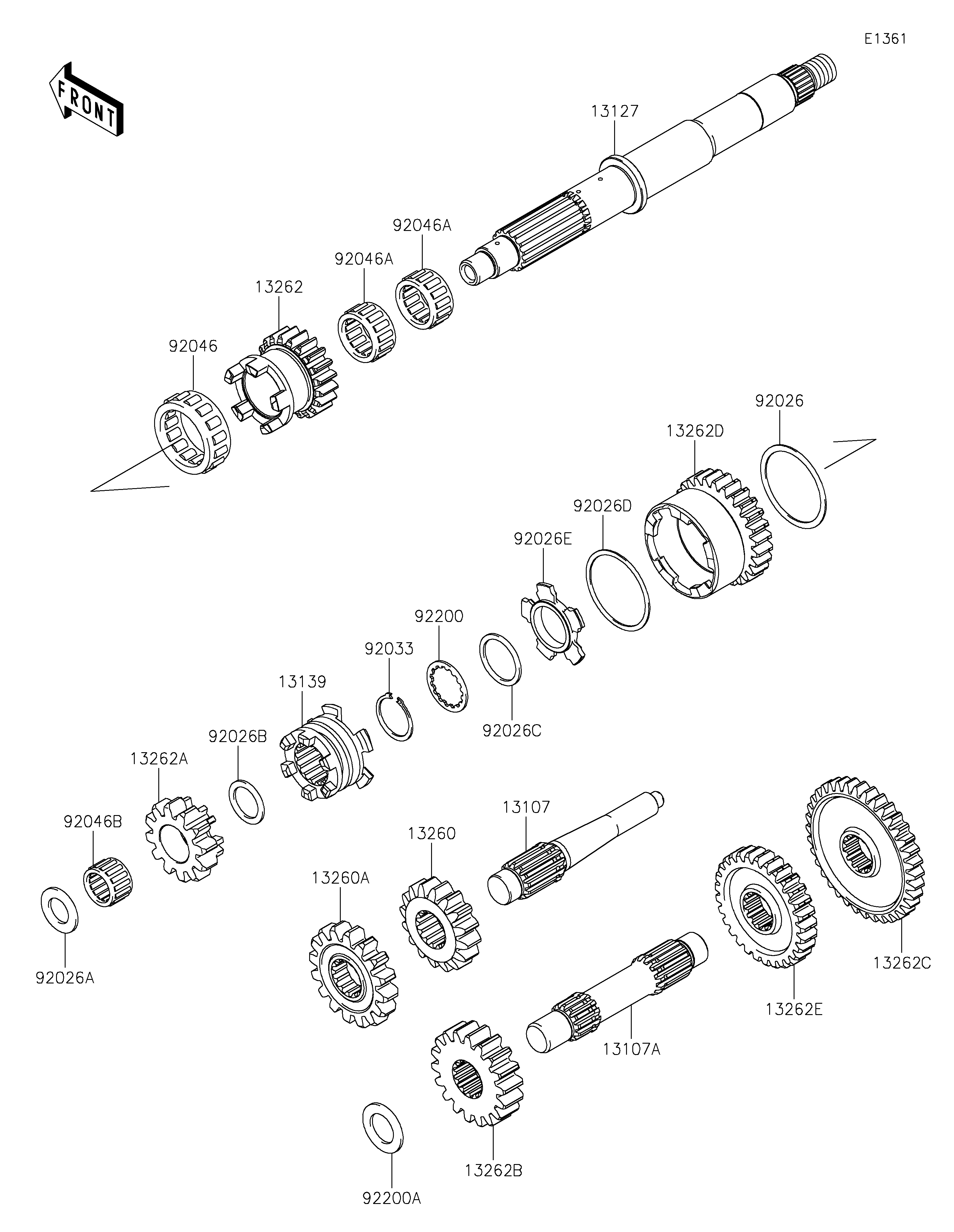

2024 BRUTE FORCE® 750 LE EPS - Transmission

DOWNLOAD PDF
SELECT A NEW PART
13107
13107A
13127
13139
13260
13260A
13262
13262A
13262B
13262C
13262D
13262E
92026
92026A
92026B
92026C
92026D
92026E
92033
92046
92046A
92046A
92046B
92200
92200A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT,REVERSE,IDLE 13107 13107-0754 1
SHAFT,COUNTER 13107A 13107-0755 1
SHAFT-TRANSMISSION INPUT 13127 13127-0053 1
SHIFTER 13139 13139-0626 1
GEAR,OUTPUT REVERSE,16T 13260 13260-1872 1
GEAR,DRIVEN REVERSE,16T 13260A 13260-1873 1
GEAR,INPUT LOW,20T 13262 13262-0234 1
GEAR,INPUT REVERSE,12T 13262A 13262-0235 1
GEAR,OUTPUT DRIVE,18T 13262B 13262-0432 1
GEAR,DRIVEN LOW,36T 13262C 13262-0794 1
GEAR,INPUT HI,27T 13262D 13262-0837 1
GEAR,DRIVEN HI,29T 13262E 13262-0838 1
SPACER,48.2X56X1.0 92026 92026-0163 1
SPACER,17.3X30X2.0 92026A 92026-1415 1
SPACER,21.2X29X1.6 92026B 92026-1568 1
SPACER,28.2X34.5X1.6 92026C 92026-1587 1
SPACER,48.2X54.3X1.0 92026D 92026-1599 1
SPACER,HI&LOW 92026E 92026-1600 1
RING-SNAP,25.9X30.6X1.2 92033 92033-1037 1
BEARING-NEEDLE,HIGH GEAR 92046 92046-1276 1
BEARING-NEEDLE,FWF-283317 92046A 92046-1278 2
BEARING-NEEDLE,REVERSE GEAR 92046B 92046-1279 1
WASHER,28.5X34.0X1.5 92200 92200-1240 1
WASHER,20.3X33X2.0 92200A 92200-1351 1
