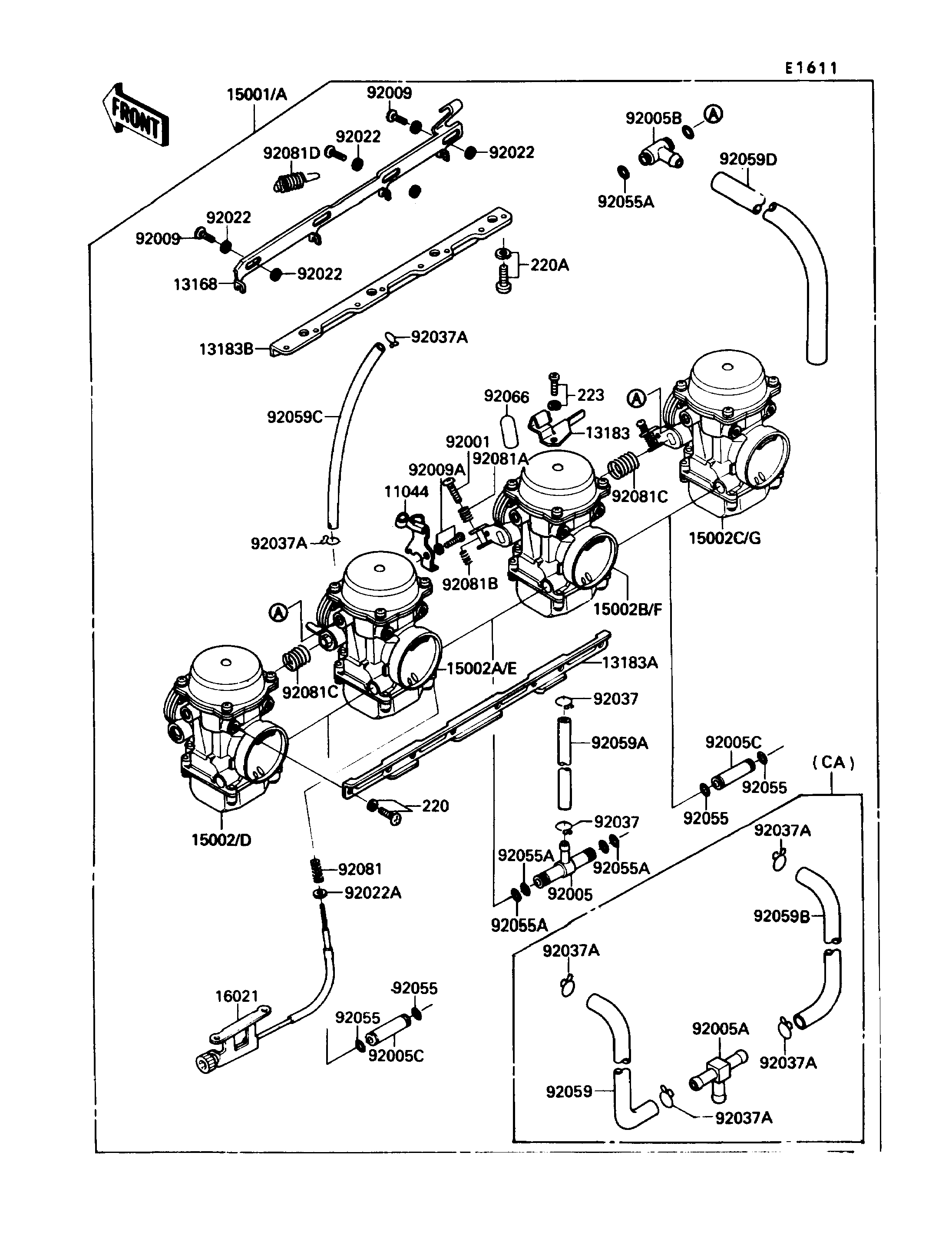

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,THROTTLE CABLE | 11044 | 11044-1546 | 1 | ||
| LEVER,STARTER | 13168 | 13168-1349 | 1 | ||
| PLATE,STARTER CABLE | 13183 | 13183-1033 | 1 | ||
| PLATE,CARBURETOR STAY,UPP | 13183A | 13183-1109 | 1 | ||
| PLATE,CARBURETOR STAY,LWR | 13183B | 13183-1110 | 1 | ||
| CARBURETOR-ASSY | 15001 | 15001-1274 | 1 | US | |
| CARBURETOR-ASSY | 15001A | 15001-1320 | 1 | CA | |
| CARBURETOR,LH,OUTSIDE | 15002 | 15002-1448 | 1 | CA | |
| CARBURETOR,LH,INSIDE | 15002A | 15002-1449 | 1 | CA | |
| CARBURETOR,RH,INSIDE | 15002B | 15002-1450 | 1 | CA | |
| CARBURETOR,RH,OUTSIDE | 15002C | 15002-1451 | 1 | CA | |
| CARBURETOR,LH,OUTSIDE | 15002D | 15002-1452 | 1 | US | |
| CARBURETOR,LH,INSIDE | 15002E | 15002-1453 | 1 | US | |
| CARBURETOR,RH,INSIDE | 15002F | 15002-1454 | 1 | US | |
| CARBURETOR,RH,OUTSIDE | 15002G | 15002-1455 | 1 | US | |
| SCREW-THROTTLE STOP | 16021 | 16021-1101 | 1 | ||
| BOLT,THROTTLE ADJUST | 92001 | 92001-1998 | 3 | ||
| FITTING,FUEL,T-TYPE | 92005 | 92005-1108 | 1 | ||
| FITTING,T-TYPE | 92005A | 92005-1119 | 1 | CA | |
| FITTING,T-TYPE | 92005B | 92005-1125 | 2 | ||
| FITTING | 92005C | 92005-1157 | 2 | ||
| SCREW | 92009 | 92009-1262 | 3 | ||
| SCREW,5X10 | 92009A | 92009-1365 | 1 | ||
| WASHER,6.1X11X0.8,POLYACETAL | 92022 | 92022-1199 | 6 | ||
| WASHER,PLAIN,STOP SPRING | 92022A | 92022-1480 | 1 | ||
| CLAMP,FUEL TUBE | 92037 | 92037-1075 | 2 | ||
| CLAMP,TUBE | 92037A | 92037-1194 | 6 | CA | |
| CLAMP,TUBE | 92037A | 92037-1194 | 2 | US | |
| RING-O | 92055 | 92055-1004 | 4 | ||
| RING-O,FUEL FITTING | 92055A | 92055-1223 | 8 | ||
| TUBE,7X11X200 | 92059 | 92059-1477 | 1 | CA | |
| TUBE,7.3X12.5X260 | 92059A | 92059-1492 | 1 | ||
| TUBE,7X11X180 | 92059B | 92059-1737 | 1 | CA | |
| TUBE,5.3X10.5X150 | 92059C | 92059-1813 | 1 | ||
| TUBE,AIR VENT | 92059D | 92059-1815 | 2 | US | |
| PLUG,12X25 | 92066 | 92068-006 | 1 | US | |
| SPRING,THROTTLE STOP SCREW | 92081 | 92081-1617 | 1 | ||
| SPRING,THROTTLE ADJUST UPP | 92081A | 92081-1620 | 3 | ||
| SPRING,THROTTLE ADJUST LWR | 92081B | 92081-1621 | 3 | ||
| SPRING,THROTTLE ADJUST CNT | 92081C | 92081-1622 | 2 | ||
| SPRING,STARTER LEVER | 92081D | 92081-1762 | 1 | ||
| SCREW-PAN-CROS | 220 | 220D0508 | 8 | ||
| SCREW-PAN-CROS,5X14 | 220A | 220D0514 | 8 | ||
| SCREW-PAN-WS-CROS | 223 | 223D0410 | 1 |
