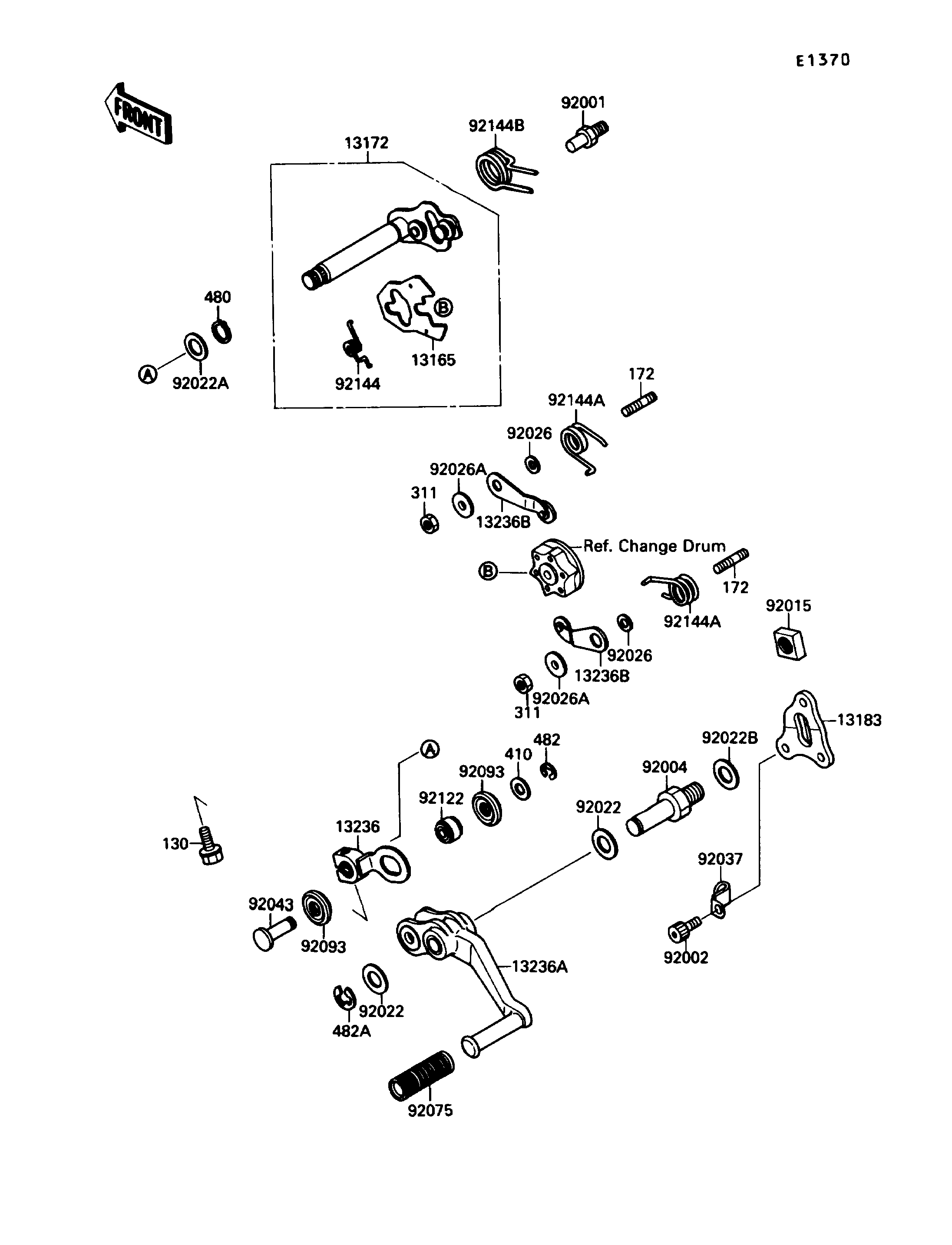

1990 Ninja® 750R - Gear Change Mechanism
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PAWL | 13165 | 13165-1120 | 1 | ||
| SHAFT-ASSY-CHANGE | 13172 | 13172-1064 | 1 | ||
| PLATE | 13183 | 13183-1026 | 1 | ||
| LEVER-COMP,CHANGE LINK | 13236 | 13236-1147 | 1 | ||
| LEVER-COMP,CHANGE PEDAL | 13236A | 13236-1148 | 1 | ||
| LEVER-COMP,POSITION | 13236B | 13236-1149 | 2 | ||
| BOLT,RETURN SPRING | 92001 | 92001-1455 | 1 | ||
| BOLT,SOCKET,6X14 | 92002 | 92002-1592 | 3 | ||
| STUD,CHANGE PEDAL,PIVOT | 92004 | 92004-1163 | 1 | ||
| NUT,12MM | 92015 | 92015-1605 | 1 | ||
| WASHER,12.3X22X1.6 | 92022 | 92022-1065 | 2 | ||
| WASHER,13.3X20X1 | 92022A | 92022-1496 | 1 | ||
| WASHER,12.3X25X3.2 | 92022B | 92022-1862 | 1 | ||
| SPACER,6.3X12X1.0 | 92026 | 92026-094 | 2 | ||
| SPACER | 92026A | 92026-1217 | 2 | ||
| CLAMP,WIRING HARNESS | 92037 | 92037-1877 | 1 | ||
| PIN | 92043 | 92043-1324 | 1 | ||
| DAMPER,CHANGE PEDAL | 92075 | 13157-004 | 1 | ||
| SEAL | 92093 | 92093-1220 | 2 | ||
| ROLLER | 92122 | 92122-1140 | 1 | ||
| SPRING | 92144 | 92144-1029 | 1 | ||
| SPRING,NEUTRAL POSITION | 92144A | 92144-1030 | 2 | ||
| SPRING,CHANGE PEDAL RETURN | 92144B | 92144-1074 | 1 | ||
| BOLT-FLANGED,6X20,BLACK | 130 | 130S0620 | 1 | ||
| BOLT-STUD,6X12 | 172 | 172G0612 | 2 | ||
| NUT-HEX,6MM | 311 | 311G0600 | 2 | ||
| WASHER-PLAIN-SMALL,8MM | 410 | 410D0800 | 1 | ||
| CIRCLIP-TYPE-C,13MM | 480 | 480J1300 | 1 | ||
| CIRCLIP-TYPE-E,6MM | 482 | 482K6000 | 1 | ||
| CIRCLIP-TYPE-E | 482A | 482L9000 | 1 |
