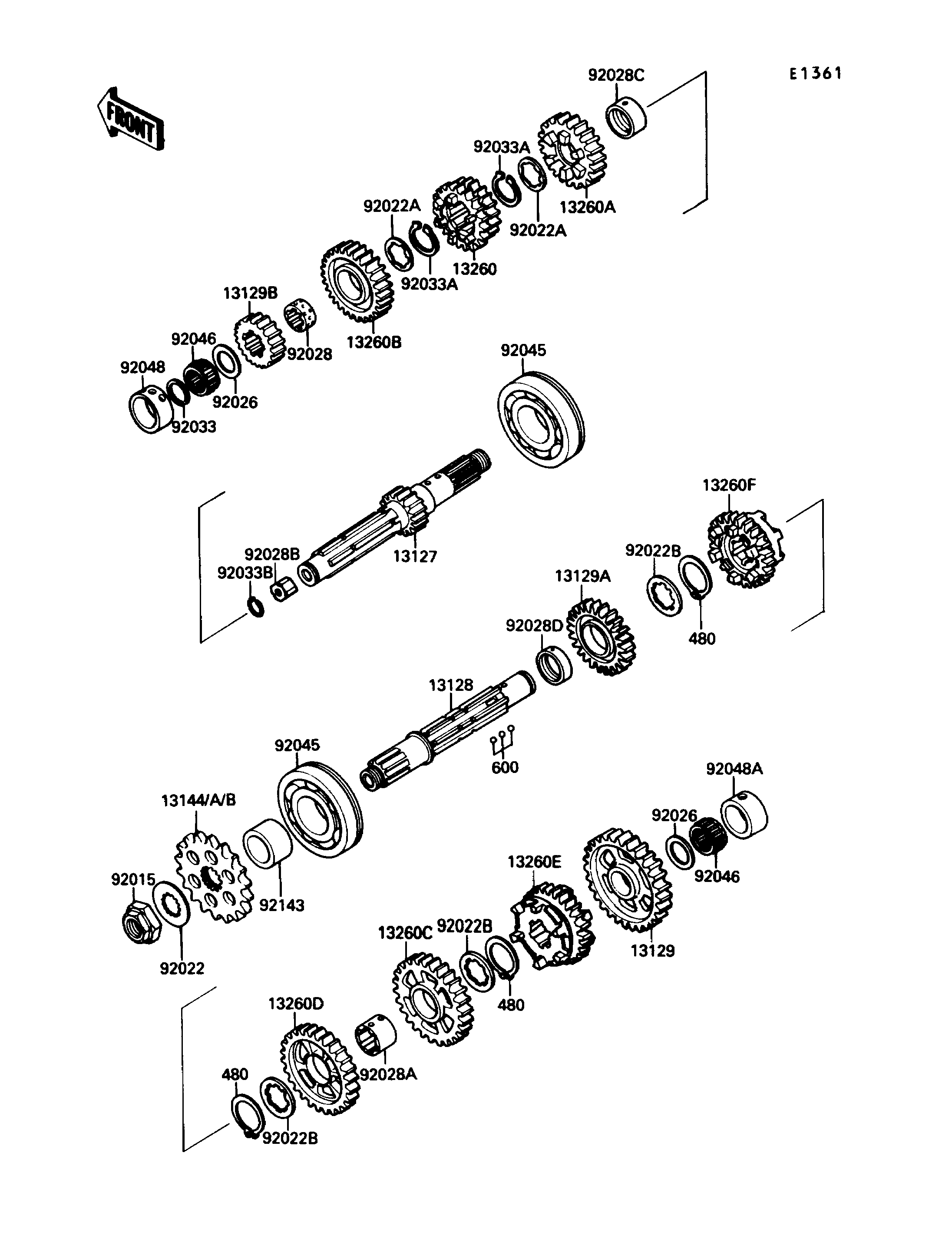

1990 Ninja® 750R - Transmission

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION INPUT,13T 13127 13127-1140 1
SHAFT-TRANSMISSION OUTPUT 13128 13128-1162 1
GEAR,OUTPUT LOW,38T 13129 13129-1814 1
GEAR,OUTPUT 2ND,34T 13129A 13129-1898 1
GEAR,INPUT 2ND,16T 13129B 13129-1971 1
SPROCKET-OUTPUT,17T(#530) 13144 13144-1009 1 (RACING USE ONLY)
SPROCKET-OUTPUT,15T(#530) 13144A 13144-1117 1 (RACING USE ONLY)
SPROCKET-OUTPUT,16T(#530) 13144B 13144-1128 1
GEAR,INPUT 3RD&4TH,21T&21T 13260 13260-1025 1
GEAR,INPUT 5TH,23T 13260A 13260-1026 1
GEAR,INPUT TOP,24T 13260B 13260-1027 1
GEAR,OUTPUT 3RD,35T 13260C 13260-1028 1
GEAR,OUTPUT 4TH,29T 13260D 13260-1029 1
GEAR,OUTPUT 5TH,28T 13260E 13260-1030 1
GEAR,OUTPUT TOP,26T 13260F 13260-1031 1
NUT,20MM 92015 92015-1254 1
WASHER,TOOTHED,25.5X42X1 92022 92022-1076 1
WASHER,TOOTHED,28.3X33.5X1 92022A 92022-1139 2
WASHER,TOOTHED,30.3X40X1.5 92022B 92024-043 3
SPACER,22X35.5X2.1 92026 92026-1224 2
BUSHING,INPUT TOP GEAR 92028 92028-1255 1
BUSHING,OUTPUT 3RD&4TH 92028A 92028-1363 1
BUSHING 92028B 92028-1448 1
BUSHING,INPUT 5TH GEAR 92028C 92028-1449 1
BUSHING,OUTPUT 2ND 92028D 92028-1450 1
RING-SNAP,20X25.5X1.2 92033 92033-025 1
RING-SNAP,25.9MM 92033A 92033-1037 2
RING-SNAP 92033B 92036-005 1
BEARING-BALL,6305N2SH2 92045 92045-1224 2
BEARING-NEEDLE,FWF-223014 92046 92046-031 2
RACE,INPUT SHAFT 92048 92048-1066 1
RACE,0RZ30X38X17PX1 92048A 92048-1067 1
COLLAR,25X32X18.7 92143 92143-1018 1
CIRCLIP 480 480J2900 3
BALL-STEEL,5/32" 600 600A0500 3
