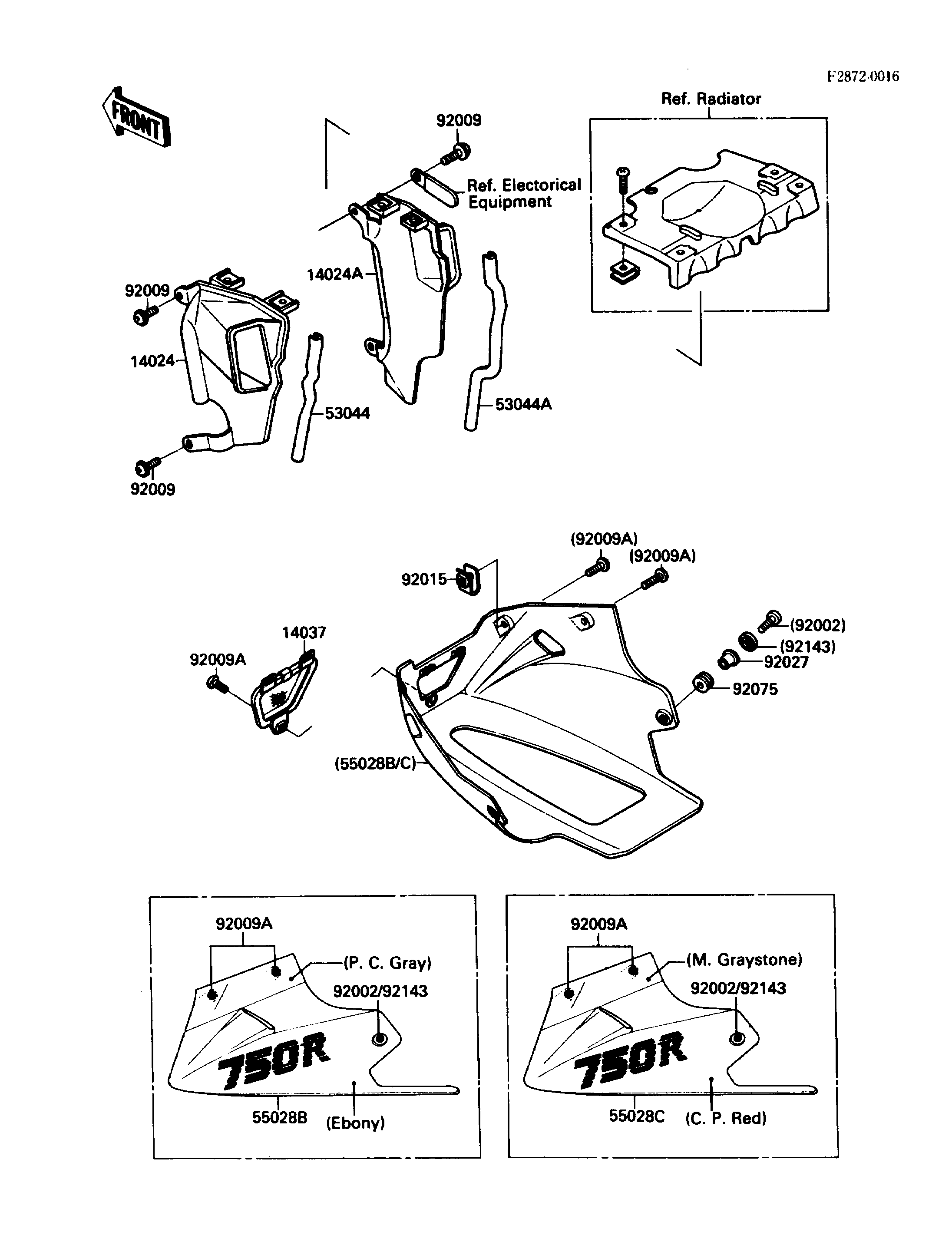

Parts Diagrams |
14024
14024A
14037
53044
53044A
55028B
55028C
92002
92002
92009
92009
92009
92009A
92009A
92009A
92015
92027
92075
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,LOUVER,LH | 14024 | 14024-1346 | 1 | ||
| COVER,LOUVER,RH | 14024A | 14024-1347 | 1 | ||
| SCREEN | 14037 | 14037-1086 | 1 | ||
| TRIM,LOUVER COVER,LH | 53044 | 53044-1178 | 1 | ||
| TRIM,LOUVER COVER,RH | 53044A | 53044-1179 | 1 | ||
| COWLING,LWR,EBONY/GRAY | 55028B | 55028-5371-T4 | 1 | ||
| COWLING,LWR,RED/GRAYSTONE | 55028C | 55028-5374-CF | 1 | ||
| BOLT,SOCKET,6X18,BLACK | 92002 | 92002-1514 | 2 | ||
| SCREW,6X14 | 92009 | 92009-1288 | 4 | ||
| BOLT,FLANGED,12X35 | 92009A | 92002-1301 | 5 | ||
| NUT,5MM | 92015 | 92015-1710 | 4 | ||
| COLLAR,L=9.1,WHITE | 92027 | 92027-1795 | 2 | ||
| DAMPER | 92075 | 92075-1634 | 2 | ||
| COLLAR,BLACK | 92143 | 92143-1226 | 2 |
| COVER,LOUVER,LH | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,LOUVER,RH | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREEN | |
| REF # | 14037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,LOUVER COVER,LH | |
| REF # | 53044 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TRIM,LOUVER COVER,RH | |
| REF # | 53044A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,EBONY/GRAY | |
| REF # | 55028B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COWLING,LWR,RED/GRAYSTONE | |
| REF # | 55028C |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X18,BLACK | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,12X35 | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,L=9.1,WHITE | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BLACK | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
