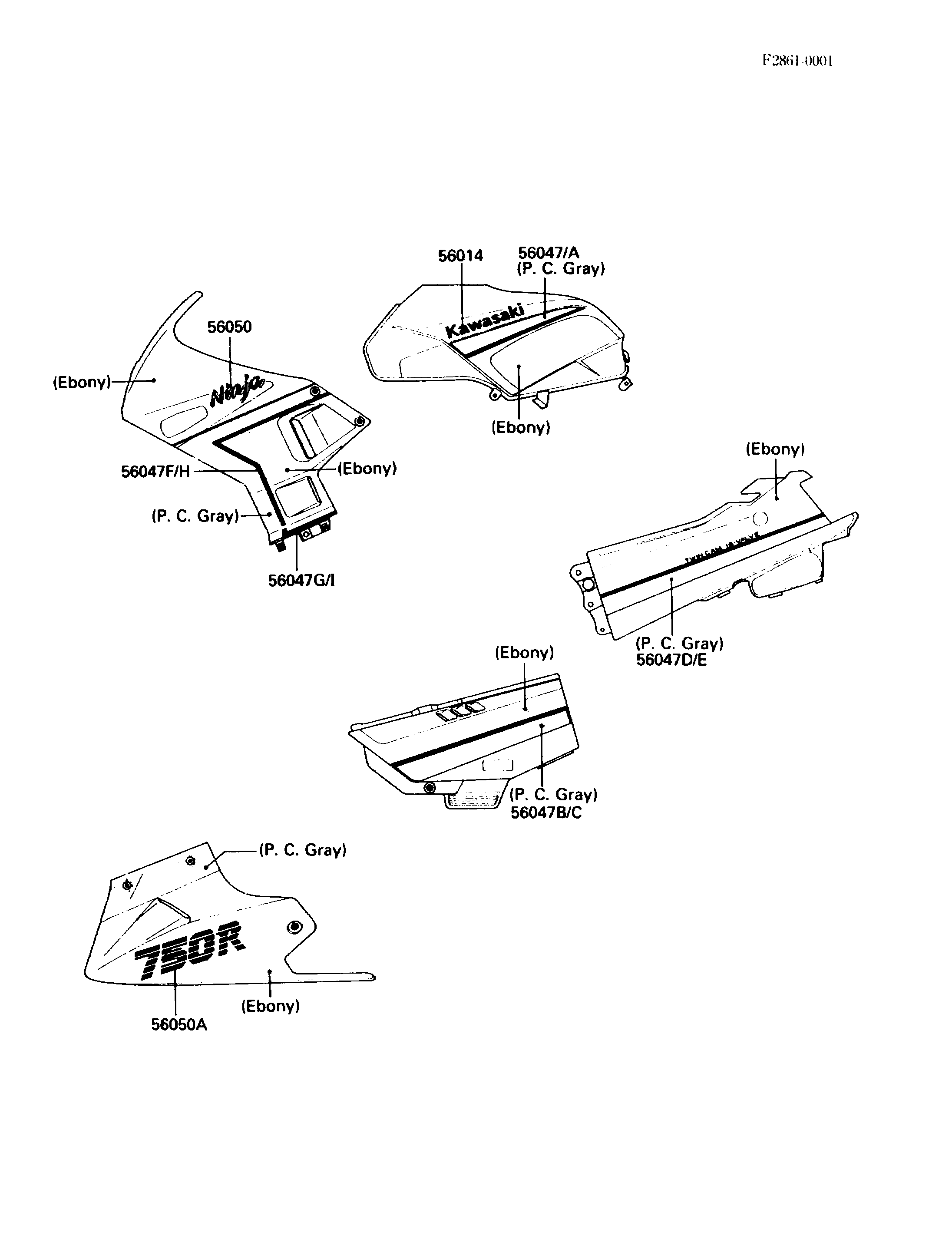

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1198 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047 | 56047-1711 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1712 | 1 | ||
| PATTERN,SIDE COVER,LH | 56047B | 56047-1713 | 1 | ||
| PATTERN,SIDE COVER,RH | 56047C | 56047-1714 | 1 | ||
| PATTERN,SEAT COVER,LH | 56047D | 56047-1715 | 1 | ||
| PATTERN,SEAR COVER,RH | 56047E | 56047-1716 | 1 | ||
| PATTERN,UPP COWLING,LH,UPP | 56047F | 56047-1717 | 1 | ||
| PATTERN,UPP COWLING,LH,LWR | 56047G | 56047-1718 | 1 | ||
| PATTERN,UPP COWLING,RH,UPP | 56047H | 56047-1719 | 1 | ||
| PATTERN,UPP COWLING,RH,LWR | 56047I | 56047-1720 | 1 | ||
| MARK,NINJA | 56050 | 56050-1045 | 2 | ||
| MARK,750R | 56050A | 56050-1046 | 2 |
