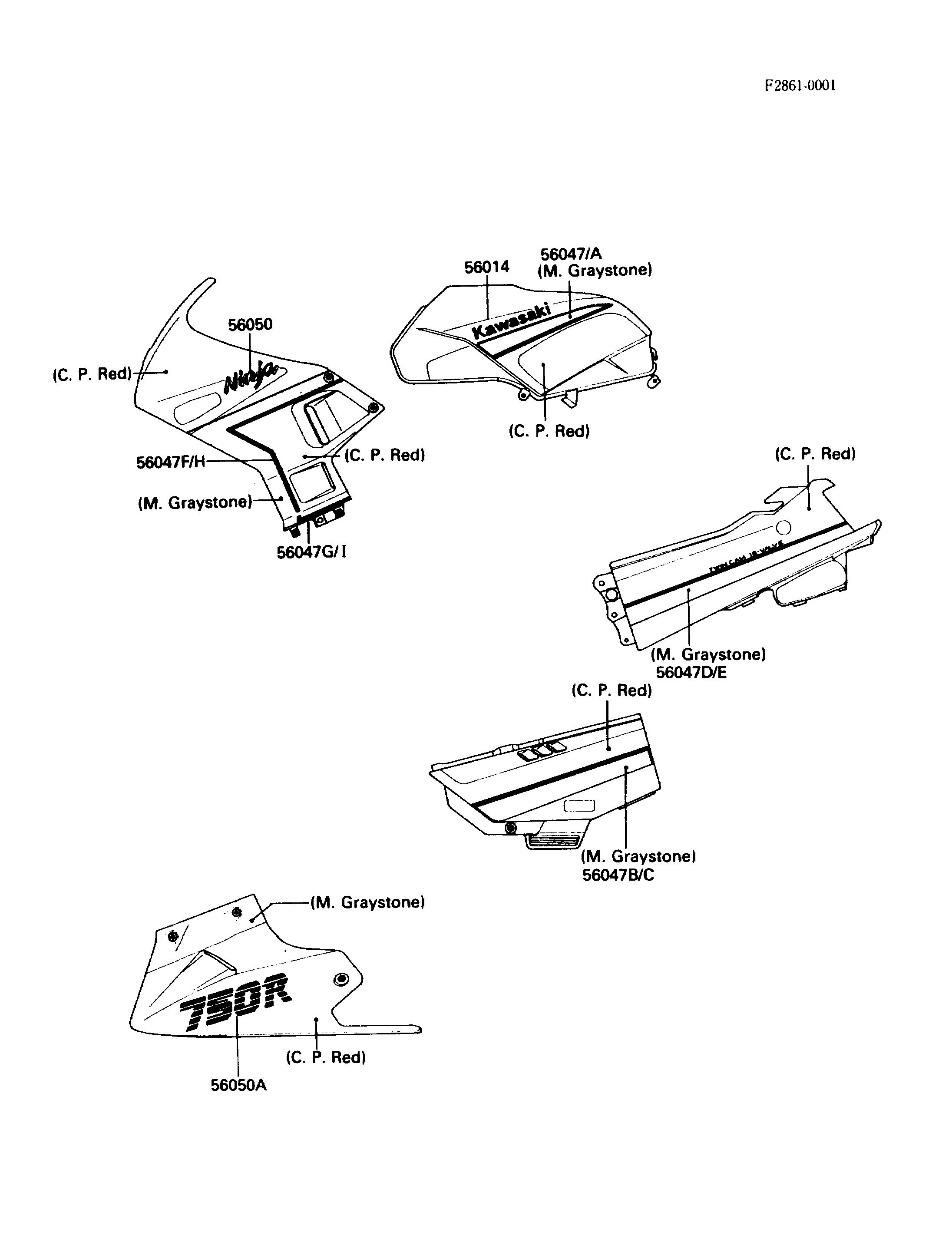

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| EMBLEM,FUEL TANK,KAWASAKI | 56014 | 56014-1199 | 2 | ||
| PATTERN,FUEL TANK,LH | 56047 | 56047-1721 | 1 | ||
| PATTERN,FUEL TANK,RH | 56047A | 56047-1722 | 1 | ||
| PATTERN,SIDE COVER,LH | 56047B | 56047-1723 | 1 | ||
| PATTERN,SIDE COVER,RH | 56047C | 56047-1724 | 1 | ||
| PATTERN,SEAT COVER,LH | 56047D | 56047-1725 | 1 | ||
| PATTERN,SEAT COVER,RH | 56047E | 56047-1726 | 1 | ||
| PATTERN,UPP COWLING,LH,UPP | 56047F | 56047-1727 | 1 | ||
| PATTERN,UPP COWLING,LH,LWR | 56047G | 56047-1728 | 1 | ||
| PATTERN,UPP COWLING,RH,UPP | 56047H | 56047-1729 | 1 | ||
| PATTERN,UPP COWLING,RH,LWR | 56047I | 56047-1730 | 1 | ||
| MARK,NINJA | 56050 | 56050-1047 | 2 | ||
| MARK,750R | 56050A | 56050-1048 | 2 |
