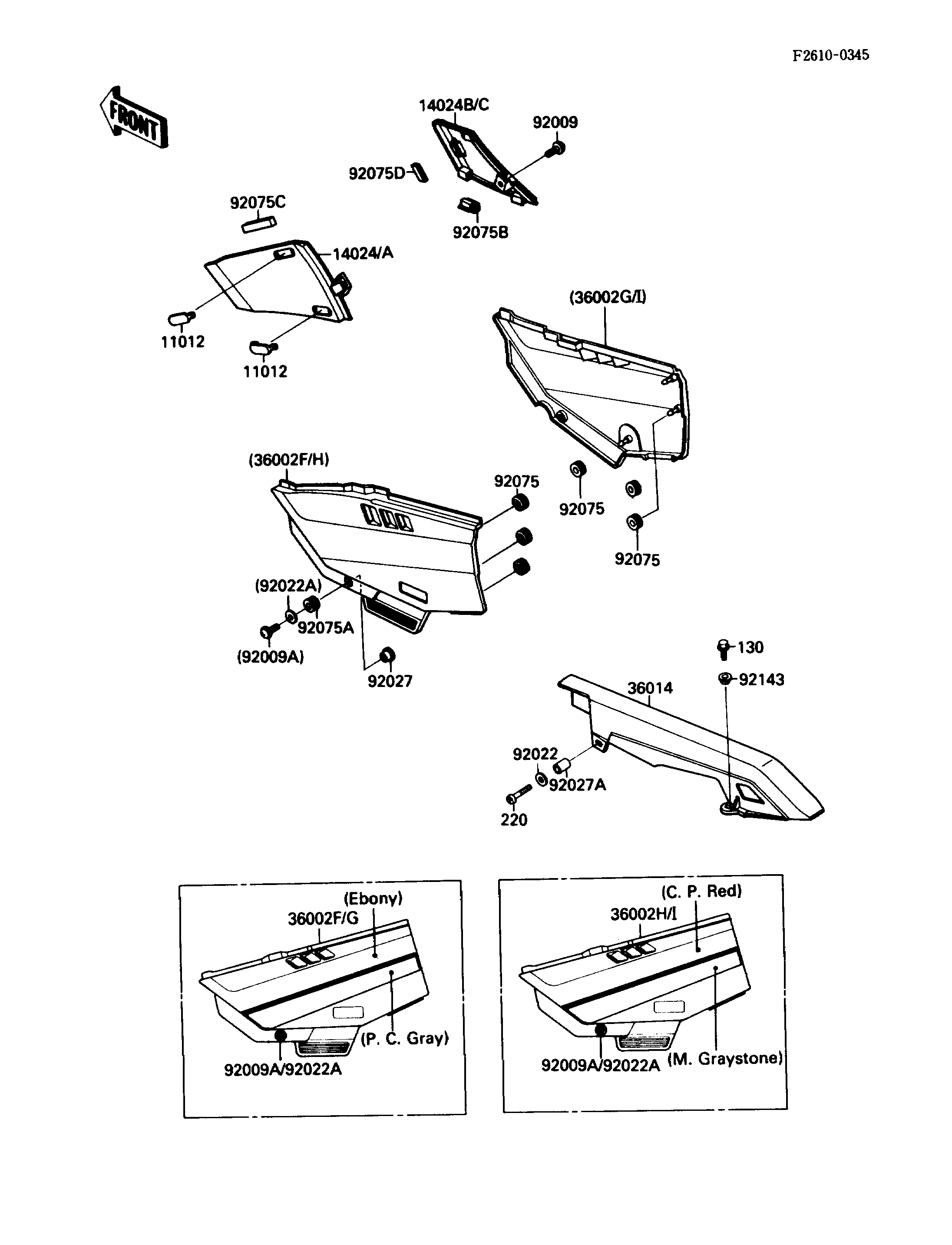

1988 NINJA® 750R - Side Covers/Chain Cover

DOWNLOAD PDF
SELECT A NEW PART
130
220
11012
11012
14024
14024A
14024B
14024C
36002F
36002G
36002H
36002I
36014
92009
92009A
92009A
92022
92027
92027A
92075
92075
92075
92075A
92075B
92075C
92075D
92143
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-FLANGED,6X14,BLACK 130 130J0614 1
SCREW-PAN-CROS,6X35,BLACK 220 220C0635 1
CAP,KNEEGRIP COVER,EBONY 11012 11012-1551-6C 4
COVER,KNEEGRIP,LH,C.P.RED 14024 14024-1344-A5 1
COVER,KNEEGRIP,LH,EBONY 14024A 14024-1344-H8 1
COVER,KNEEGRIP,RH,C.P.RED 14024B 14024-1345-A5 1
COVER,KNEEGRIP,RH,EBONY 14024C 14024-1345-H8 1
COVER-SIDE,LH,EBONY 36002F 36002-5431-H8 1
COVER-SIDE,RH,EBONY 36002G 36002-5432-H8 1
COVER-SIDE,LH,C.P.RED 36002H 36002-5433-A5 1
COVER-SIDE,RH,C.P.RED 36002I 36002-5434-A5 1
CASE-CHAIN 36014 36014-1142 1
SCREW,6X18,WHITE 92009 92009-1111 2
SCREW,6X14 92009A 92009-1288 2
WASHER,6.5X20X1.6,BLACK 92022 92022-1346 1
COLLAR,L=9.1,WHITE 92027 92027-1795 2
COLLAR,6.8X10X20 92027A 92027-1856 1
DAMPER 92075 92075-1067 6
DAMPER 92075A 92075-1634 2
DAMPER,KNEEGRIP COVER,LWR 92075B 92075-1874 2
DAMPER 92075C 92075-1914 2
DAMPER,KNEEGRIP COVER,FR 92075D 92075-1923 2
COLLAR,L=6.6 92143 92143-1088 1
SCREW,6X18,BLACK 92009B 92009-1306 2
WASHER,6.5X20X1.6,BLACK 92022A 92022-1619 2
WASHER,6.5X20X1.6,WHITE 92022B 92022-193 2
