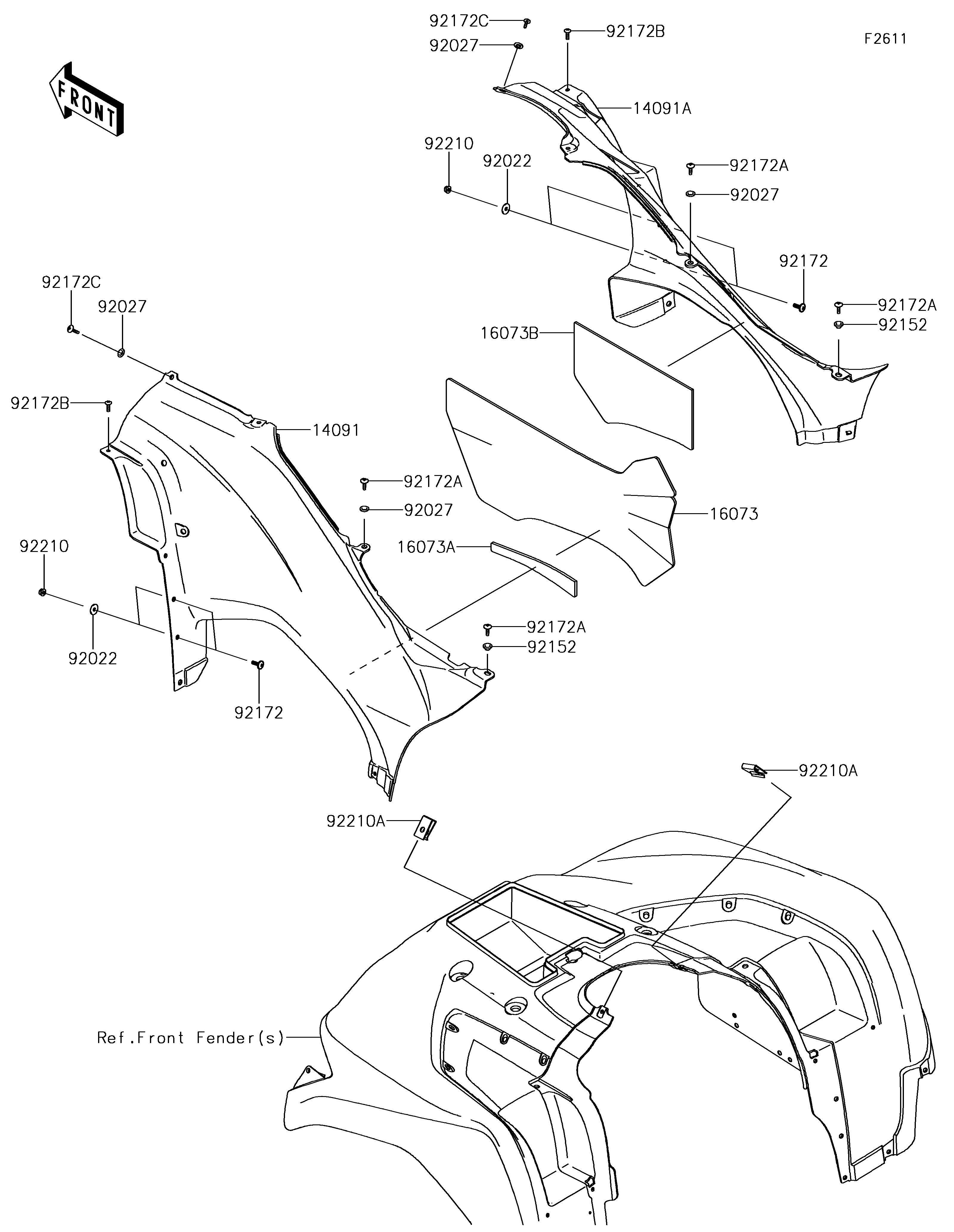

2019 BRUTE FORCE® 750 4x4i EPS CAMO - Side Covers
14091
14091A
16073
16073A
16073B
92022
92022
92027
92027
92027
92027
92152
92152
92172
92172
92172A
92172A
92172A
92172A
92172B
92172B
92172C
92172C
92210
92210
92210A
92210A
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,SIDE,LH,CAMOUFLAGE | 14091 | 14091-0312-42H | 1 | ||
| COVER,SIDE,RH,CAMOUFLAGE | 14091A | 14091-0313-42H | 1 | ||
| INSULATOR,SIDE COVER,LH | 16073 | 16073-0723 | 1 | ||
| INSULATOR,SIDE COVER,OVERLAP | 16073A | 16073-0807 | 1 | ||
| INSULATOR,SIDE COVER,RH | 16073B | 16073-0808 | 1 | ||
| WASHER,6.5X20X1.6 | 92022 | 92022-1557 | 4 | ||
| COLLAR | 92027 | 92027-4020 | 4 | ||
| COLLAR,6.3X8.3X7.2 | 92152 | 92152-1865 | 2 | ||
| SCREW,6X18 | 92172 | 92172-0002 | 4 | ||
| SCREW,6X16 | 92172A | 92172-0236 | 4 | ||
| SCREW,5X18 | 92172B | 92172-0428 | 2 | ||
| SCREW,TAPPING,6X20 | 92172C | 92172-0883 | 2 | ||
| NUT,LOCK,FLANGED,6MM | 92210 | 92210-0303 | 4 | ||
| NUT,LEAF SPRING,6MM | 92210A | 92210-0624 | 2 |
| COVER,SIDE,LH,CAMOUFLAGE | |
| REF # | 14091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,SIDE,RH,CAMOUFLAGE | |
| REF # | 14091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SIDE COVER,LH | |
| REF # | 16073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SIDE COVER,OVERLAP | |
| REF # | 16073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| INSULATOR,SIDE COVER,RH | |
| REF # | 16073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.6 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92027 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR,6.3X8.3X7.2 | |
| REF # | 92152 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X18 | |
| REF # | 92172 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,6X16 | |
| REF # | 92172A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,5X18 | |
| REF # | 92172B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,6X20 | |
| REF # | 92172C |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,FLANGED,6MM | |
| REF # | 92210 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT,LEAF SPRING,6MM | |
| REF # | 92210A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
