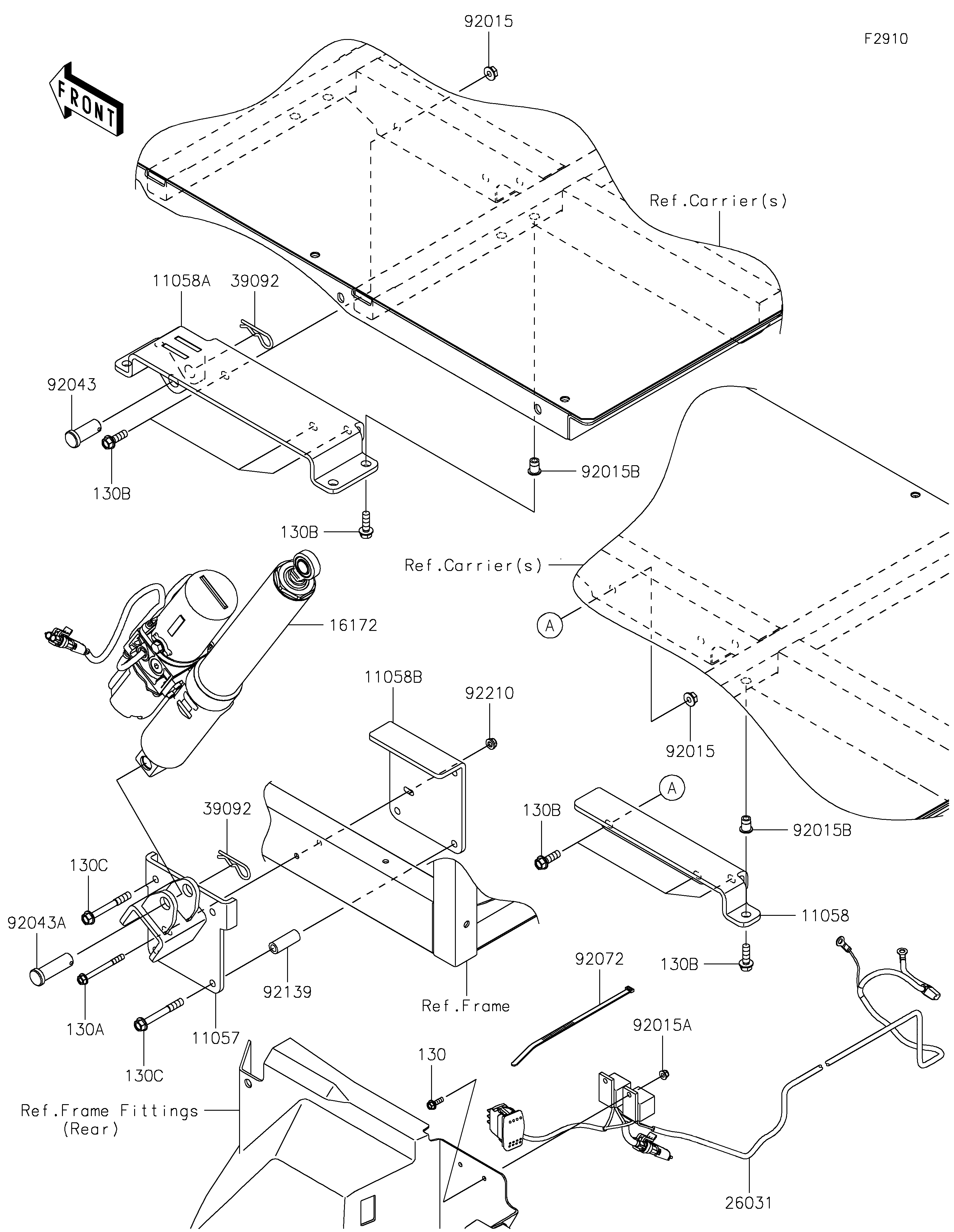

2024 MULE PRO-FX™ 1000 HD Edition - Cargo Bed Lift

DOWNLOAD PDF
SELECT A NEW PART
11057
11058
11058A
11058B
16172
26031
39092
39092
92015
92015
92015A
92015B
92015B
92043
92043A
92072
92139
92210
130
130A
130B
130B
130B
130B
130C
130C
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET,LWR,OUTER 11057 11057-7875 1
BRACKET,UPP,RH 11058 11058-0519 1
BRACKET,UPP,LH 11058A 11058-0520 1
BRACKET,LWR,INNER 11058B 11058-1135 1
ACTUATOR 16172 16172-0048 1
HARNESS,BED LIFT 26031 26031-4089 1
PIN-HAIR 39092 39092-0002 2
NUT,LOCK,FLANGED,8MM 92015 92015-1397 6
NUT,LOCK,FLANGED,5MM 92015A 92015-1752 2
NUT,POP,8MM,L=16.5 92015B 92015-1793 5
PIN 92043 92043-0846 1
PIN 92043A 92043-0847 1
BAND,L=292.1 92072 92072-3509 17
BUSHING 92139 92139-0840 2
NUT,LOCK,FLANGED,6MM 92210 92210-0303 1
BOLT-FLANGED,5X16 130 130BA0516 2
BOLT-FLANGED,6X65 130A 130CA0665 1
BOLT-FLANGED,8X25 130B 130CA0825 11
BOLT-FLANGED,8X65 130C 130CA0865 4
