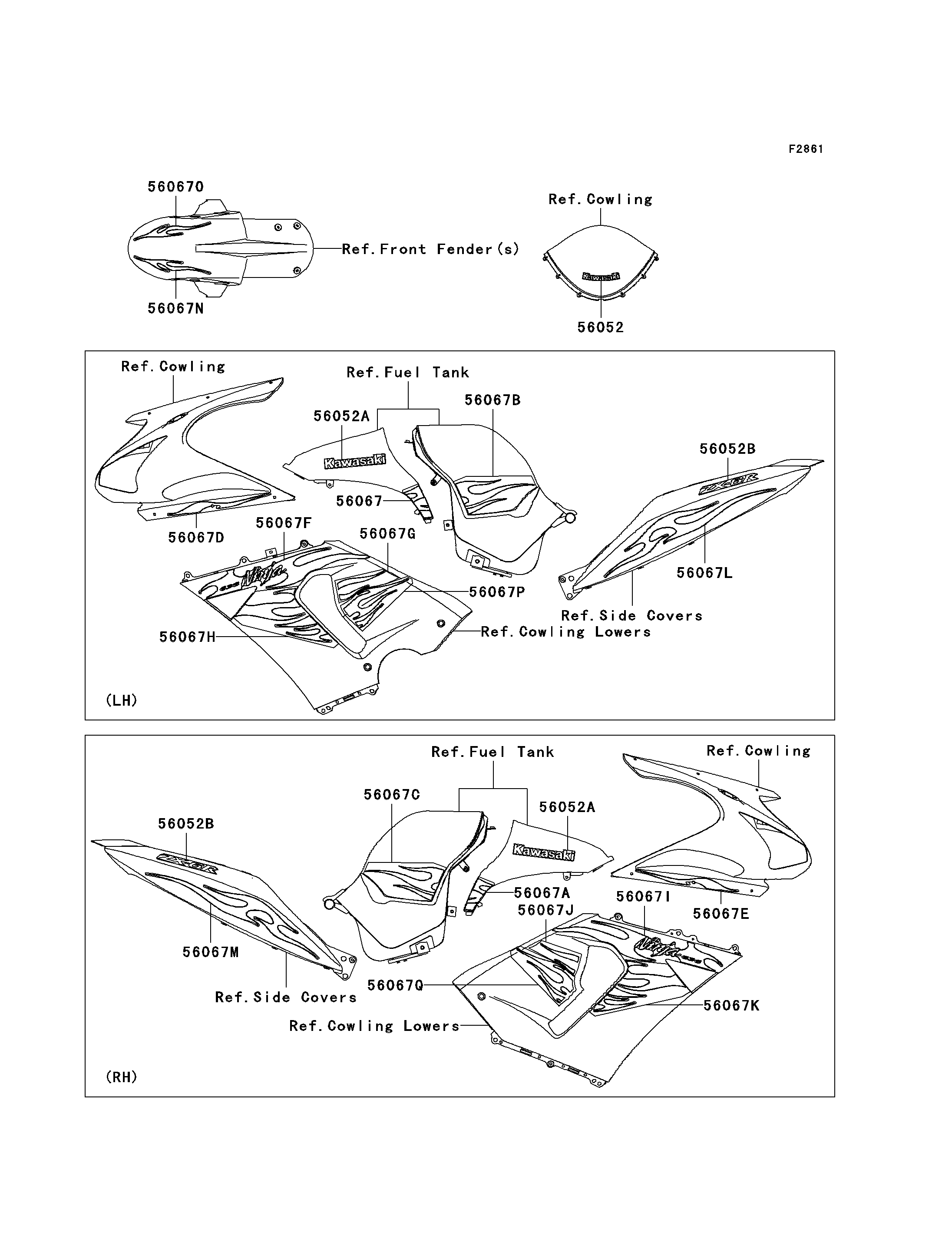

2006 Ninja® ZX™-6R - Decals

DOWNLOAD PDF
SELECT A NEW PART
56052
56052A
56052A
56052B
56052B
56067
56067A
56067B
56067C
56067D
56067E
56067F
56067G
56067H
56067I
56067J
56067K
56067L
56067M
56067N
56067O
56067P
56067Q
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,WINDSHIELD,KAWASAKI 56052 56052-0154 1
MARK,FUEL TANK COVER,KAWASAKI 56052A 56052-0760 2
MARK,SEAT COVER,ZX-6R 56052B 56052-0761 2
PATTERN,FUEL TANK COVER,LH 56067 56067-0492 1
PATTERN,FUEL TANK COVER,RH 56067A 56067-0493 1
PATTERN,FUEL TANK,LH 56067B 56067-0494 1
PATTERN,FUEL TANK,RH 56067C 56067-0495 1
PATTERN,UPP COWLING,LH 56067D 56067-0496 1
PATTERN,UPP COWLING,RH 56067E 56067-0497 1
PATTERN,CNT COWLING,UPP,LH 56067F 56067-0498 1
PATTERN,LWR COWLING,RR,UPP,LH 56067G 56067-0499 1
PATTERN,CNT COWLING,LWR,FR,LH 56067H 56067-0500 1
PATTERN,CNT COWLING,UPP,RH 56067I 56067-0501 1
PATTERN,LWR COWLING,RR,UPP,RH 56067J 56067-0502 1
PATTERN,CNT COWLING,LWR,FR,RH 56067K 56067-0503 1
PATTERN,RR FENDER,LH 56067L 56067-0504 1
PATTERN,RR FENDER,RH 56067M 56067-0505 1
PATTERN,FR FENDER,LH 56067N 56067-0506 1
PATTERN,FR FENDER,RH 56067O 56067-0507 1
PATTERN,LWR COWLING,RR,LWR,LH 56067P 56067-0569 1
PATTERN,LWR COWLING,RR,LWR,RH 56067Q 56067-0570 1
