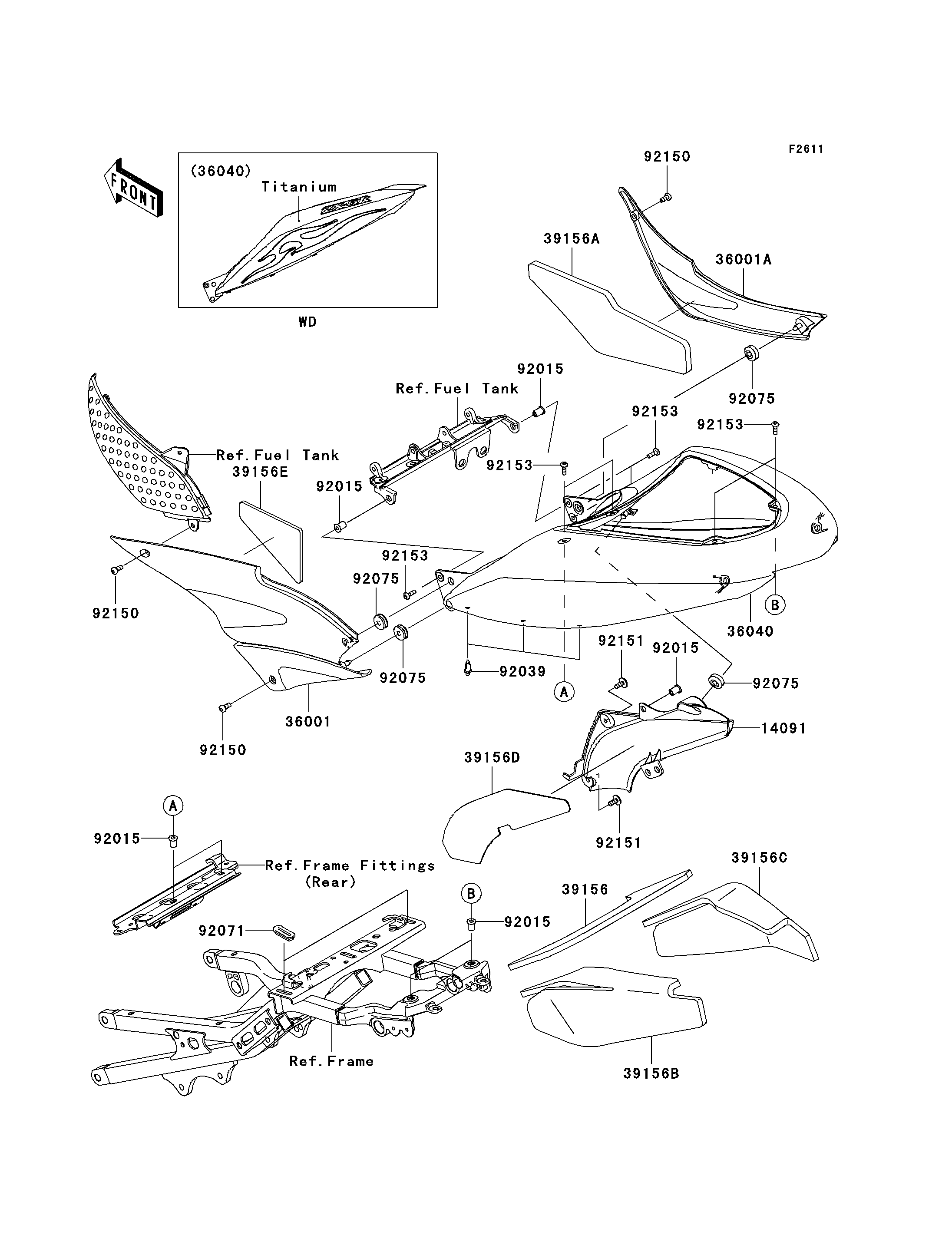

2006 Ninja® ZX™-6R - Side Covers

DOWNLOAD PDF
SELECT A NEW PART
14091
36001
36001A
36040
39156
39156A
39156B
39156C
39156D
39156E
92015
92015
92015
92015
92015
92039
92071
92075
92075
92075
92075
92150
92150
92150
92151
92151
92153
92153
92153
92153
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,JOINT PIPE 14091 14091-0293 1
COVER-SIDE,LH 36001 36001-0042 1
COVER-SIDE,RH 36001A 36001-0043 1
COVER-TAIL,M.TITANIUM 36040 36040-5123-740 1
PAD,TAIL COVER,RR 39156 39156-0074 1
PAD,SIDE COVER,RH 39156A 39156-0085 1
PAD,TAIL COVER,LH 39156B 39156-0086 1
PAD,TAIL COVER,RH 39156C 39156-0087 1
PAD,JOINT PIPE COVER 39156D 39156-0088 1
PAD,SIDE COVER,LH 39156E 39156-0091 1
NUT,WELL,5MM 92015 92015-1757 7
RIVET 92039 92039-0015 3
GROMMET 92071 92071-1187 2
DAMPER 92075 92075-1067 4
BOLT,SOCKET,6X14 92150 92150-1836 3
BOLT,SOCKET,6X14 92151 92151-1654 2
BOLT,SOCKET,5X16 92153 92153-1244 7
