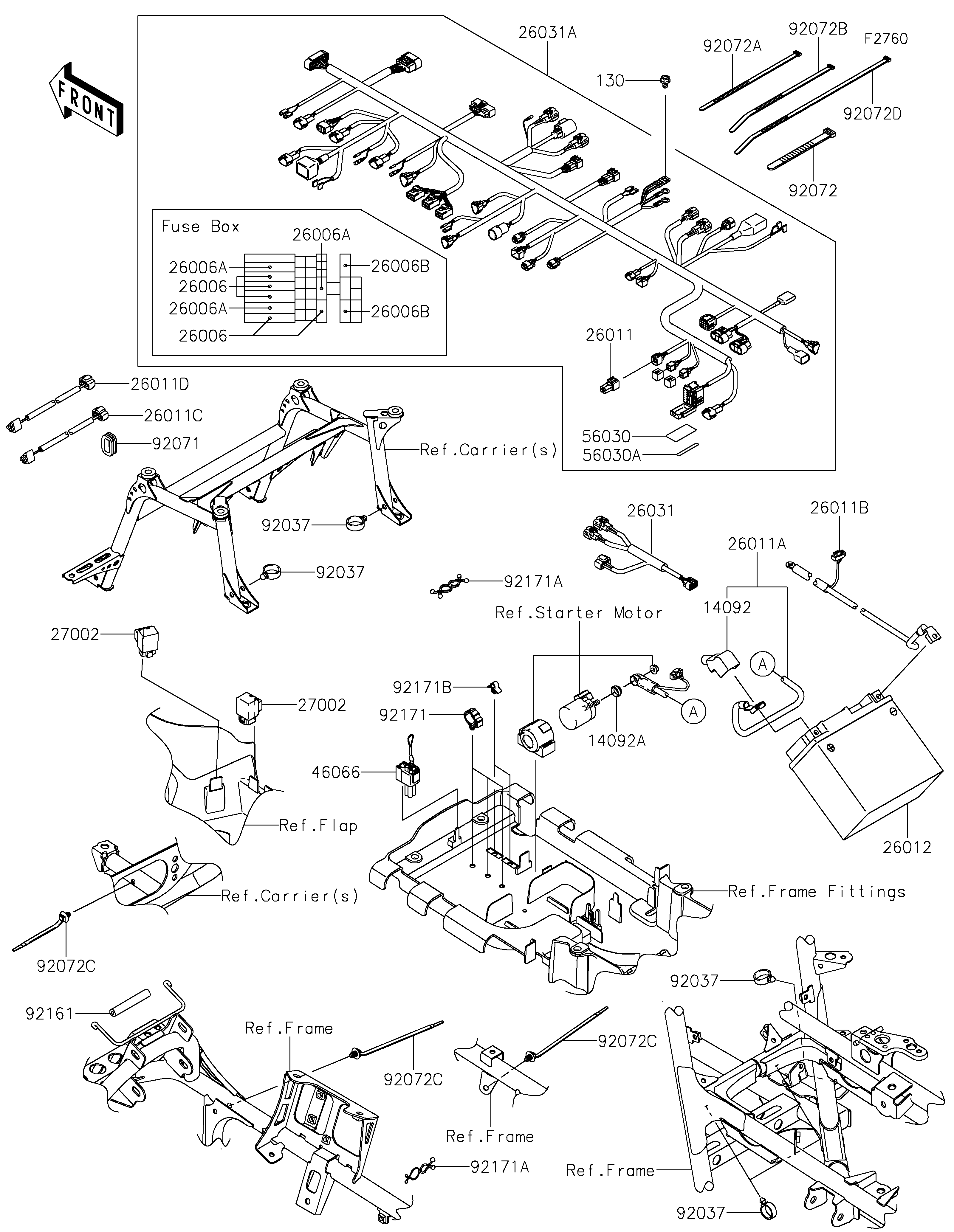

2021 BRUTE FORCE® 750 4x4i - Chassis Electrical Equipment

DOWNLOAD PDF
SELECT A NEW PART
14092
14092A
26006
26006
26006A
26006A
26006A
26006B
26006B
26011
26011A
26011B
26011C
26011D
26012
26031
26031A
27002
27002
46066
56030
56030A
92037
92037
92037
92037
92071
92072
92072A
92072B
92072C
92072C
92072C
92072D
92161
92171
92171A
92171A
92171B
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER 14092 14092-0767 1
COVER,MAGNETIC SW. 14092A 14092-0851 1
FUSE,MINI BLADE,15A,BLUE 26006 26006-0001 5
FUSE,MINI BLADE,10A,RED 26006A 26006-0009 3
FUSE,MINI BLADE,30A,GREEN 26006B 26006-1080 2
WIRE-LEAD,CAP 26011 26011-0271 1
WIRE-LEAD,BATTERY(+) 26011A 26011-0303 1
WIRE-LEAD,BATTERY(-) 26011B 26011-0304 1
WIRE-LEAD,HEAD LAMP,RH 26011C 26011-0721 1
WIRE-LEAD,HEAD LAMP,LH 26011D 26011-0743 1
BATTERY,MF,KMX14-BS,12V 12AH 26012 26012-1414 1
HARNESS,SUB 26031 26031-0752 1
HARNESS,MAIN 26031A 26031-1740 1
RELAY-ASSY 27002 27002-1062 2
CONNECTOR-ASSY,RESET 46066 46066-0001 1
LABEL,FUSE BOX,10A&15A 56030 56030-0401 1
LABEL,FUSE BOX,30A 56030A 56030-0404 1
CLAMP,HOSE 92037 92037-1827 5
GROMMET 92071 92071-0708 1
BAND,L=123 92072 92072-030 12
BAND,L=186 92072A 92072-056 3
BAND,L=188 92072B 92072-1239 4
BAND,OS170-FT7(BLACK) 92072C 92072-1414 3
BAND,L=292.1 92072D 92072-3509 3
DAMPER,4.5X11X68 92161 92161-0988 1
CLAMP,BRAKE HOSE 92171 92171-0316 3
CLAMP 92171A 92171-0476 2
CLAMP 92171B 92171-0477 2
BOLT-FLANGED,6X10 130 130BA0610 1
