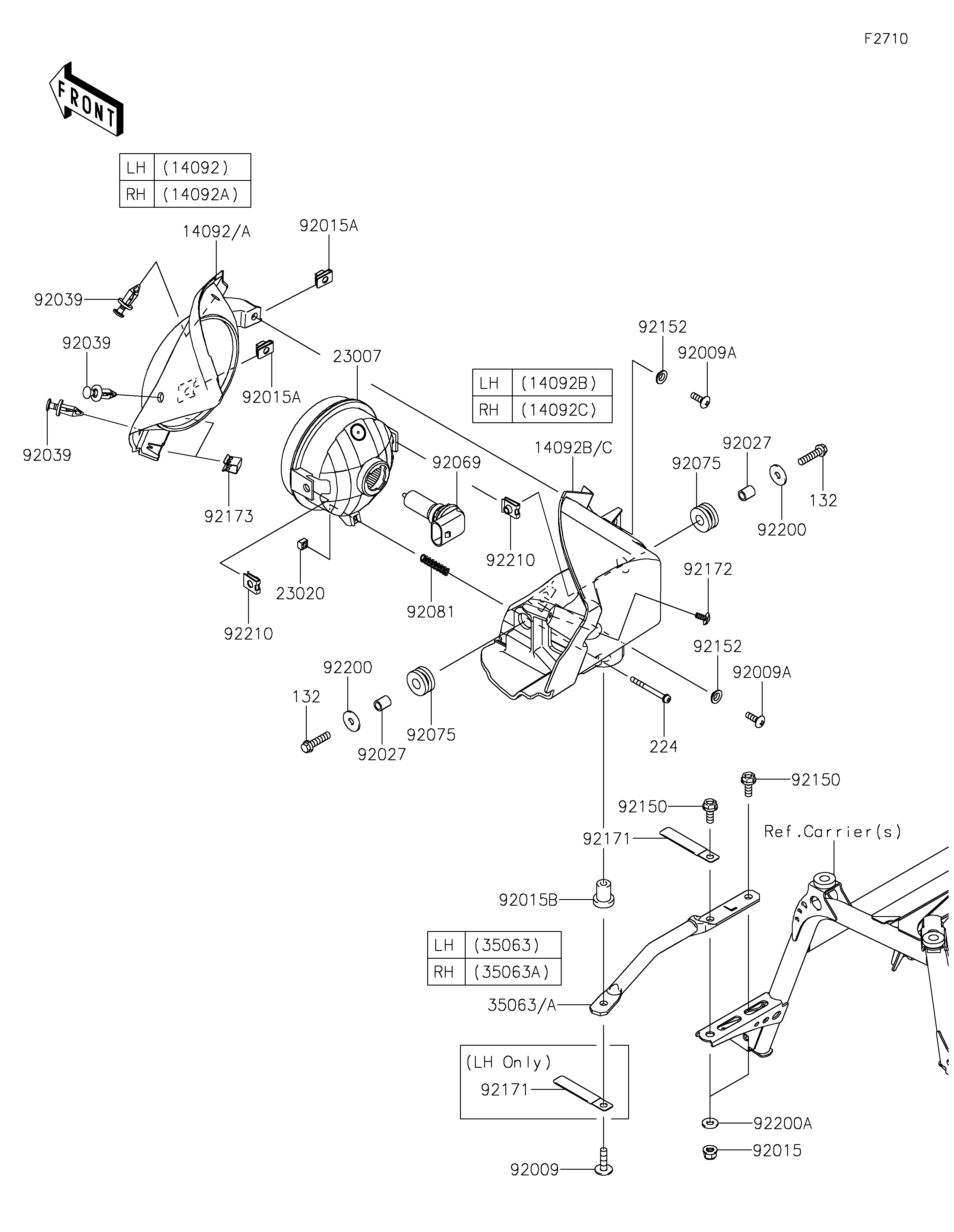

2021 BRUTE FORCE® 750 4x4i - Headlight(s)

DOWNLOAD PDF
SELECT A NEW PART
14092
14092A
14092B
14092C
23007
23020
35063
35063A
92009
92009A
92009A
92015
92015A
92015A
92015B
92027
92027
92039
92039
92039
92069
92075
92075
92081
92150
92150
92152
92152
92171
92171
92172
92173
92200
92200
92200A
92210
92210
132
132
224
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,HEAD LAMP,LH,F.BLACK 14092 14092-0190-6Z 1
COVER,HEAD LAMP,RH,F.BLACK 14092A 14092-0191-6Z 1
COVER,RR HEAD LAMP,LH 14092B 14092-0192 1
COVER,RR HEAD LAMP,RH 14092C 14092-0193 1
LENS-COMP,HEAD LAMP 23007 23007-0220 2
NUT,4MM,FOCUS ADJUST 23020 23020-018 2
STAY,HEAD LAMP,LH 35063 35063-0806 1
STAY,HEAD LAMP,RH 35063A 35063-0807 1
SCREW,6X22,BLACK 92009 92009-1256 2
SCREW,5X16,BLACK 92009A 92009-1654 4
NUT,LOCK,FLANGED,6MM 92015 92015-1339 4
NUT,5MM 92015A 92015-1627 4
NUT,RUBBER,6MM 92015B 92015-1692 2
COLLAR,6.8X10X12 92027 92027-162 4
RIVET 92039 92039-0776 6
BULB,12V 35/35W 92069 92069-0102 2
DAMPER,10X24X12 92075 92075-1690 4
SPRING,FOCUS ADJUST 92081 92081-1896 2
BOLT,FLANGED,6X15 92150 92150-1015 4
COLLAR 92152 92152-0250 4
CLAMP,L=60 92171 92171-0652 3
SCREW,TAPPING,5X10 92172 92172-0262 2
CLAMP 92173 92173-0104 4
WASHER,6.5X20X1.6 92200 92200-0283 4
WASHER,6.5X14.5X1.5 92200A 92200-3775 4
NUT 92210 92210-1323 4
BOLT-FLANGED-SMALL,6X25 132 132BA0625 4
SCREW-PAN-WP-CROS,4X45 224 224AA0445 2
