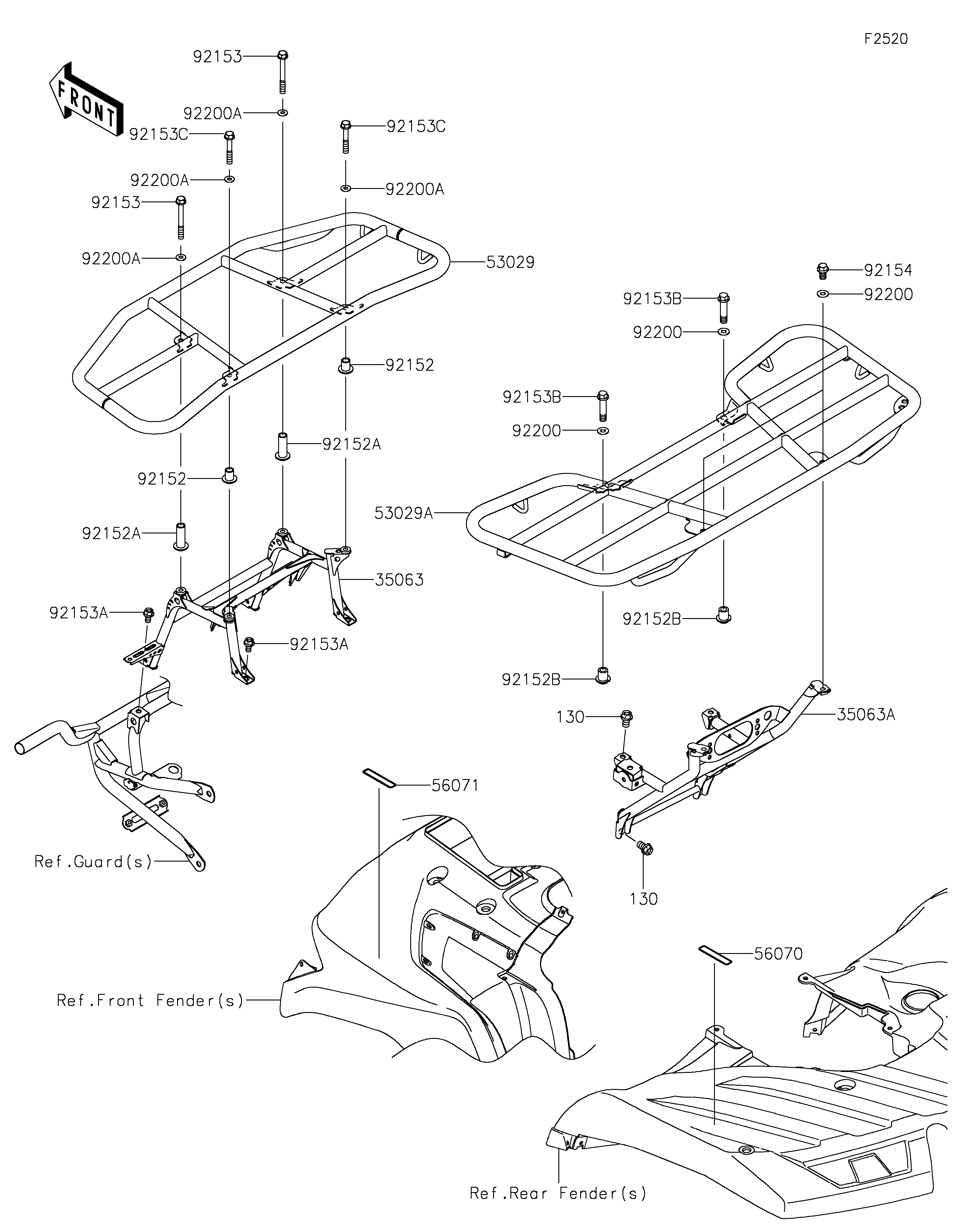

2021 BRUTE FORCE® 750 4x4i - Carrier(s)

DOWNLOAD PDF
SELECT A NEW PART
35063
35063A
53029
53029A
56070
56071
92152
92152
92152A
92152A
92152B
92152B
92153
92153
92153A
92153A
92153B
92153B
92153C
92153C
92154
92200
92200
92200
92200A
92200A
92200A
92200A
130
130
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STAY,FR CARRIER 35063 35063-0826 1
STAY,RR CARRIER,T.BLACK 35063A 35063-0946-388 1
CARRIER,FR,T.BLACK 53029 53029-0093-388 1
CARRIER,RR,T.BLACK 53029A 53029-0094-388 1
LABEL-WARNING,MAXIMUM LOAD 56070 56070-0041 1
LABEL-WARNING,MAX LOAD 40KG 56071 56071-0200 1
COLLAR 92152 92152-0823 2
COLLAR 92152A 92152-0896 2
COLLAR 92152B 92152-0897 2
BOLT,FLANGED,8X70 92153 92153-0748 2
BOLT,FLANGED,8X14 92153A 92153-0931 4
BOLT,FLANGED,10X44 92153B 92153-1374 2
BOLT,FLANGED,8X50 92153C 92153-1755 2
BOLT,FLANGED,10X16 92154 92154-0916 2
WASHER,10.3X23X1.6 92200 92200-0724 4
WASHER,8.5X20X1.6 92200A 92200-0774 4
BOLT-FLANGED,10X16 130 130CA1016 4
